Shelf Edge Digital Bar LCD Displays

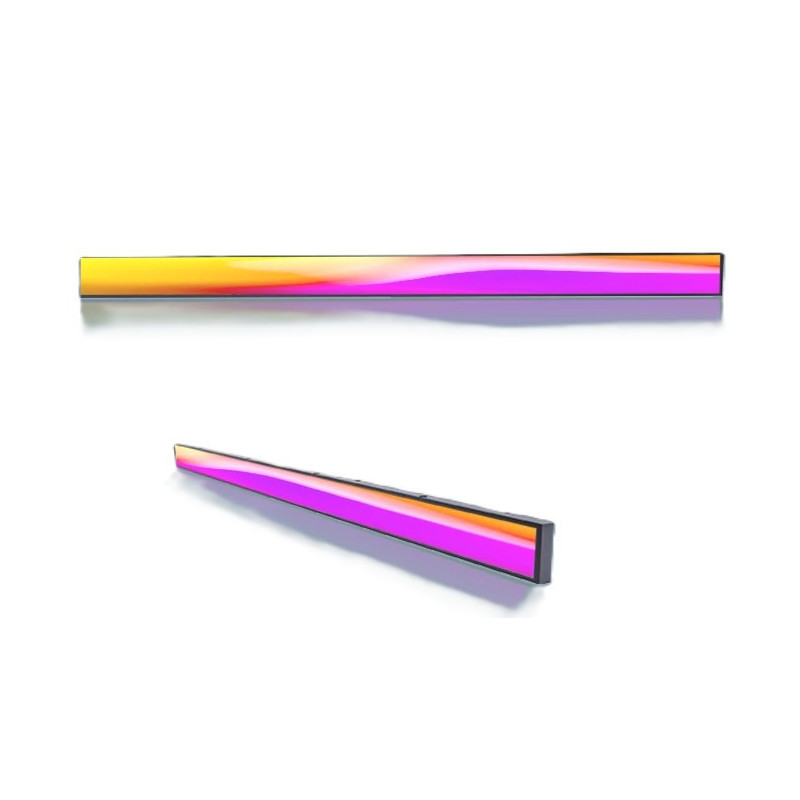

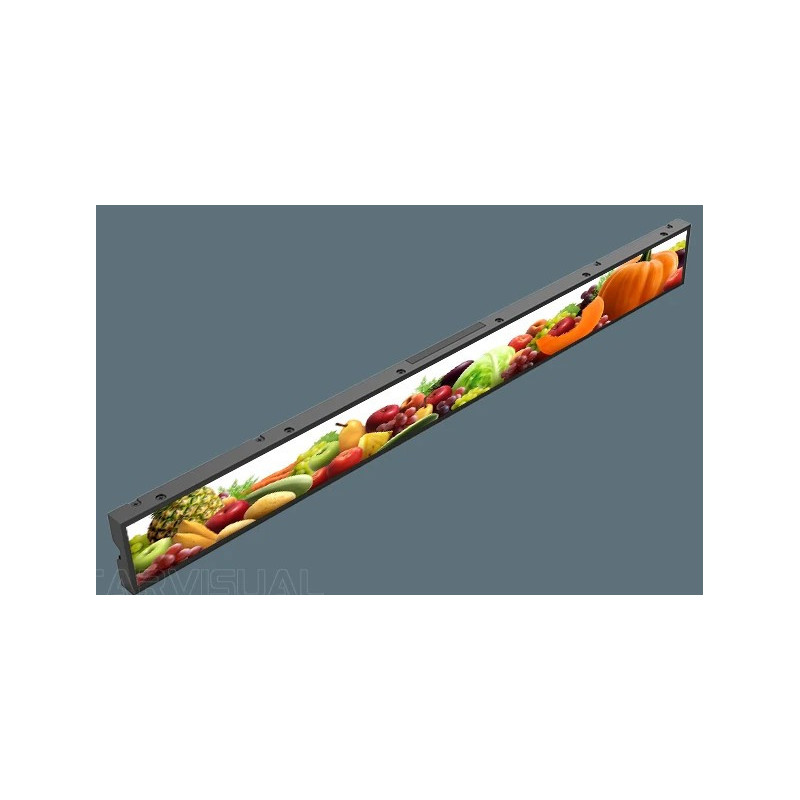

Bar-type screens, also known as ultra-wide displays or stretched displays, are an innovative format in the digital signage world. Starvisual Shelf Edge Digital Bar LCD Display series features a slender, narrow, and ultra-stretched design, specifically engineered for compact digital signage spaces and cargo shelf-edge applications.
These extended LCD panels provide a variety of creative ways to capture attention. Available in multiple sizes, configurations, and aspect ratios, including sunlight-readable options with high brightness, these displays are a versatile solution for both industrial and commercial advertising.

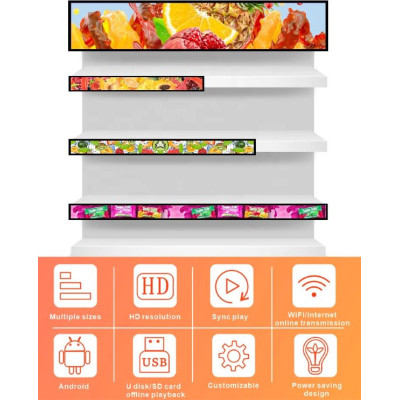

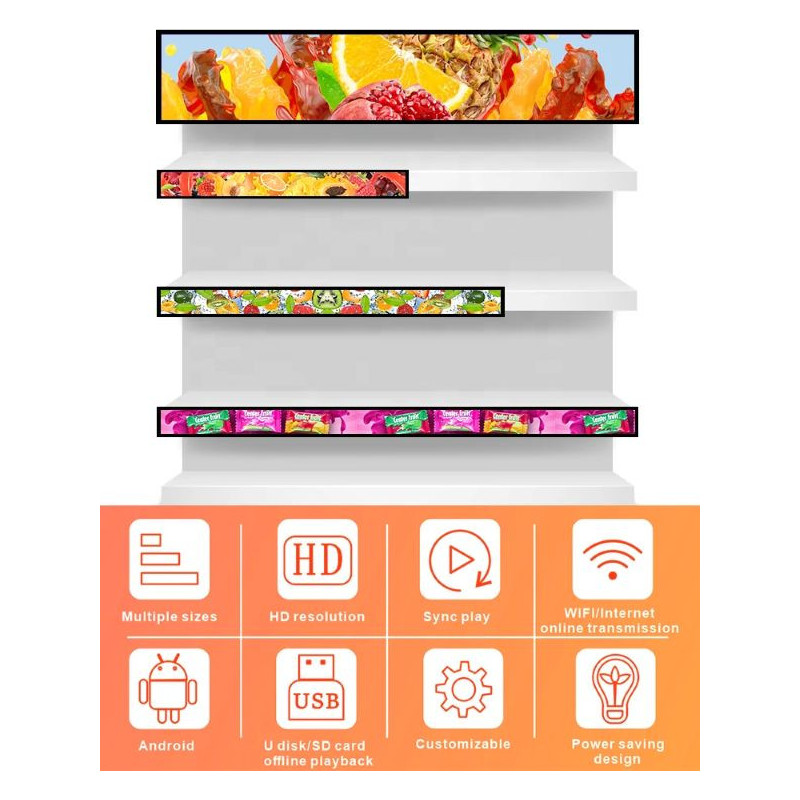

Key Features:
Slim and lightweight design for easy installation in tight spaces

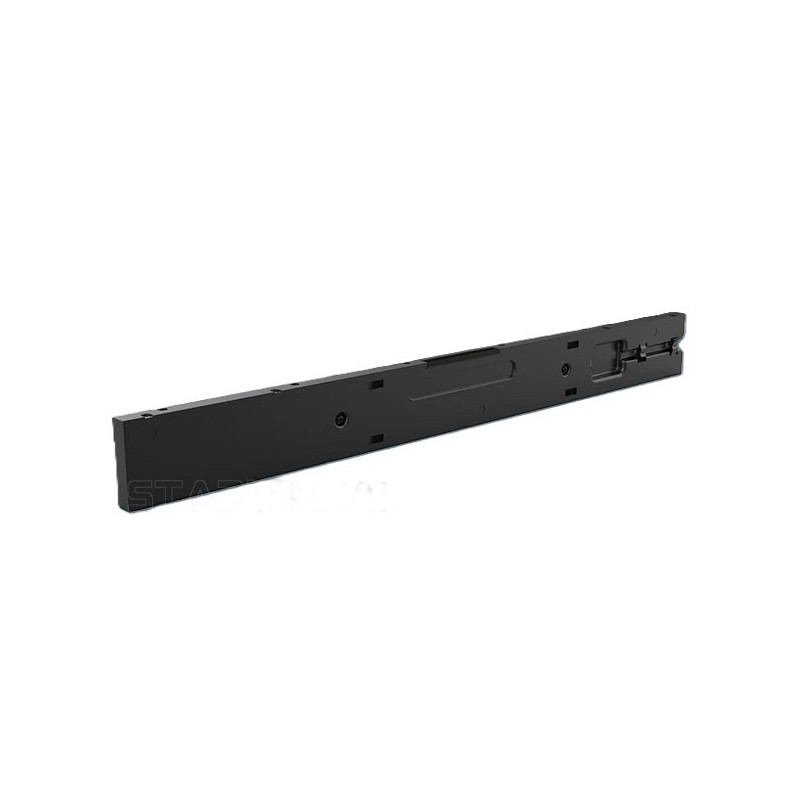

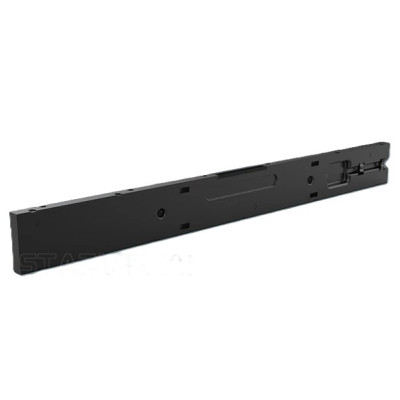

Flexible mounting options, allowing horizontal or vertical alignment
Customizable content strategies, from displaying item prices to combining multiple units into a single virtual screen
Durable and reliable, supporting continuous operation in demanding environments
Variety of sizes and shapes, enabling a unique and personalized shopping experience
Applications:
Our Shelf Edge Digital Bar LCD Displays are used in retail, advertising, public transportation, commercial buildings, quick service restaurants, and numerous other industries worldwide. They offer enhanced customer engagement by delivering clear, eye-catching content in the most compact and specialized digital signage locations.

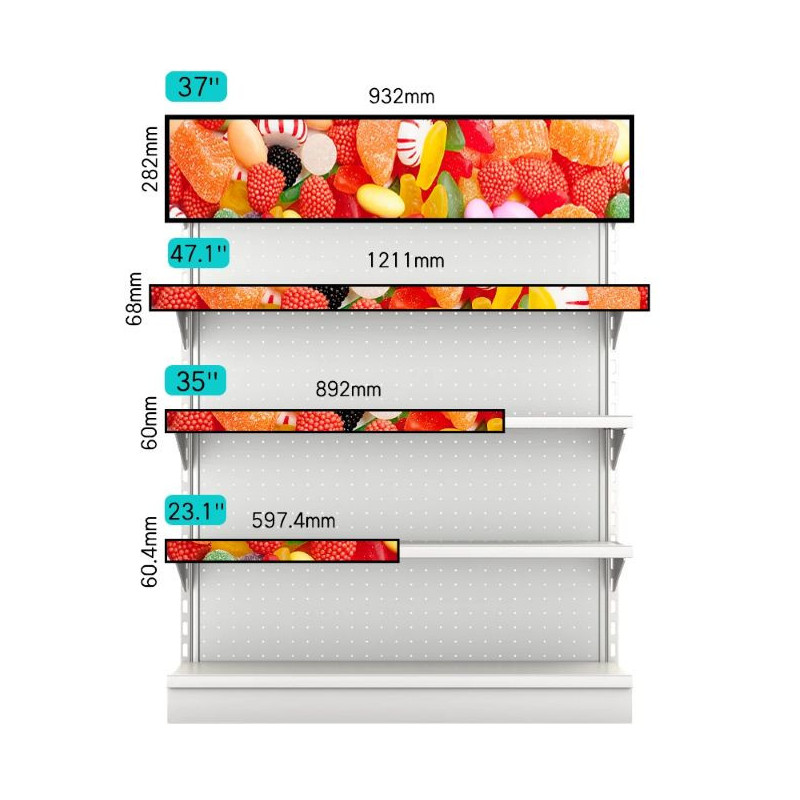

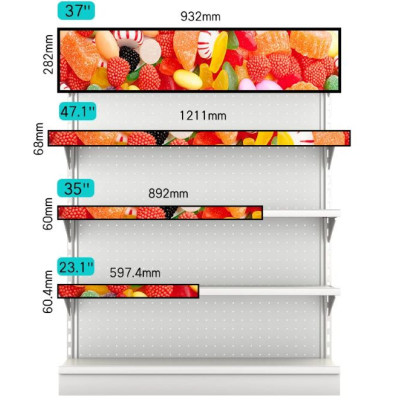

| Specification | 23.1″ | 35″ | 37″ | 47.1″ |
|---|---|---|---|---|
| Panel | ||||
| Display Size (inch) | 23.1 | 35 | 37 | 47.1 |
| Resolution | 1920 × 158 (12:1) | 2880 × 158 (18:1) | 1920 × 540 (16:4.5) | 3840 × 160 (24:1) |
| Active Display Area (mm) | 585.6 × 48.19 | 878.4 × 48.19 | 899.7 × 253.04 | 1196.16 × 49.84 |
| Aspect Ratio | 12:1 | 18:1 | 16:4.5 | 24:1 |
| Brightness (cd/m²) | 350–500 | 350–500 | 350–700 | 350–700 |
| Contrast Ratio (Typ.) | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| Viewing Angle (H/V) | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° |
| Color Depth | 16.7M | 16.7M | 16.7M | 16.7M |
| Pixel Pitch (mm) | 0.283 × 0.283 | 0.283 × 0.283 | 0.330 × 0.330 | 0.330 × 0.330 |
| Response Time (G-to-G) | 6.5 ms | 6.5 ms | 6.5 ms | 6.5 ms |
| Operation Hours | 24/7 | 24/7 | 24/7 | 24/7 |
| Sound | 5W, 8Ω (2 sets), Dual-channel stereo audio output | 5W, 8Ω (2 sets), Dual-channel stereo audio output | 5W, 8Ω (2 sets), Dual-channel stereo audio output | 5W, 8Ω (2 sets), Dual-channel stereo audio output |
| Power | ||||
| Power Type | Internal | Internal | Internal | Internal |
| Power Supply | AC 100–240 V~, 50/60 Hz | AC 100–240 V~, 50/60 Hz | AC 100–240 V~, 50/60 Hz | AC 100–240 V~, 50/60 Hz |
| Maximum Power Consumption (W/h) | 20 | 20 | 25 | 30 |
| Sleep Mode | <0.5 W | <0.5 W | <0.5 W | <0.5 W |
| Off Mode | <0.5 W | <0.5 W | <0.5 W | <0.5 W |
| Mechanical Specifications | ||||
| Protection Glass | N/A | N/A | N/A | N/A |
| Stand Type | Wall mount | Wall mount | Wall mount | Wall mount |
| Environmental Conditions | ||||
| Operating Temperature | 0°C–45°C | 0°C–45°C | 0°C–45°C | 0°C–45°C |
| Storage Temperature | -10°C–55°C | -10°C–55°C | -10°C–55°C | -10°C–55°C |
| Operating Humidity | 10–80% | 10–80% | 10–80% | 10–80% |
| Storage Humidity | 5–95% | 5–95% | 5–95% | 5–95% |
| OS / Media Player | ||||
| Processor | PX30, 1.8 GHz, Octa-core | PX30, 1.8 GHz, Octa-core | PX30, 1.8 GHz, Octa-core | PX30, 1.8 GHz, Octa-core |
| RAM | 1 GB DDR3 | 1 GB DDR3 | 1 GB DDR3 | 1 GB DDR3 |
| Built-in Memory | 8 GB FLASH | 8 GB FLASH | 8 GB FLASH | 8 GB FLASH |
| USB Ports | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST |
| LAN | 10M/100M Ethernet (Network version only) | 10M/100M Ethernet (Network version only) | 10M/100M Ethernet (Network version only) | 10M/100M Ethernet (Network version only) |
| External Memory | 8 GB SD card (up to 32 GB) | 8 GB SD card (up to 32 GB) | 8 GB SD card (up to 32 GB) | 8 GB SD card (up to 32 GB) |
| Multimedia Formats | Video: MPG, AVI, MP4, RM, RMVB, TS; Audio: MP3, WMA; Image: JPG, GIF, BMP, PNG | Same | Same | Same |
| Media Resolution Support | 1920 × 540 | 1920 × 540 | 1920 × 540 | 1920 × 540 |
| Wi-Fi | 802.11 b/g/n (Network version only) | 802.11 b/g/n (Network version only) | 802.11 b/g/n (Network version only) | 802.11 b/g/n (Network version only) |
| Operating System | Android 8.0 / 9.0 | Android 8.0 / 9.0 | Android 8.0 / 9.0 | Android 8.0 / 9.0 |
| Certification | CE, RoHS | CE, RoHS | CE, RoHS | CE, RoHS |
| Accessories Included | Scheduling software, Remote control, Key, Power cable, SD card | Same | Same | Same |
| Quality Assurance | 1 Year | 1 Year | 1 Year | 1 Year |
| Packaging | Carton box / honeycomb box + wooden case | Same | Same | Same |
