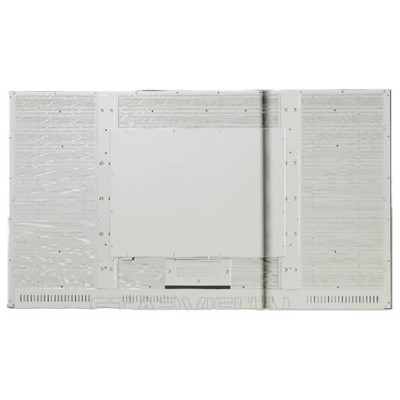

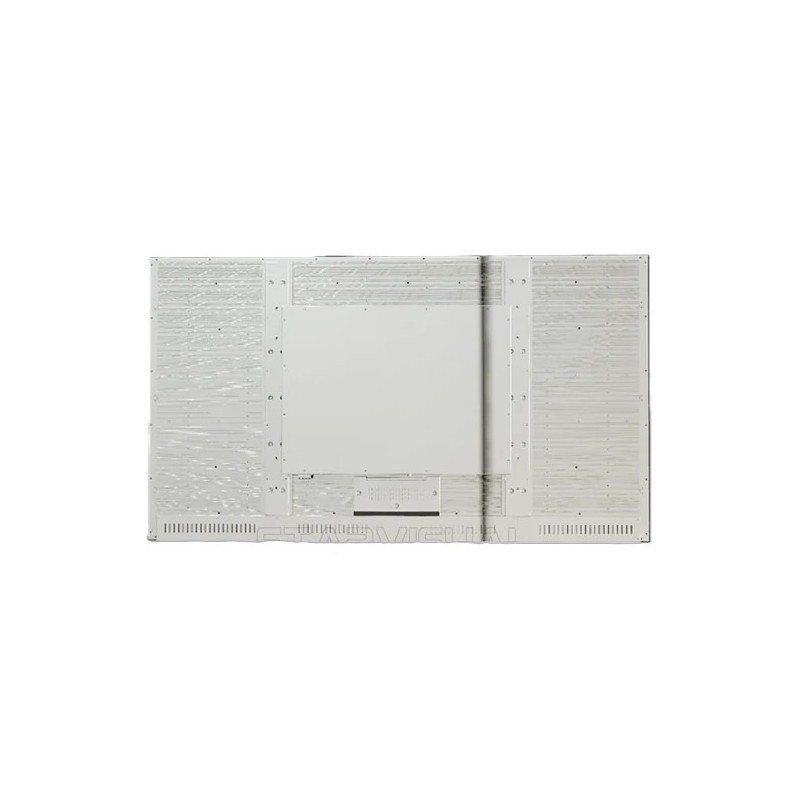

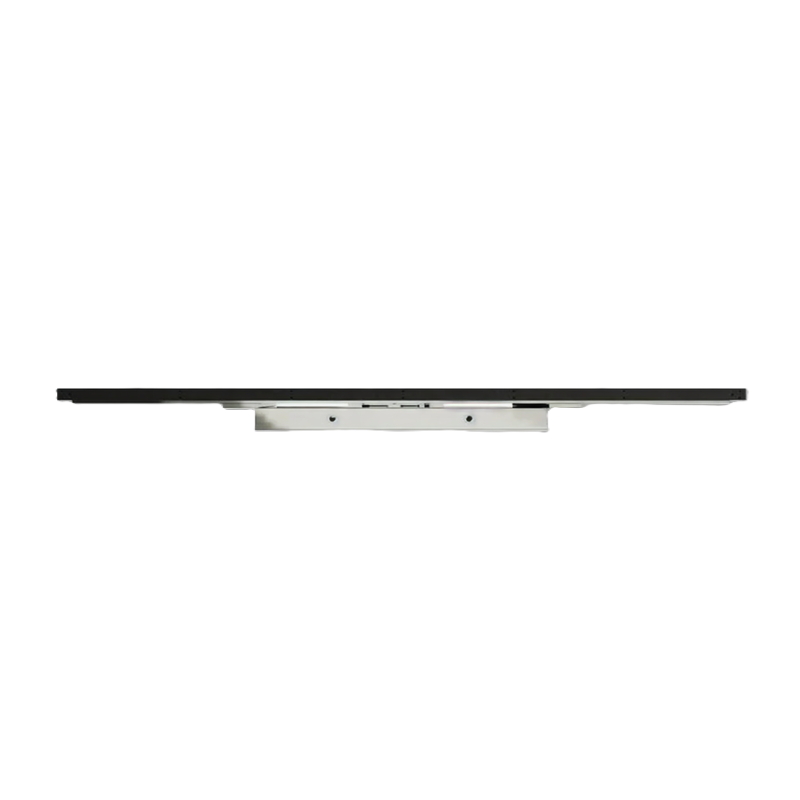

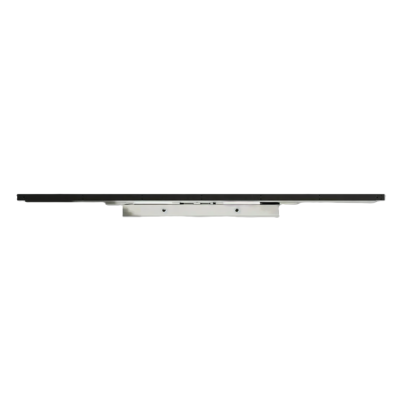

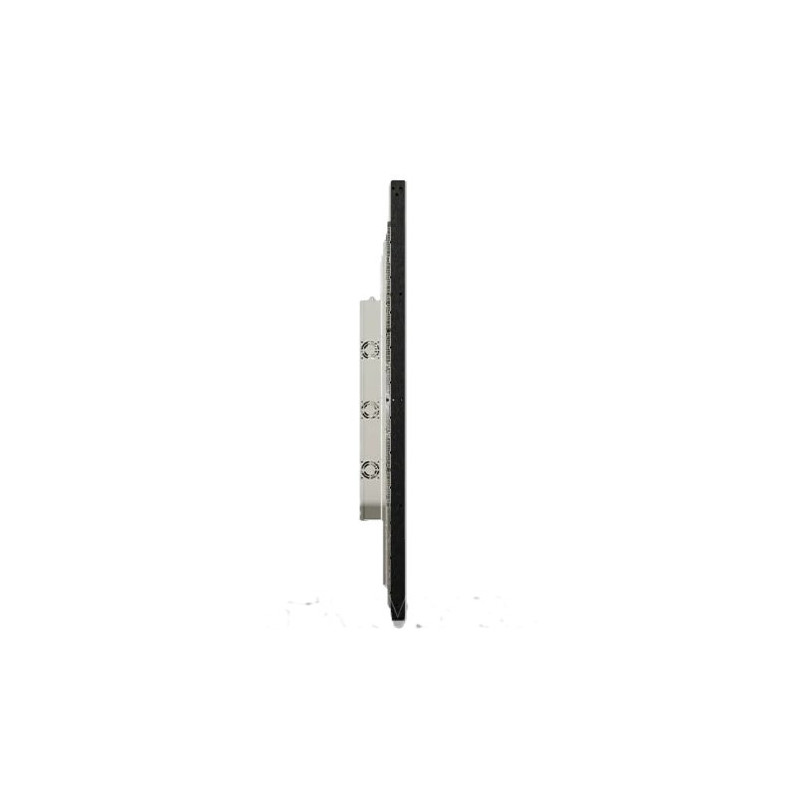

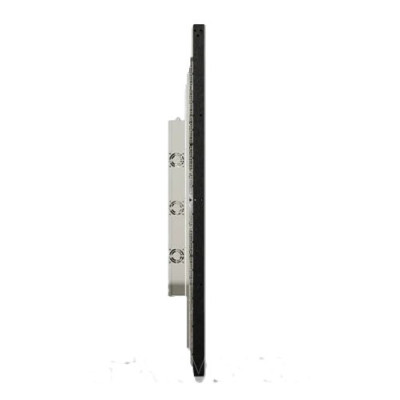

Industrial High Brightness Open Frame Panel
High-Brightness Open Frame Panel
Starvisual High-Brightness Open Frame Panel delivers outstanding brightness and performance, making it ideal for demanding outdoor digital signage applications. Unlike traditional displays, this panel comes with all essential electronic components but without an enclosure or bezel, giving you complete flexibility to integrate it into your own custom housing.
Key Advantages:
-
Customizable Integration – Easily embed the panel into your existing enclosures and design your own bezel to suit your project.
-
High Brightness Performance – Optimized for visibility in direct sunlight and challenging outdoor environments.
-
Flexible Applications – Perfect for outdoor digital signage, kiosks, and custom display solutions.
The open frame design provides maximum adaptability, allowing you to create high-impact signage while maintaining control over the final appearance and enclosure design.
Technical Specifications – High-Brightness Open Frame Display (Model: SD411-OF-DS)
| Category | Specification | 55″ | 65″ | 75″ |
|---|---|---|---|---|
| Panel | Display Size (inch) | 55″ | 65″ | 75″ |
| Resolution | 1920×1080 (16:9) | 1920×1080 (16:9) | 1920×1080 (16:9) | |
| Active Display Area (mm) | 1209.6 × 680.4 | 1428.5 × 803.5 | 1650.3 × 928 | |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | |
| Brightness (cd/m²) | 3000 nit | 3000 nit | 3000 nit | |
| Contrast Ratio (Typ.) | 1000:1 | 1000:1 | 1000:1 | |
| Viewing Angle (H/V) | 178°/178° | 178°/178° | 178°/178° | |
| Color | 16.7M | 16.7M | 16.7M | |
| Response Time (G-to-G) | 6ms | 6ms | 6ms | |
| Operation Hour | 24/7 | 24/7 | 24/7 | |
| Sound | Loud Speaker | 5W, 8Ω × 2 sets | 5W, 8Ω × 2 sets | 5W, 8Ω × 2 sets |
| Power | Type | Internal | Internal | Internal |
| Power Supply | AC 100–240V (±10%), 50/60Hz | AC 100–240V (±10%), 50/60Hz | AC 100–240V (±10%), 50/60Hz | |
| Max Power Consumption (W/h) | 180 | 210 | 240 | |
| Sleep Mode | < 0.5W | < 0.5W | < 0.5W | |
| Off Mode | < 0.5W | < 0.5W | < 0.5W | |
| Mechanical Specs | Protection Glass | YES | YES | YES |
| Stand Type | Floor-Standing | Floor-Standing | Floor-Standing | |
| Environmental | Operating Temperature | -10°C ~ 40°C | -10°C ~ 40°C | -10°C ~ 40°C |
| Storage Temperature | -20°C ~ 110°C | -20°C ~ 110°C | -20°C ~ 110°C | |
| Operating Humidity | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | |
| Storage Humidity | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | |
| OS & Monitor Solution | Chipset | NT68676 (UFG) | NT68676 (UFG) | NT68676 (UFG) |
| OS Language | Chinese, English, French, German, Italian, Spanish, etc. | Chinese, English, French, German, Italian, Spanish, etc. | Chinese, English, French, German, Italian, Spanish, etc. | |
| Resolution Ratio | 1920×1080 | 1920×1080 | 1920×1080 | |
| Refresh Rate | 60Hz (Max) | 60Hz (Max) | 60Hz (Max) | |
| Video Input | HDMI 1.4 × 1, DVI × 1, PC-RGB × 1 | HDMI 1.4 × 1, DVI × 1, PC-RGB × 1 | HDMI 1.4 × 1, DVI × 1, PC-RGB × 1 | |
| Certification | Safety | CE | CE | CE |
| Accessories | Included | Scheduling software, Remote control, Key, Power cable, SD card, Wall mount bracket | Scheduling software, Remote control, Key, Power cable, SD card, Wall mount bracket | Scheduling software, Remote control, Key, Power cable, SD card, Wall mount bracket |
| Quality Assurance | Warranty | 1 Year | 1 Year | 1 Year |
| Packaging | Type | Carton box / Honeycomb box + Wooden case | Carton box / Honeycomb box + Wooden case | Carton box / Honeycomb box + Wooden case |
SD411-OF-DS
