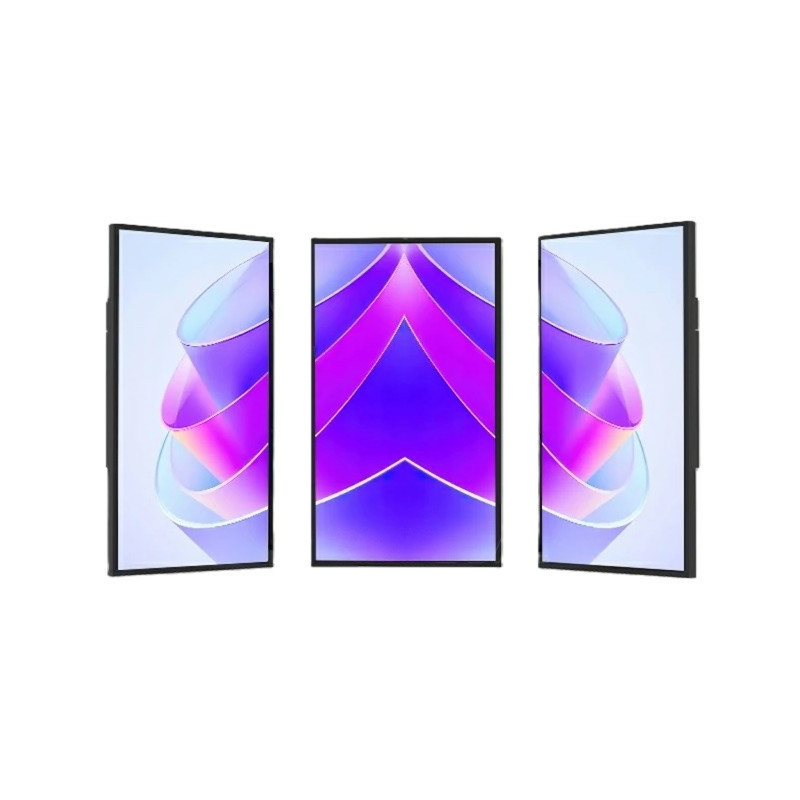

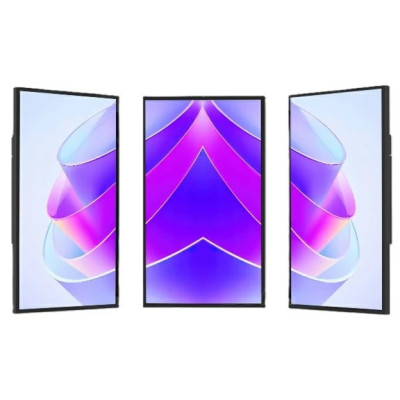

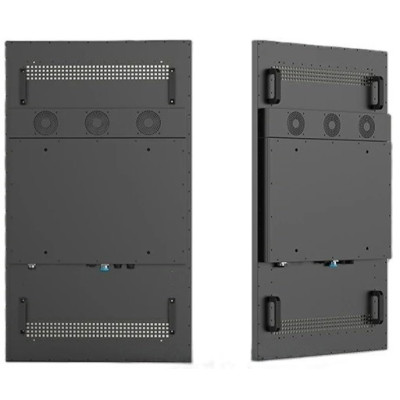

Smart Outdoor IP66 Ultra Thin Digital Display
Starvisual Smart Outdoor Ultra-Thin Digital Display Key Features are as follows:
Shell design: The shell is made of 1.0-1.5mm aluminium plate, sprayed with Aksu outdoor special powder, and has outdoor corrosion protection for more than 7 years.
Waterproof design: The shell structure is fully enclosed, and the control box is designed with waterproof grooves and waterproof mazes to meet the IP66 protection level.
Dustproof design: The shell structure is fully enclosed and dust cannot enter the inside of the machine.
High-transmittance glass: The front protective glass of the whole machine screen is 5mm AG etched tempered glass. Reduce reflection.

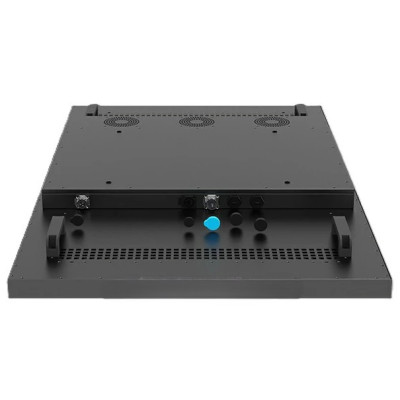

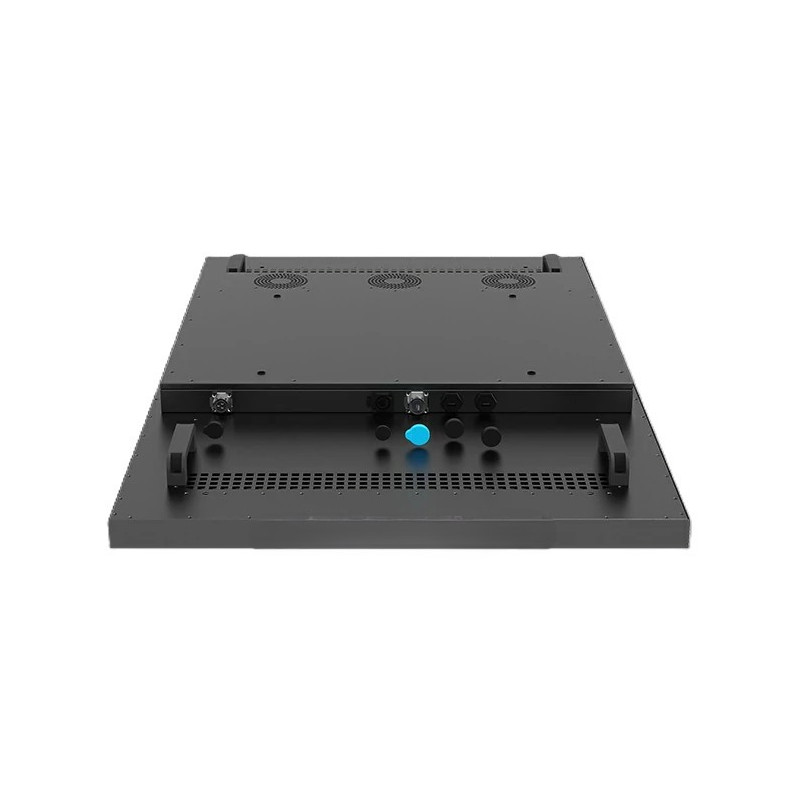

Maintenance: The machine adopts a modular design for easy installation and maintenance.
Anti-theft design: The base/bracket adopts an internal locking design to prevent the screws from being removed from the outside to move the machine and equipment, truly achieving safety and anti-theft

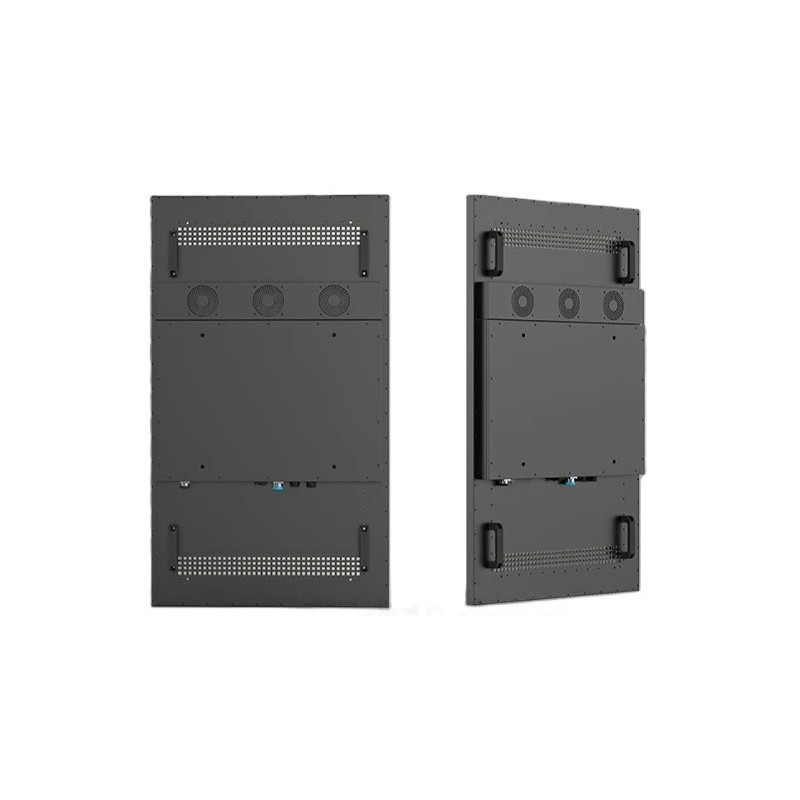

Mounting frame: The whole machine pendant is designed with installation fixing holes for fixing on the wall or other objects. It can be customized according to customer requirements and equipped with accessories. You can install it by drilling holes directly after receiving the machine.
Technical Specifications – Model No. SD309T-OFS-DS
| Category | Specification | 32″ | 43″ | 49″ | 55″ |
|---|---|---|---|---|---|
| Panel | Display Size (inch) | 32″ | 43″ | 49″ | 55″ |
| Resolution | 1920×1080 (16:9) | 1920×1080 (16:9) | 1920×1080 (16:9) | 1920×1080 (16:9) | |
| Active Display Area (mm) | 700.5(H) × 394.8(V) | 941(H) × 530(V) | 1073.5(H) × 603.0(V) | 1209.6(H) × 680.4(V) | |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | |
| Brightness (cd/m²) | 2000nit | 2500nit | 2500nit | 2500nit | |
| Contrast Ratio (Typ.) | 2000:1 | 2000:1 | 2000:1 | 2000:1 | |
| Viewing Angle (H/V) | 178°/178° | 178°/178° | 178°/178° | 178°/178° | |
| Color | 16.7M | 16.7M | 16.7M | 16.7M | |
| Response Time (G-to-G) | 6ms | 6ms | 6ms | 6ms | |
| Operation Hour | 24/7 | 24/7 | 24/7 | 24/7 | |
| Sound | Loudspeaker | 5W, 8Ω × 2 sets | 5W, 8Ω × 2 sets | 5W, 8Ω × 2 sets | 5W, 8Ω × 2 sets |
| Power | Type | Internal | Internal | Internal | Internal |
| Power Supply | AC 100–240V (±10%), 50/60 Hz | AC 100–240V (±10%), 50/60 Hz | AC 100–240V (±10%), 50/60 Hz | AC 100–240V (±10%), 50/60 Hz | |
| Power Consumption (Max) | 130W | 180W | 260W | 300W | |
| Sleep Mode | < 0.5W | < 0.5W | < 0.5W | < 0.5W | |
| Off Mode | < 0.5W | < 0.5W | < 0.5W | < 0.5W | |
| Mechanical Specs | Protection Glass | AR anti-reflection glass | AR anti-reflection glass | AR anti-reflection glass | AR anti-reflection glass |
| Housing Lifetime | 7 years | 7 years | 7 years | 7 years | |
| IP Rating | IP66 | IP66 | IP66 | IP66 | |
| Anti-hazard Classification | IK10 | IK10 | IK10 | IK10 | |

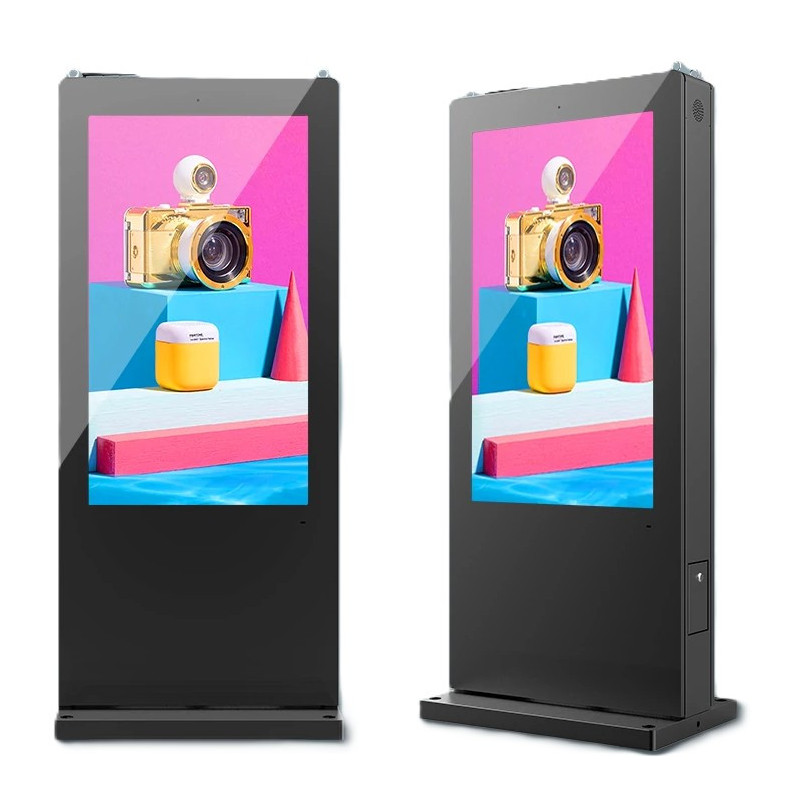

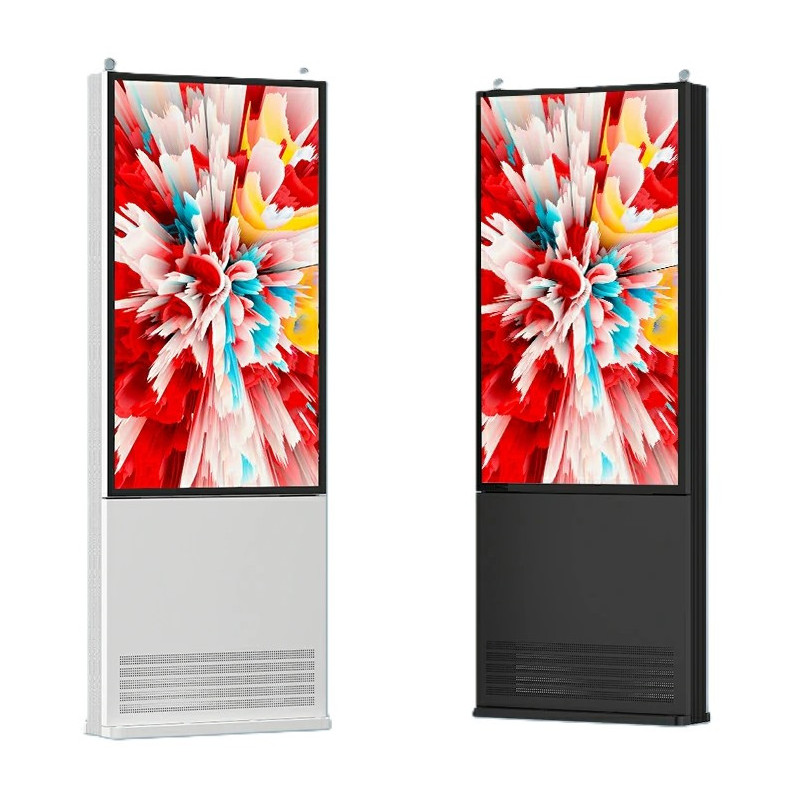

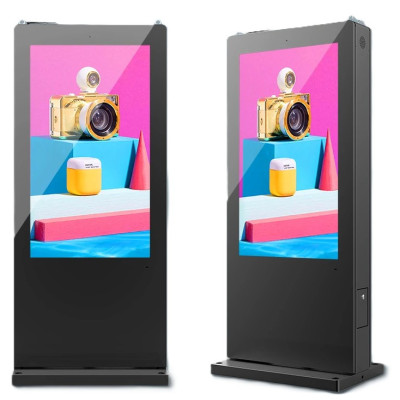

| Stand Type | Wall-mounted / Ceiling / Freestanding | Wall-mounted / Ceiling / Freestanding | Wall-mounted / Ceiling / Freestanding | Wall-mounted / Ceiling / Freestanding | |
| Environmental | Operating Temp. | -30°C ~ 50°C | -30°C ~ 50°C | -30°C ~ 50°C | -30°C ~ 50°C |
| Storage Temp. | -30°C ~ 50°C | -30°C ~ 50°C | -30°C ~ 50°C | -30°C ~ 50°C | |
| Operating Humidity | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | |
| Storage Humidity | 5% ~ 98% | 5% ~ 98% | 5% ~ 98% | 5% ~ 98% | |
| Cooling System | Turbofan & cross-flow fan / Air conditioning (optional) | Turbofan & cross-flow fan / Air conditioning (optional) | Turbofan & cross-flow fan / Air conditioning (optional) | Turbofan & cross-flow fan / Air conditioning (optional) | |
| OS & Media Player | Processor | Rockchip® RK3568 (1.8GHz, Quad-core) | Same | Same | Same |
| RAM | 2GB | 2GB | 2GB | 2GB | |
| Flash | 16GB EMMC | 16GB EMMC | 16GB EMMC | 16GB EMMC | |
| USB | USB2.0 HOST × 2 | USB2.0 HOST × 2 | USB2.0 HOST × 2 | USB2.0 HOST × 2 | |
| LAN | 10M/100M Ethernet (network version only) | Same | Same | Same | |
| External Memory | 8GB SD card (up to 32GB) | Same | Same | Same | |
| Multimedia Support | Video: MPG, AVI, MP4, RM, RMVB, TS Audio: MP3, WMA Image: JPG, GIF, BMP, PNG |
Same | Same | Same | |
| Media Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | |
| Wi-Fi | 802.11 b/g/n (network version only) | Same | Same | Same | |
| Operating System | Android 11 | Android 11 | Android 11 | Android 11 | |
| Certification | Safety | IP66 | IP66 | IP66 | IP66 |
| Accessories | Included | Scheduling software, Remote control, Key, Power cable, SD card, Wall mount bracket | Same | Same | Same |
| Quality Assurance | Warranty | 1 year | 1 year | 1 year | 1 year |
| Packaging | Type | Carton box / Honeycomb box + Wooden case | Same | Same | Same |
SD309T-OFS-DS
