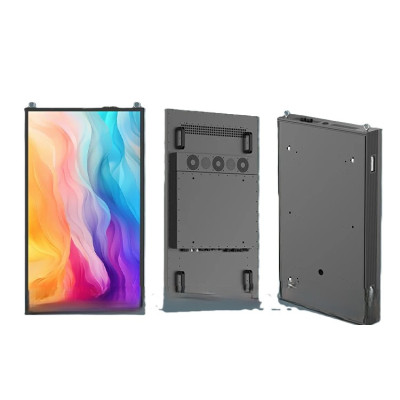

IP66 M Free Wall Mounted Display

IP66 Outdoor M-Free Wall-Mounted Display is engineered for outdoor environments, combining robust construction with advanced technology to deliver exceptional performance in all weather conditions. With a focus on longevity, ease of maintenance, and security, this display is the ideal solution for businesses, public spaces, and high-traffic areas.

  • Durable Shell Design:
    The outer shell is crafted from 1.0-1.5mm aluminum plate, offering superior strength and a lightweight design. Coated with Aksu outdoor-special powder, this coating ensures outstanding outdoor corrosion protection, keeping the unit resilient and visually appealing for over 7 years even in the harshest conditions.
  • Waterproof & Dustproof Protection:
    Engineered to withstand extreme weather, the display boasts a fully enclosed shell structure that is IP66-rated, ensuring it is both waterproof and dustproof. The waterproof grooves and maze-like design in the control box provide extra protection, keeping the display fully operational even in heavy rain or dusty environments.
  • Enhanced Display Durability:
    The front of the screen is protected by 5mm AG etched tempered glass, offering high light transmittance while minimizing reflection for optimal visibility under direct sunlight. This durable glass ensures your display remains clear and sharp, regardless of external lighting conditions.
  • Modular & Easy Maintenance:
    Our design incorporates a modular structure, allowing for quick and easy installation and maintenance. This user-friendly design reduces downtime, ensuring your display is always ready to showcase your content.
  • Anti-Theft Security:
    The internal locking design of the base/bracket prevents unauthorized removal of screws, keeping the machine securely in place. With this innovative anti-theft feature, your investment remains safe and protected, even in high-risk locations.
  • Customizable Mounting Frame:
    Designed for versatility, the mounting frame comes with installation fixing holes, allowing you to easily secure the display to walls or other structures. The display can be customized according to customer needs, with accessories available for a seamless installation. Simply drill holes, and you’re ready to go! With its rugged design, high-performance features, and practical installation process, the IP66 Outdoor M-Free Wall-Mounted Display is the perfect solution for outdoor advertising, public information systems, and much more.

Technical Specifications – Outdoor Display (Model: SD308M-OWM-DS)

Category Specification 32″ 43″ 49″ 55″ 65″ 75″
Panel Display Size (inch) 32″ 43″ 49″ 55″ 65″ 75″
Resolution 1920×1080 1920×1080 1920×1080 1920×1080 3840×2160 3840×2160
Active Display Area (mm) 698.8 × 750.8 942 × 530.4 1075 × 605 1210 × 680.8 1429 × 804 1651.2 × 930.2
Aspect Ratio 16:9 16:9 16:9 16:9 16:9 16:9
Brightness (cd/m²) 3000nit 3000nit 3000nit 3000nit 3000nit 3000nit
Contrast Ratio (Typ.) 1200:1 1200:1 1300:1 1200:1 1100:1 1200:1
Viewing Angle (H/V) 178°/178° 178°/178° 178°/178° 178°/178° 178°/178° 178°/178°
Color 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M
Response Time (G-to-G) 10ms 8ms 8ms 6ms 9ms 8ms
Operation Hour 24/7 24/7 24/7 24/7 24/7 24/7
Sound Loudspeaker 10W, 8Ω × 2 sets 10W, 8Ω × 2 sets 10W, 8Ω × 2 sets 10W, 8Ω × 2 sets 10W, 8Ω × 2 sets 10W, 8Ω × 2 sets
Power Type Internal Internal Internal Internal Internal Internal
Power Supply MEAN WELL IP68 XLG – AC 100–240V (±10%), 50/60 Hz MEAN WELL IP68 XLG – AC 100–240V (±10%), 50/60 Hz MEAN WELL IP68 XLG – AC 100–240V (±10%), 50/60 Hz MEAN WELL IP68 XLG – AC 100–240V (±10%), 50/60 Hz MEAN WELL IP68 XLG – AC 100–240V (±10%), 50/60 Hz MEAN WELL IP68 XLG – AC 100–240V (±10%), 50/60 Hz
Power Consumption (Max W/h) 135 165 189 200 385 470
Sleep Mode < 0.5W < 0.5W < 0.5W < 0.5W < 0.5W < 0.5W
Off Mode < 0.5W < 0.5W < 0.5W < 0.5W < 0.5W < 0.5W
Mechanical Specs Protection Glass 5mm AG 5mm AG 5mm AG 5mm AG 5mm AG 5mm AG
Dimension (W×H×D mm) 750.8 × 445.4 × 86 994 × 582.4 × 86 1127 × 657 × 86 1262 × 732.8 × 86 1481 × 856 × 86 1703.2 × 982.2 × 86
Package Size (mm) 885 × 205 × 580 1125 × 205 × 710 1270 × 205 × 785 1400 × 205 × 860 1620 × 205 × 990 1845 × 205 × 1110
Net Weight (kg) 16.5 25.9 31 36.8 49.5 65.5
Gross Weight (kg) 20.75 31.45 38.1 44.5 60.5 83.5
Environmental Screen TNI 100°C 105°C 110°C 110°C 110°C 110°C
Operating Temp. -25°C ~ 55°C -25°C ~ 55°C -25°C ~ 55°C -25°C ~ 55°C -25°C ~ 55°C -25°C ~ 55°C
Operating Humidity 10% ~ 80% 10% ~ 80% 10% ~ 80% 10% ~ 80% 10% ~ 80% 10% ~ 80%
Storage Humidity 5% ~ 95% 5% ~ 95% 5% ~ 95% 5% ~ 95% 5% ~ 95% 5% ~ 95%
OS & Media Player Processor RK3568 (2.0 GHz Octa-core) RK3568 (2.0 GHz Octa-core) RK3568 (2.0 GHz Octa-core) RK3568 (2.0 GHz Octa-core) RK3568 (2.0 GHz Octa-core) RK3568 (2.0 GHz Octa-core)
RAM 4GB 4GB 4GB 4GB 4GB 4GB
Flash 32GB 32GB 32GB 32GB 32GB 32GB
USB USB2.0 HOST × 2 USB2.0 HOST × 2 USB2.0 HOST × 2 USB2.0 HOST × 2 USB2.0 HOST × 2 USB2.0 HOST × 2
LAN 10M/100M Ethernet (network version only) 10M/100M Ethernet (network version only) 10M/100M Ethernet (network version only) 10M/100M Ethernet (network version only) 10M/100M Ethernet (network version only) 10M/100M Ethernet (network version only)
External Memory 16GB/32GB/64GB 16GB/32GB/64GB 16GB/32GB/64GB 16GB/32GB/64GB 16GB/32GB/64GB 16GB/32GB/64GB
Multimedia Support Video: MPG, AVI, MP4, RM, RMVB, TS
Audio: MP3, WMA
Image: JPG, GIF, BMP, PNG
Video: MPG, AVI, MP4, RM, RMVB, TS
Audio: MP3, WMA
Image: JPG, GIF, BMP, PNG
Video: MPG, AVI, MP4, RM, RMVB, TS
Audio: MP3, WMA
Image: JPG, GIF, BMP, PNG
Video: MPG, AVI, MP4, RM, RMVB, TS
Audio: MP3, WMA
Image: JPG, GIF, BMP, PNG
Video: MPG, AVI, MP4, RM, RMVB, TS
Audio: MP3, WMA
Image: JPG, GIF, BMP, PNG
Video: MPG, AVI, MP4, RM, RMVB, TS
Audio: MP3, WMA
Image: JPG, GIF, BMP, PNG
Media Resolution 1920×1080 1920×1080 1920×1080 1920×1080 3840×2160 3840×2160
Wi-Fi 802.11 b/g/n (network version only) 802.11 b/g/n (network version only) 802.11 b/g/n (network version only) 802.11 b/g/n (network version only) 802.11 b/g/n (network version only) 802.11 b/g/n (network version only)
Operating System Android 11 Android 11 Android 11 Android 11 Android 11 Android 11
Certification Safety CE, ROHS, IP66, PSE CE, ROHS, IP66, PSE CE, ROHS, IP66, PSE CE, ROHS, IP66, PSE CE, ROHS, IP66, PSE CE, ROHS, IP66, PSE
Accessories Included Scheduling software, Remote control, Key, Power cable, SD card Scheduling software, Remote control, Key, Power cable, SD card Scheduling software, Remote control, Key, Power cable, SD card Scheduling software, Remote control, Key, Power cable, SD card Scheduling software, Remote control, Key, Power cable, SD card Scheduling software, Remote control, Key, Power cable, SD card
Quality Assurance Warranty 1 year (2–3 years optional) 1 year (2–3 years optional) 1 year (2–3 years optional) 1 year (2–3 years optional) 1 year (2–3 years optional) 1 year (2–3 years optional)
Packaging Type Carton box / Honeycomb box Carton box / Honeycomb box Carton box / Honeycomb box Carton box / Honeycomb box Carton box / Honeycomb box Carton box / Honeycomb box

SD308M-OWM-DS
