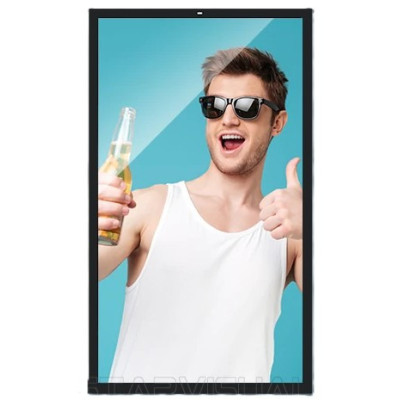

Slim IP66 Outdoor Waterproof Smart Digital Signage Kiosk
Ultra-Slim IP66 Outdoor Waterproof Smart Digital Signage Kiosk
As demand grows for slimmer, brighter, and more visually striking outdoor digital signage, our team developed the IP66 Outdoor Waterproof Smart Digital Signage Kiosk to meet modern customer needs.
This advanced solution features:
-

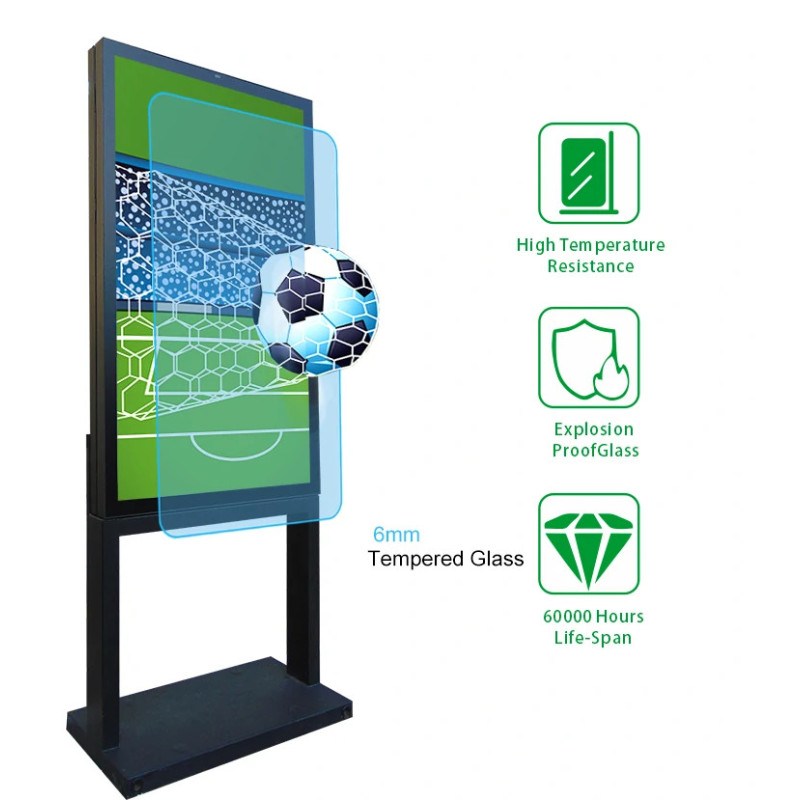

Ultra-High Protection & Durability – IP66-rated housing and IK10 explosion-proof certification ensure long-lasting performance in any outdoor environment.
-
Ultra-Slim, High-Impact Design – Super-narrow 38mm frame and 98mm ultra-thin profile maximize screen visibility, with a 96% display-to-body ratio for a stunning visual effect.
-
Advanced Optical Bonding Technology – Enhances screen clarity, reduces glare, and improves brightness for superior visibility, even in direct sunlight.
-
High-Temperature Resistance – Industrial-grade high-brightness display ensures reliable operation under extreme temperatures.
Compared to standard outdoor units, this kiosk offers superior design, brightness, durability, and maintenance efficiency, making it one of the most popular choices for modern outdoor digital signage.
Technical Specifications – Outdoor Digital Signage (Model: SD308S-OFS-DS)
| Category | Specification | 32″ | 43″ | 49″ | 55″ |
|---|---|---|---|---|---|
| Panel | Display Size (inch) | 32″ | 43″ | 49″ | 55″ |
| Resolution | 1920×1080 (16:9) | 1920×1080 (16:9) | 1920×1080 (16:9) | 1920×1080 (16:9) | |
| Active Display Area (mm) | 700.5 × 394.8 | 941 × 530 | 1073.5 × 603 | 1209.6 × 680.4 | |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | |
| Brightness (cd/m²) | 2000 nit | 2500 nit | 2500 nit | 2500 nit | |
| Contrast Ratio (Typ.) | 2000:1 | 2000:1 | 2000:1 | 2000:1 | |
| Viewing Angle (H/V) | 178°/178° | 178°/178° | 178°/178° | 178°/178° | |
| Color | 16.7M | 16.7M | 16.7M | 16.7M | |
| Response Time (G-to-G) | 6ms | 6ms | 6ms | 6ms | |
| Operation Hour | 24/7 | 24/7 | 24/7 | 24/7 | |
| Sound | Loud Speaker | 5W, 8Ω × 2 sets | 5W, 8Ω × 2 sets | 5W, 8Ω × 2 sets | 5W, 8Ω × 2 sets |
| Power | Type | Internal | Internal | Internal | Internal |
| Power Supply | AC 100 – 240 V~ (±10%), 50/60 Hz | AC 100 – 240 V~ (±10%), 50/60 Hz | AC 100 – 240 V~ (±10%), 50/60 Hz | AC 100 – 240 V~ (±10%), 50/60 Hz | |
| Max Power Consumption (W/h) | 130W | 180W | 260W | 300W | |
| Sleep Mode | < 0.5W | < 0.5W | < 0.5W | < 0.5W | |
| Off Mode | < 0.5W | < 0.5W | < 0.5W | < 0.5W | |
| Mechanical Specs | Protection Glass | AR anti-reflection glass | AR anti-reflection glass | AR anti-reflection glass | AR anti-reflection glass |
| Housing Lifetime | 8 years | 8 years | 8 years | 8 years | |
| IP Rate | IP66 | IP66 | IP66 | IP66 | |
| Anti-hazard Classification | IK10 | IK10 | IK10 | IK10 | |

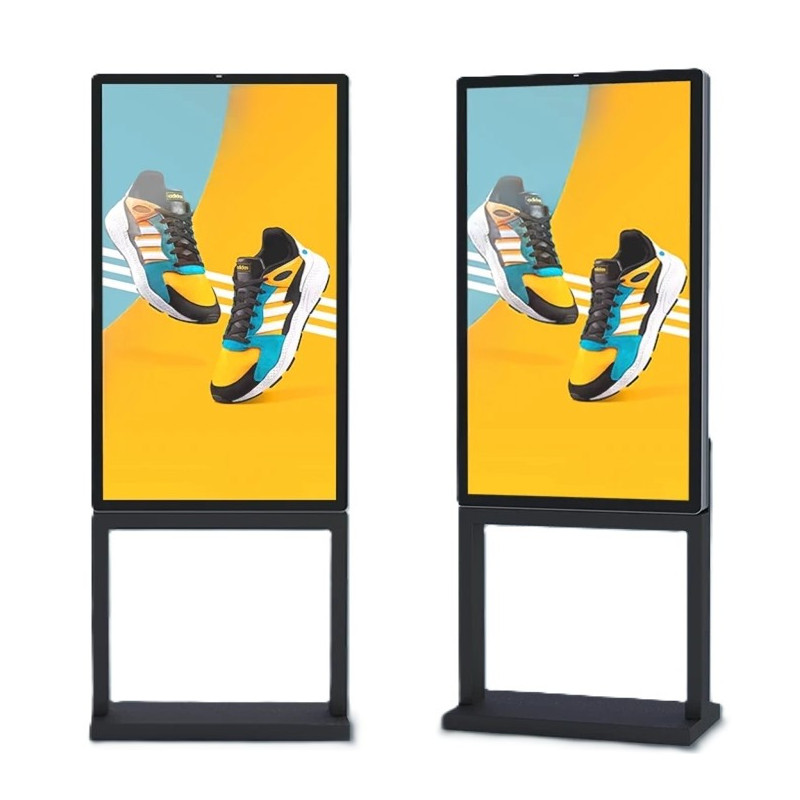

| Stand Type | Wall-mounted / Ceiling / Freestanding | Wall-mounted / Ceiling / Freestanding | Wall-mounted / Ceiling / Freestanding | Wall-mounted / Ceiling / Freestanding | |
| Environmental | Operating Temperature | -30°C ~ 80°C | -30°C ~ 80°C | -30°C ~ 80°C | -30°C ~ 80°C |
| Storage Temperature | -30°C ~ 55°C | -30°C ~ 55°C | -30°C ~ 55°C | -30°C ~ 55°C | |
| Operating Humidity | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | |
| Storage Humidity | 5% ~ 98% | 5% ~ 98% | 5% ~ 98% | 5% ~ 98% | |
| Cooling System | Powerful Turbofan & cross-flow fan / Air condition (Optional) | Powerful Turbofan & cross-flow fan / Air condition (Optional) | Powerful Turbofan & cross-flow fan / Air condition (Optional) | Powerful Turbofan & cross-flow fan / Air condition (Optional) | |
| OS & Media Player | Processor | Rockchip® RK3288 (1.8GHz, Quad-core) | Rockchip® RK3288 (1.8GHz, Quad-core) | Rockchip® RK3288 (1.8GHz, Quad-core) | Rockchip® RK3288 (1.8GHz, Quad-core) |
| RAM | 2GB | 2GB | 2GB | 2GB | |
| Flash | 8GB eMMC | 8GB eMMC | 8GB eMMC | 8GB eMMC | |
| USB | USB2.0 HOST × 2 | USB2.0 HOST × 2 | USB2.0 HOST × 2 | USB2.0 HOST × 2 | |
| LAN | 10M/100M Ethernet (network version only) | 10M/100M Ethernet (network version only) | 10M/100M Ethernet (network version only) | 10M/100M Ethernet (network version only) | |
| External Memory | 8GB SD card (up to 32GB) | 8GB SD card (up to 32GB) | 8GB SD card (up to 32GB) | 8GB SD card (up to 32GB) | |
| Multimedia Support | Video: MPG, AVI, MP4, RM, RMVB, TS Audio: MP3, WMA Image: JPG, GIF, BMP, PNG |
Video: MPG, AVI, MP4, RM, RMVB, TS Audio: MP3, WMA Image: JPG, GIF, BMP, PNG |
Video: MPG, AVI, MP4, RM, RMVB, TS Audio: MP3, WMA Image: JPG, GIF, BMP, PNG |
Video: MPG, AVI, MP4, RM, RMVB, TS Audio: MP3, WMA Image: JPG, GIF, BMP, PNG |
|
| Media Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | |
| Wi-Fi | 802.11b/g/n Ethernet (network version only) | 802.11b/g/n Ethernet (network version only) | 802.11b/g/n Ethernet (network version only) | 802.11b/g/n Ethernet (network version only) | |
| Operating System | Android 7.1 | Android 7.1 | Android 7.1 | Android 7.1 | |
| Certification | Safety | CE | CE | CE | CE |
| Accessories | Included | Scheduling software, Remote control, Key, Power cable, SD card, Wall mount bracket | Scheduling software, Remote control, Key, Power cable, SD card, Wall mount bracket | Scheduling software, Remote control, Key, Power cable, SD card, Wall mount bracket | Scheduling software, Remote control, Key, Power cable, SD card, Wall mount bracket |
| Quality Assurance | Warranty | 1 year | 1 year | 1 year | 1 year |
| Packaging | Type | Carton box / Honeycomb box + Wooden case | Carton box / Honeycomb box + Wooden case | Carton box / Honeycomb box + Wooden case | Carton box / Honeycomb box + Wooden case |
SD308S-OFS-DS
