Smart Magazine Advertising Digital Kiosk
Smart Magazine Advertising Digital Kiosk

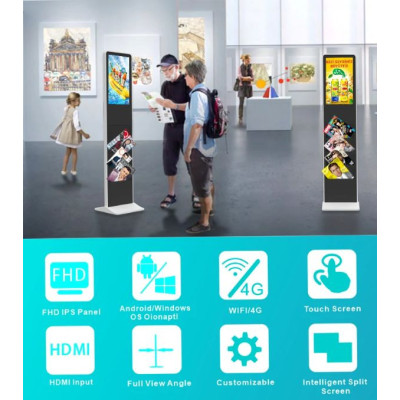

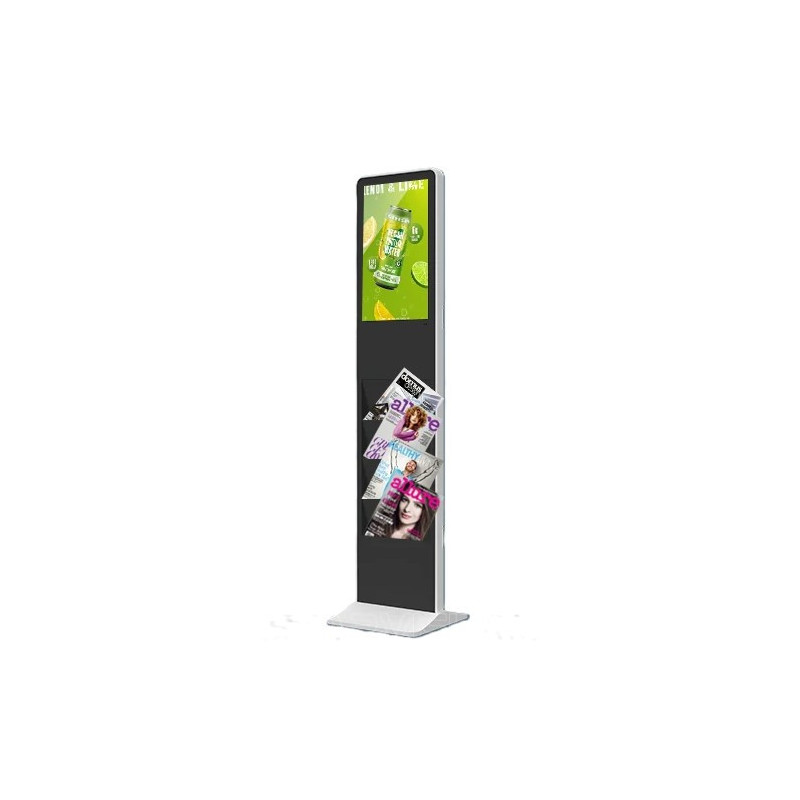

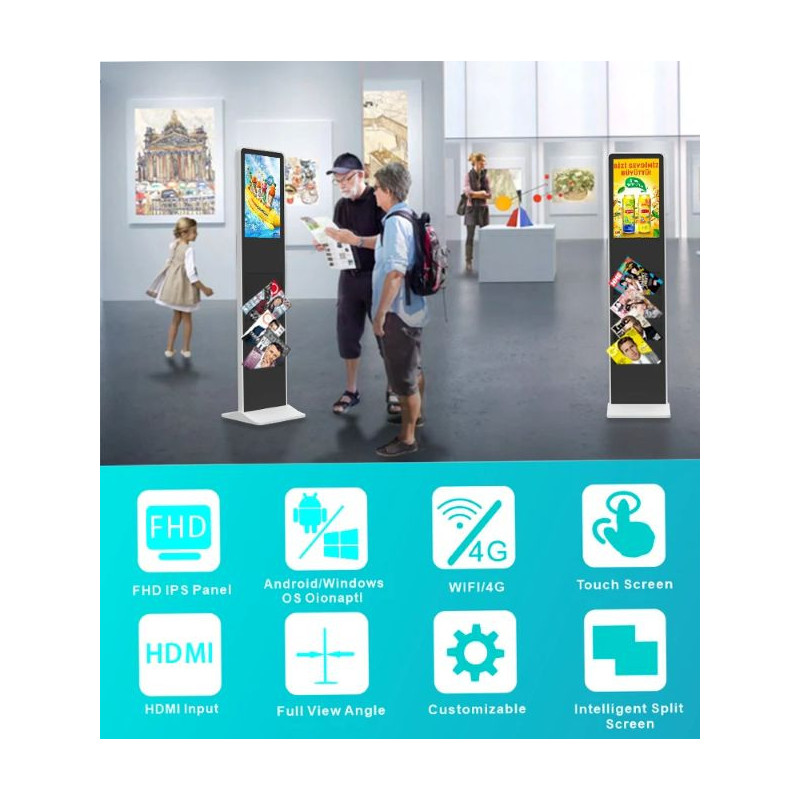

The Smart Magazine Advertising Digital Kiosk is the perfect blend of traditional print and modern digital media. Designed for offices, hotels, retail stores, beauty salons, and more, it provides a stylish platform to display magazines, newspapers, and other print materials, while featuring a high-quality digital signage screen for advertising, promotions, and eye-catching content.
Crafted with an extra-durable metal shell and finished with premium powder-spray painting, this kiosk combines elegance with long-lasting durability. Its versatile design makes it an ideal solution for a wide range of commercial applications, helping you engage audiences and enhance your brand visibility.

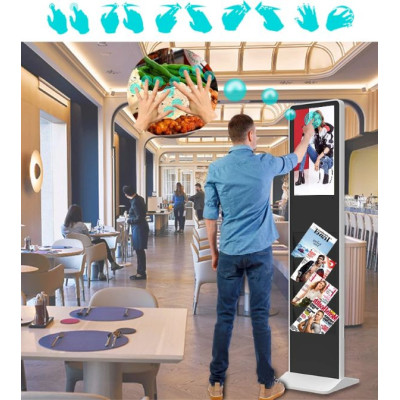

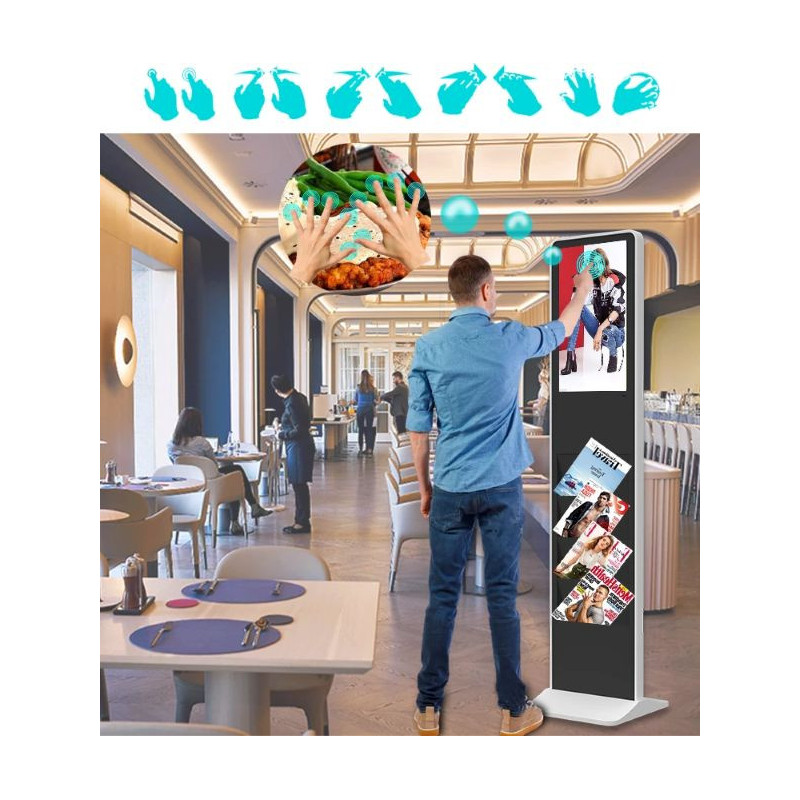

Interactive Touch Function Upgrade
Adapt sensitive 10 dots PCAP touch screen, bring you sensitive touch performance
Support Multiple Split-screen Functions
Support split-screen mode through software, save,export-import ADS
| Specification | 18.5″ | 21.5″ | 32″ |
|---|---|---|---|
| Panel | |||
| Display Size (inch) | 18.5 inches | 21.5 inches | 32 inches |
| Backlit Type | E-LED (Edge-lit LED) | E-LED (Edge-lit LED) | E-LED (Edge-lit LED) |
| Resolution | 1920×1080 pixels (Full HD, 16:9) | 1920×1080 pixels (Full HD, 16:9) | 1920×1080 pixels (Full HD, 16:9) |
| Active Display Area (mm) | 409.8 × 230.4 mm | 476.84 × 268.31 mm | 700.5 × 394.8 mm |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Brightness (cd/m²) | 300 cd/m² | 300 cd/m² | 350 cd/m² |
| Contrast Ratio (Typical) | 1000:1 | 1000:1 | 1000:1 |
| Viewing Angle (H/V) | 178° / 178° | 178° / 178° | 178° / 178° |
| Color Depth | 16.7 million colors | 16.7 million colors | 16.7 million colors |
| Response Time (G-to-G) | 6 ms | 6 ms | 6 ms |
| Operation Hours | 24/7 | 24/7 | 24/7 |
| Sound | Audio Output: 5W, 8Ω (2 sets) | Audio Output: 5W, 8Ω (2 sets) | Audio Output: 5W, 8Ω (2 sets) |
| Power | |||
| Power Type | Internal power supply | Internal power supply | Internal power supply |
| Power Supply | AC 100–240V, 50Hz–60Hz | AC 100–240V, 50Hz–60Hz | AC 100–240V, 50Hz–60Hz |
| Sleep Mode Power Consumption | < 0.5 W | < 0.5 W | < 0.5 W |
| Off Mode Power Consumption | < 0.5 W | < 0.5 W | < 0.5 W |
| Mechanical Specifications | |||
| Protection Glass | Yes | Yes | Yes |
| Mount Type | Wall mount | Wall mount | Wall mount |
| Environmental Conditions | |||
| Operating Temperature | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C |
| Storage Temperature | -10°C to 55°C | -10°C to 55°C | -10°C to 55°C |
| Operating Humidity | 10% to 80% | 10% to 80% | 10% to 80% |
| Storage Humidity | 5% to 95% | 5% to 95% | 5% to 95% |
| OS / Media Player | |||
| Processor | Rockchip RK3288, 1.8GHz, Quad-core | Rockchip RK3288, 1.8GHz, Quad-core | Rockchip RK3288, 1.8GHz, Quad-core |
| RAM | 2 GB | 2 GB | 2 GB |
| Built-in Memory | 8 GB FLASH memory | 8 GB FLASH memory | 8 GB FLASH memory |
| USB Ports | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST |
| LAN | 10M/100M Ethernet (Network version only) | 10M/100M Ethernet (Network version only) | 10M/100M Ethernet (Network version only) |
| External Memory Support | 8 GB SD card (up to 32 GB) | 8 GB SD card (up to 32 GB) | 8 GB SD card (up to 32 GB) |
| Multimedia Formats | Video: MPG, AVI, MP4, RM, RMVB, TS; Audio: MP3, WMA; Image: JPG, GIF, BMP, PNG | Same | Same |
| Maximum Media Resolution | 1920×1080 pixels | 1920×1080 pixels | 1920×1080 pixels |
| Wi-Fi | 802.11 b/g/n (Network version only) | 802.11 b/g/n (Network version only) | 802.11 b/g/n (Network version only) |
| Operating System | Android 7.1 | Android 7.1 | Android 7.1 |
| Certification | CE, RoHS | CE, RoHS | CE, RoHS |
| Accessories Included | Wall mount bracket, Scheduling software, Remote control, Key, Power cable, SD card | Same | Same |
| Quality Assurance | 1 Year | 1 Year | 1 Year |
| Packaging | Carton box / honeycomb box + wooden case | Same | Same |
SD209-MFS-DS
