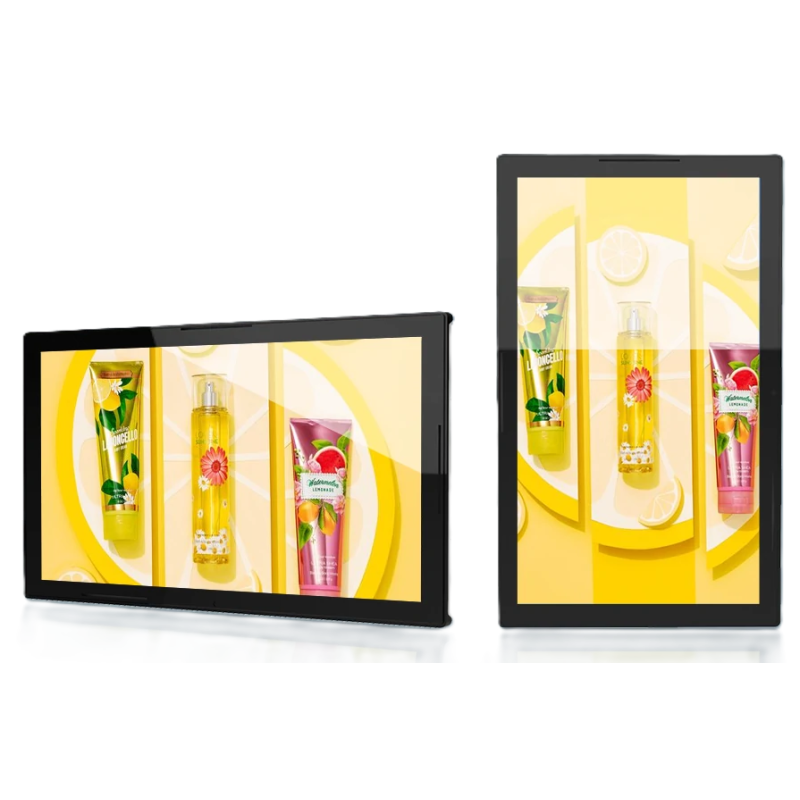

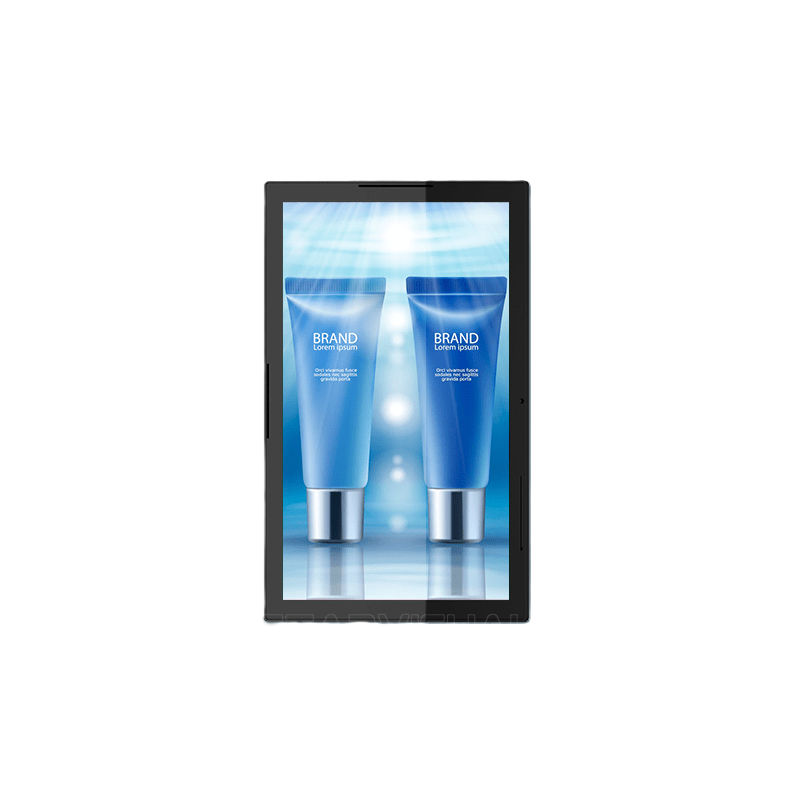

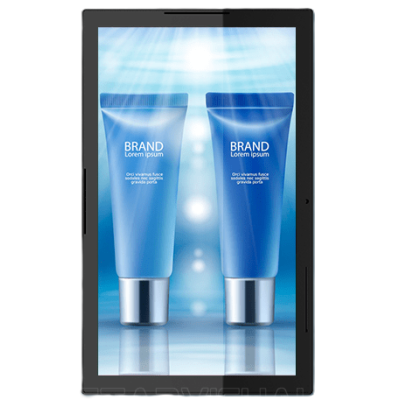

Smart Industrial Embedded Touch Monitor
Industrial-Grade Touchscreen Monitor Solutions
Starvisual touchscreen monitor solutions are engineered for high-performance in the toughest applications, delivering reliability and precision where it matters most. Using projected capacitive (PCAP) touchscreen technology, each sensor is customized to your unique application requirements, ensuring optimal performance for every use case.

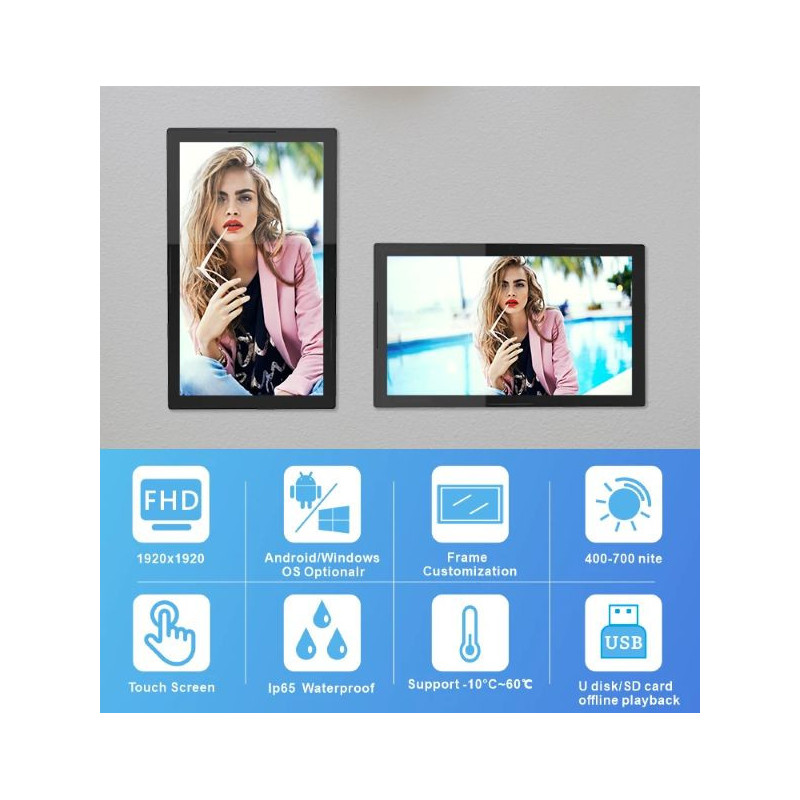

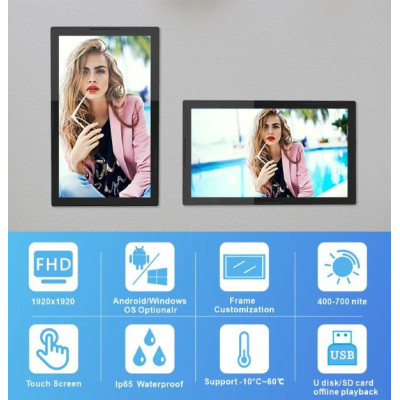

The monitors feature an open-mold aluminum alloy frame paired with high-quality tempered glass, creating a sleek, modern design with edge-to-edge flat glass. The IP65-rated front panels provide water- and dust-proof protection, making these monitors ideal for commercial, industrial, and organizational applications.

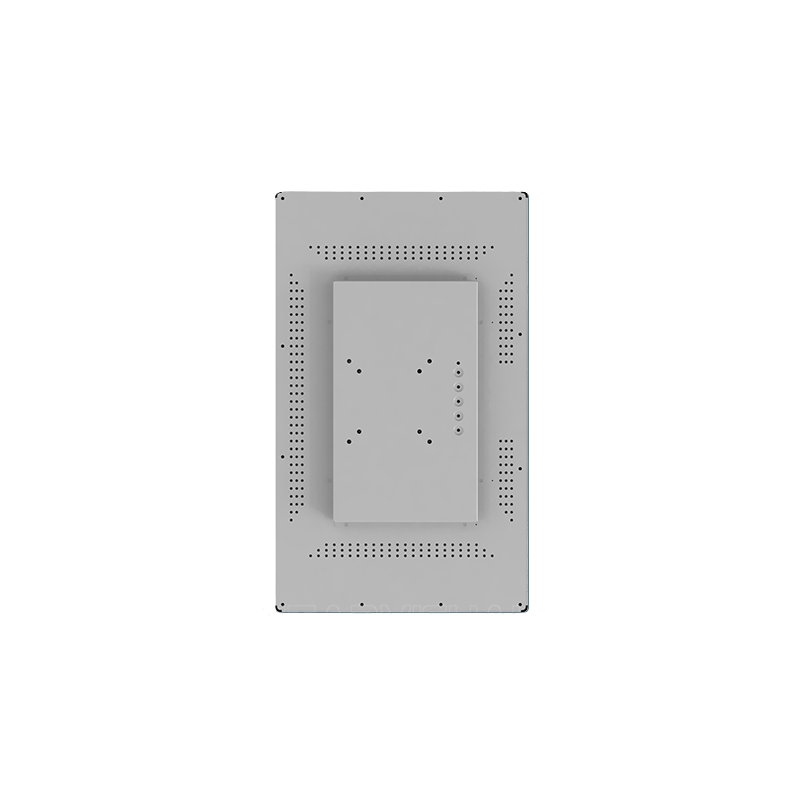

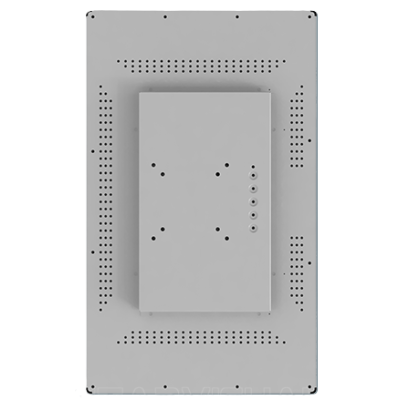

For example, our Smart Industrial Embedded Touch Monitor features a unique groove design on the surface, making it easy to integrate into a variety of environments and equipment, including vending machines, mechanical equipment, self-service terminals, and electrical devices. This combination of durability, precision, and versatility makes our touch monitors the perfect solution for demanding industrial and commercial settings.

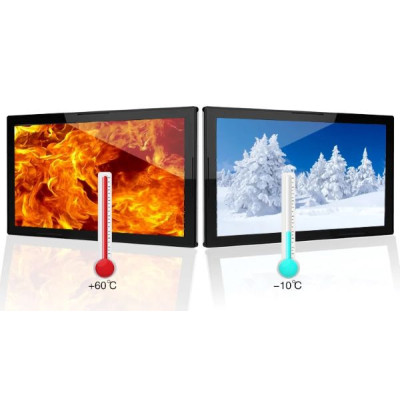

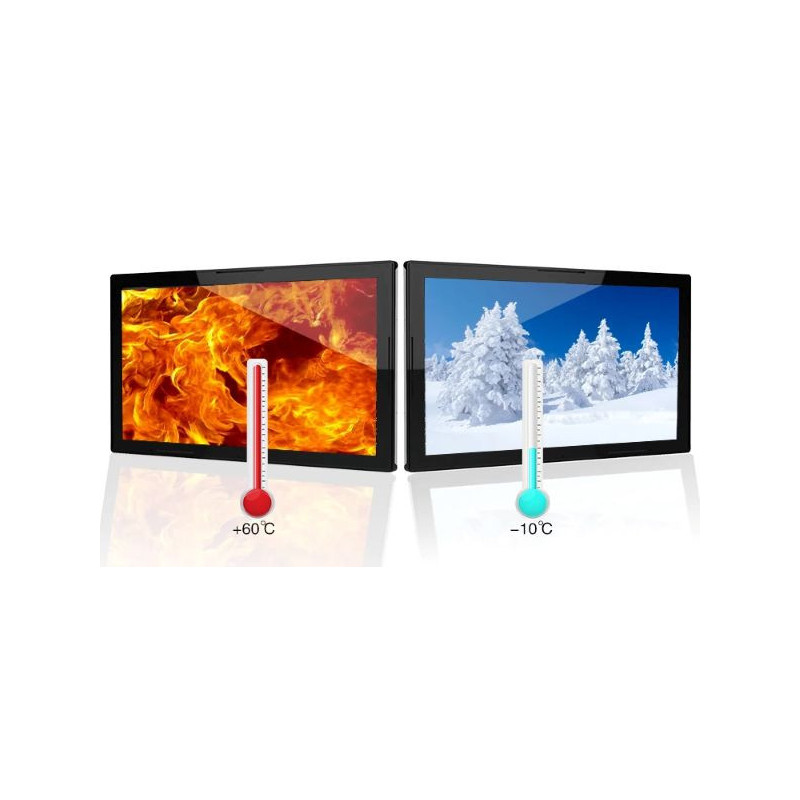

Resistant to pressure, high and low temperature
Suitable for various industrial environments and can still be used normally
at temperatures of-10℃+60℃

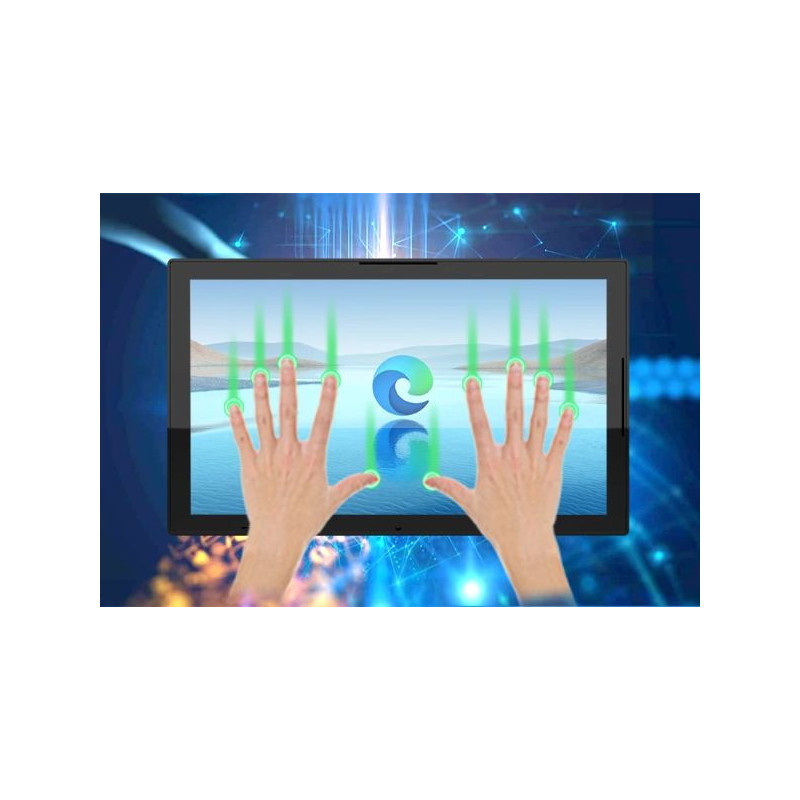

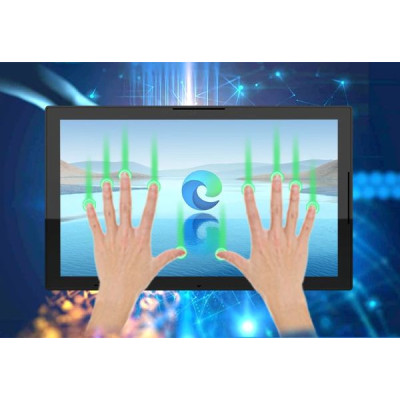

Sensitive touch screen, Quick response
Accurate capacitive screen Multi-touch, 10-point touch quick response
| Specification | 10.1″ | 13.3″ | 15.6″ | 17″ | 19″ | 21.5″ | 23.6″ | 27″ | 43″ | 49″ | 55″ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Panel | |||||||||||
| Display Size (inch) | 10.1 | 13.3 | 15.6 | 17 | 19 | 21.5 | 23.6 | 27 | 43 | 49 | 55 |
| Backlit Type | E-LED | E-LED | E-LED | E-LED | E-LED | E-LED | E-LED | E-LED | E-LED | E-LED | E-LED |
| Resolution | 1024×600 | 1920×1080 | 1366×768 | 1280×1024 | 1440×900 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 |
| Active Display Area (mm) | 222.7 × 125.2 | 293.7 × 165.2 | 344.2 × 193.5 | 337.9 × 270.3 | 408.2 × 255.2 | 479.8 × 271.3 | 521.3 × 293.2 | 597.6 × 336.2 | 941.2 × 529.4 | 1073.5 × 603.0 | 1209.6 × 680.4 |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 4:3 | 16:10 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Brightness (cd/m²) | 200 | 300 | 220 | 250 | 1000 | 250 | 300 | 300 | 300 | 300 | 350 |
| Contrast Ratio (Typ.) | 400:1 | 800:1 | 500:1 | 1000:1 | 1000:1 | 3000:1 | 1000:1 | 3000:1 | 1200:1 | 1500:1 | 4000:1 |
| Viewing Angle (H/V) | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° |
| Color Depth | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Response Time (G-to-G) | 6 ms | 6 ms | 6 ms | 6 ms | 6 ms | 6 ms | 6 ms | 6 ms | 6 ms | 6 ms | 6 ms |
| Operation Hours | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 |
| Power | |||||||||||
| Power Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Power Supply | AC 100–240 V~, 50/60 Hz | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| Maximum Power Consumption (W/h) | 6.5 | 7.5 | 7.5 | 35 | – | – | – | – | 154 | 156 | 187 |
| Sleep Mode | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W |
| Off Mode | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W |
| Mechanical Specifications | |||||||||||
| Protection Glass | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Stand Type | Embedded | Embedded | Embedded | Embedded | Embedded | Embedded | Embedded | Embedded | Embedded | Embedded | Embedded |
| Environmental Conditions | |||||||||||
| Operating Temperature | 0°C–45°C | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| Storage Temperature | -10°C–55°C | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| Operating Humidity | 10–80% | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| Storage Humidity | 5–95% | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| OS / Media Player | |||||||||||
| Processor | RK3288, Quad-core | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| RAM | 2 GB | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| Built-in Memory | 8 GB FLASH | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| USB Ports | 2 × USB 2.0 HOST | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| LAN | 10M/100M Ethernet (Network version only) | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| External Memory | 8 GB SD card (up to 32 GB) | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| Multimedia Formats | Video: MPG, AVI, MP4, RM, RMVB, TS; Audio: MP3, WMA; Image: JPG, GIF, BMP, PNG | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| Maximum Media Resolution | 1920×1080 | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| Wi-Fi | 802.11 b/g/n (Network version only) | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| Operating System | Android 7.1 | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| Certification | CE, RoHS | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| Accessories Included | Wall mount bracket, Scheduling software, Remote control, Key, Power cable, Wi-Fi antenna | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| Quality Assurance | 1 Year | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
| Packaging | Carton box / honeycomb box + wooden case | Same | Same | Same | Same | Same | Same | Same | Same | Same | Same |
SD508-ETM-DS
