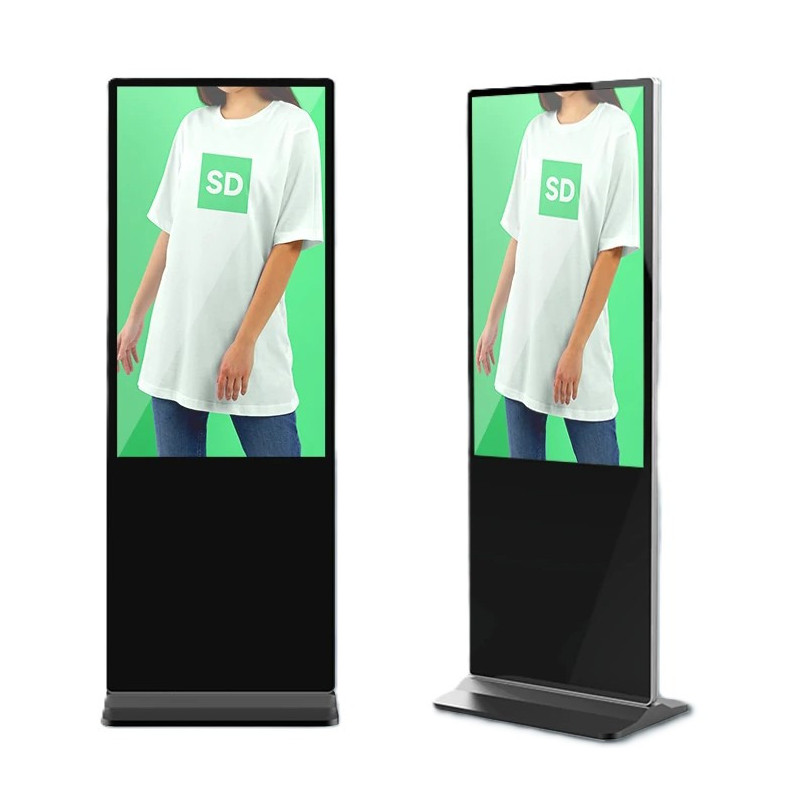

Ultra Slim Indoor Floor Standing Digital Signage Kiosk
Open-Cell Digital Signage – Ultra-Slim Floor Standing Kiosk
Open-cell is the latest innovation in digital signage technology, engineered specifically for commercial environments and designed to operate reliably 24/7. Starvisual ultra-slim floor-standing digital signage kiosk combines cutting-edge design with high functionality.

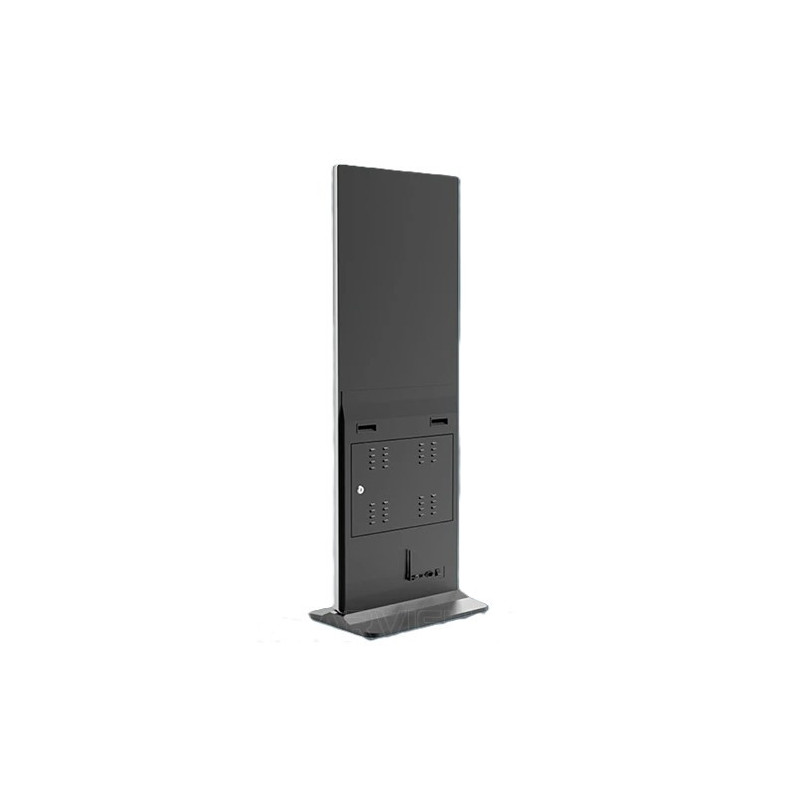

Thanks to the advanced open-cell structure, the LCD panel is mounted directly onto the kiosk shell, dramatically reducing the overall thickness and achieving an ultra-slim profile. This sleek, modern design makes it a standout addition to any space.

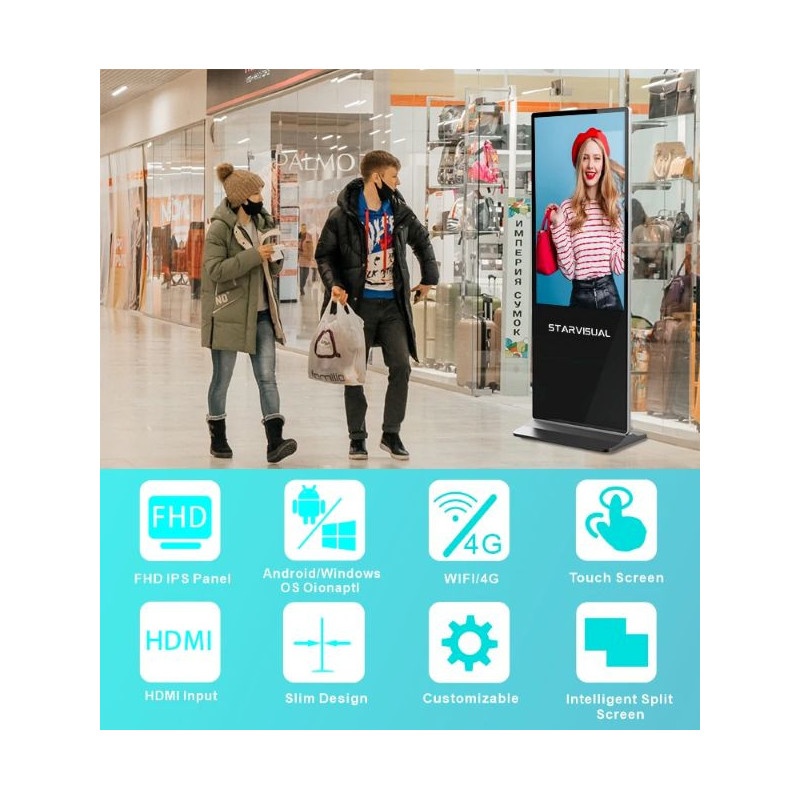

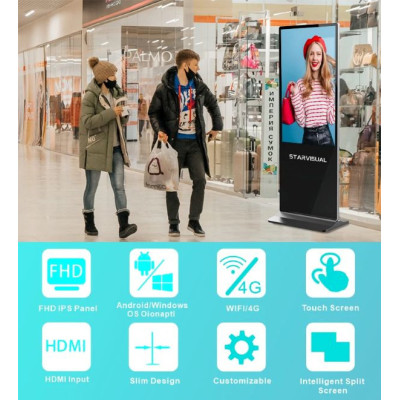

Versatile and stylish, this floor-standing display is perfect for a wide range of applications, including cinemas, cafes, shopping malls, automotive showrooms (4S stores), and more. Its elegant design and robust performance make it ideal for engaging audiences and enhancing your commercial environment.
Support Multiple Split-screen Functions
Support split-screen mode through software, save,export-import ADS

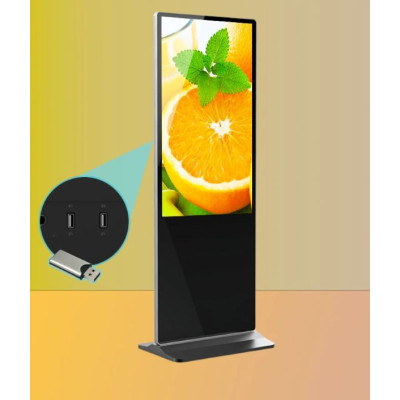

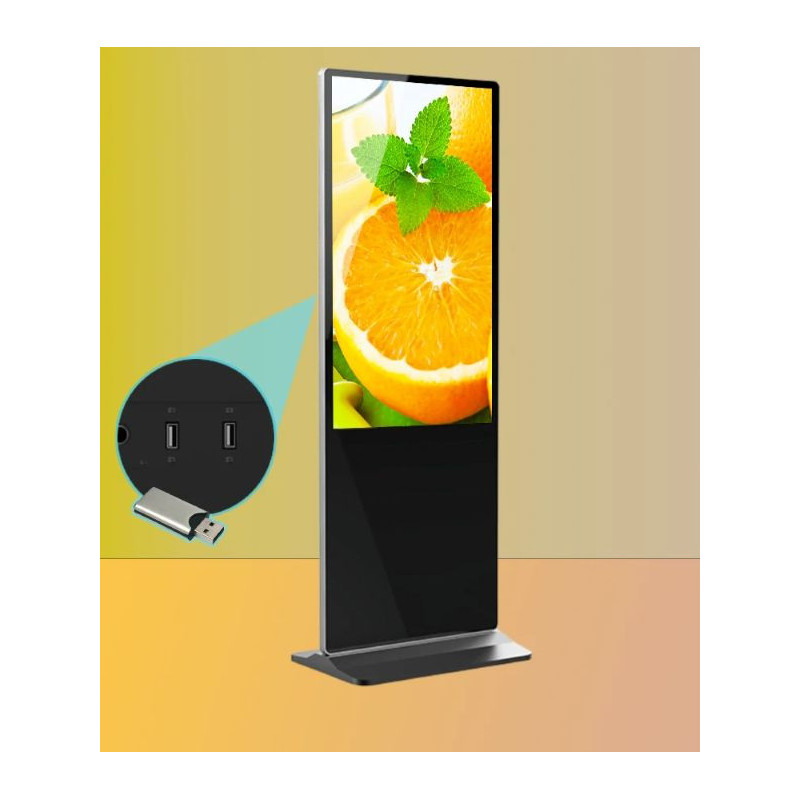

Automatic Loop Play ( Plug and Play Version)
Insert the U disk into the interface, the system will automatically
play pictures, advertisements, videos, and other pictures
SD209-FS-DS (OC) Specification
| Panel | 43″ | 49″ | 55″ |
|---|---|---|---|
| Display Size (inch) | 43 inches | 49 inches | 55 inches |
| Backlit Type | E-LED (Edge-lit LED) | E-LED (Edge-lit LED) | E-LED (Edge-lit LED) |
| Resolution | 1920×1080 pixels (Full HD, 16:9 aspect ratio) | 1920×1080 pixels (Full HD, 16:9 aspect ratio) | 1920×1080 pixels (Full HD, 16:9 aspect ratio) |
| Active Display Area (mm) | 941.2 mm (H) × 529.4 mm (V) | 1073.5 mm (H) × 603.0 mm (V) | 1209.6 mm (H) × 680.4 mm (V) |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Brightness (cd/m²) | 300 cd/m² | 350 cd/m² | 350 cd/m² |
| Contrast Ratio (Typical) | 1500:1 | 1500:1 | 2000:1 |
| Viewing Angle (Horizontal/Vertical) | 178° / 178° | 178° / 178° | 178° / 178° |
| Color Depth | 16.7 million colors | 16.7 million colors | 16.7 million colors |
| Response Time (Gray-to-Gray) | 6 milliseconds | 6 milliseconds | 6 milliseconds |
| Operation Hours | 24 hours / 7 days | 24 hours / 7 days | 24 hours / 7 days |
| Sound | Audio Output: 5W, 8Ω (2 sets) | Audio Output: 5W, 8Ω (2 sets) | Audio Output: 5W, 8Ω (2 sets) |
| Power | |||
| Power Type | Internal power supply | Internal power supply | Internal power supply |
| Power Supply | AC 100V to 240V, 50Hz~60Hz | AC 100V to 240V, 50Hz~60Hz | AC 100V to 240V, 50Hz~60Hz |
| Maximum Power Consumption | 100 W | 120 W | 150 W |
| Sleep Mode Power Consumption | Less than 0.5 W | Less than 0.5 W | Less than 0.5 W |
| Off Mode Power Consumption | Less than 0.5 W | Less than 0.5 W | Less than 0.5 W |
| Mechanical Specifications | |||
| Protection Glass | Yes | Yes | Yes |
| Mount Type | Floor standing | Floor standing | Floor standing |
| Environmental Conditions | |||
| Operating Temperature | 0°C to 45°C | 0°C to 45°C | 0°C to 45°C |
| Storage Temperature | -10°C to 55°C | -10°C to 55°C | -10°C to 55°C |
| Operating Humidity | 10% to 80% | 10% to 80% | 10% to 80% |
| Storage Humidity | 5% to 95% | 5% to 95% | 5% to 95% |
| OS / Media Player | |||
| Processor | Rockchip RK3288, 1.8GHz, Octa-core | Rockchip RK3288, 1.8GHz, Octa-core | Rockchip RK3288, 1.8GHz, Octa-core |
| RAM | 2 GB | 2 GB | 2 GB |
| Built-in Memory | 8 GB FLASH memory | 8 GB FLASH memory | 8 GB FLASH memory |
| USB Ports | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST |
| LAN | 10M/100M Ethernet (Network version screen only) | 10M/100M Ethernet (Network version screen only) | 10M/100M Ethernet (Network version screen only) |
| External Memory Support | 8 GB SD card (supports up to 32 GB) | 8 GB SD card (supports up to 32 GB) | 8 GB SD card (supports up to 32 GB) |
| Multimedia Formats | Video: MPG, AVI, MP4, RM, RMVB, TS; Audio: MP3, WMA; Image: JPG, GIF, BMP, PNG | Same | Same |
| Maximum Media Resolution | 1920×1080 pixels | 1920×1080 pixels | 1920×1080 pixels |
| Wi-Fi | 802.11 b/g/n (Network version screen only) | 802.11 b/g/n (Network version screen only) | 802.11 b/g/n (Network version screen only) |
| Operating System | Android 7.1 | Android 7.1 | Android 7.1 |
| Certification | CE, RoHS | CE, RoHS | CE, RoHS |
| Accessories Included | Wall mount bracket, Scheduling software, Remote control, Key, Power cable, SD card | Same | Same |
| Quality Assurance | 1 Year | 1 Year | 1 Year |
| Packaging | Carton box / honeycomb box + wooden case | Same | Same |
