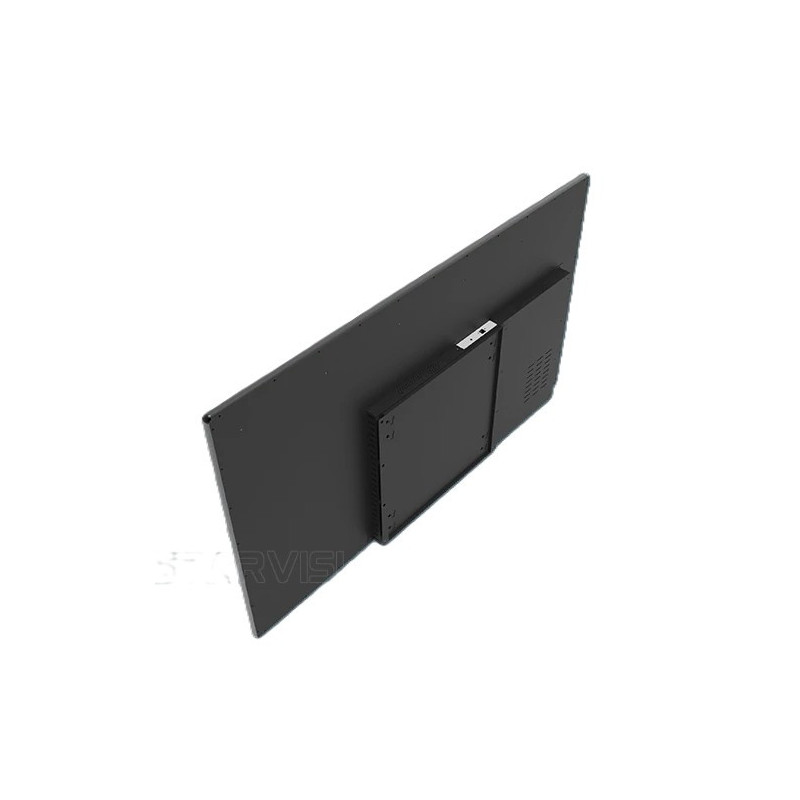

Ultra Slim Indoor Wall Mounted Digital Signage Display
Ultra Slim Wall-Mounted Digital Signage Display (Open Cell)
Our Ultra Slim Wall-Mounted Digital Signage Display (Open Cell) is a next-generation solution designed for commercial applications that demand style, performance, and reliability. Built for 24/7 continuous operation, this display combines cutting-edge technology with an incredibly slim profile, making it one of the most modern and space-saving digital signage solutions available.
With its sleek and minimalist design, it seamlessly integrates into a wide range of environments, making it the perfect choice for trend-driven businesses. Whether used in a cinema, coffee shop, shopping centre's, showroom, retail store, or car dealership's, it elevates customer engagement and brand visibility.
Key Advantages:
-
Ultra-slim, modern, and elegant wall-mounted design
-
Open cell technology for enhanced brightness and display clarity
-
Built for 24/7 commercial use – reliable and durable
-
Versatile installation – ideal for various indoor applications
-
Perfect for retail, entertainment, hospitality, and showroom environments

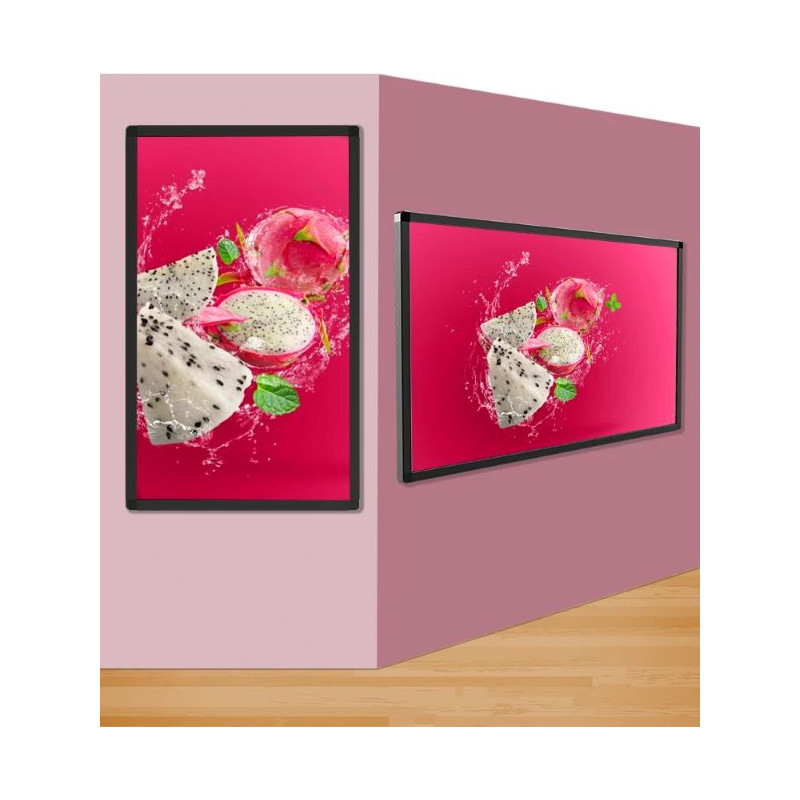

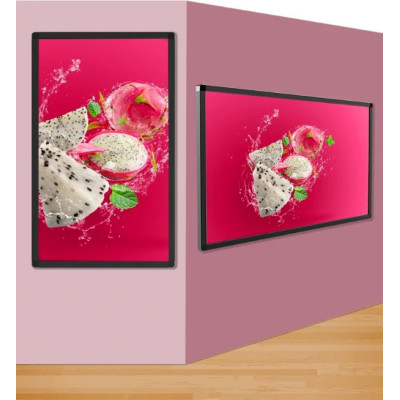

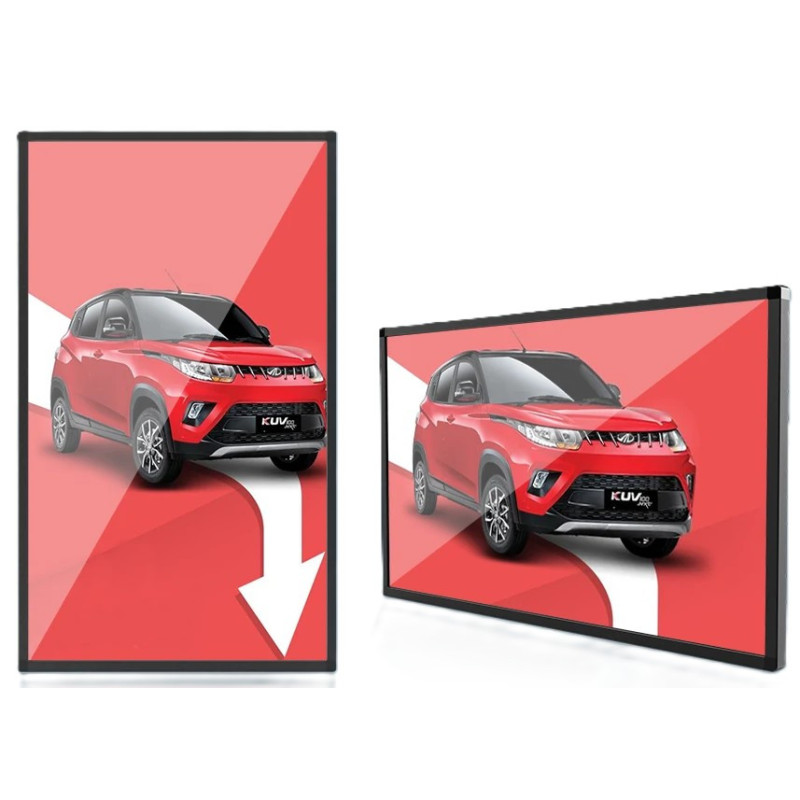

Support Horizontal and Vertical Display
With the VESA bracket, our wall-mounted digital signage displays can be installed horizontally or vertically according to your requirements
Model No.: SD208-WM-DS(OC)
| Category | Spec | 32″ | 43″ | 49″ | 55″ |
|---|---|---|---|---|---|
| Panel | Backlit Type | E-LED | E-LED | E-LED | E-LED |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | |
| Active Display Area (mm) | 700.5 × 394.8 | 941.2 × 529.4 | 1073.5 × 603.0 | 1209.6 × 680.4 | |
| Aspect Ratio | 16:09 | 16:09 | 16:09 | 16:09 | |
| Brightness (cd/m²) | 300 nit | 300 nit | 300 nit | 350 nit | |
| Contrast Ratio (Typ.) | 1000:1 | 1200:1 | 1500:1 | 2000:1 | |
| Viewing Angle (H/V) | 178/178 | 178/178 | 178/178 | 178/178 | |
| Color | 16.7M | 16.7M | 16.7M | 16.7M | |
| Response Time (G-to-G) | 6ms | 6ms | 6ms | 6ms | |
| Operation Hour | 24/7 | 24/7 | 24/7 | 24/7 | |
| Sound | Audio Output | 5W, 8Ω (2 sets), Dual-channel stereo | 5W, 8Ω (2 sets), Dual-channel stereo | 5W, 8Ω (2 sets), Dual-channel stereo | 5W, 8Ω (2 sets), Dual-channel stereo |
| Power | Type | Internal | Internal | Internal | Internal |
| Power Supply | AC 100–240 V~ (+/- 10 %), 50/60 Hz | AC 100–240 V~ (+/- 10 %), 50/60 Hz | AC 100–240 V~ (+/- 10 %), 50/60 Hz | AC 100–240 V~ (+/- 10 %), 50/60 Hz | |
| Power Consumption (Max) | 55 W/h | 100 W/h | 120 W/h | 150 W/h | |
| Sleep Mode | < 0.5W | < 0.5W | < 0.5W | < 0.5W | |
| Off Mode | < 0.5W | < 0.5W | < 0.5W | < 0.5W | |
| Mechanical Spec | Protection Glass | Yes | Yes | Yes | Yes |
| Mount Type | Wallmount | Wallmount | Wallmount | Wallmount | |
| Environmental | Operating Temperature | 0°C ~ 45°C | 0°C ~ 45°C | 0°C ~ 45°C | 0°C ~ 45°C |
| Storage Temperature | -10°C ~ 55°C | -10°C ~ 55°C | -10°C ~ 55°C | -10°C ~ 55°C | |
| Operating Humidity | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | |
| Storage Humidity | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | |
| Android Media Player | Processor | RK3288, Quad-core | RK3288, Quad-core | RK3288, Quad-core | RK3288, Quad-core |
| RAM | 2G | 2G | 2G | 2G | |
| Memory | Built-in FLASH memory 8G | Built-in FLASH memory 8G | Built-in FLASH memory 8G | Built-in FLASH memory 8G | |
| USB | USB2.0 HOST (×2) | USB2.0 HOST (×2) | USB2.0 HOST (×2) | USB2.0 HOST (×2) | |
| LAN | 10M/100M Ethernet (Network version) | 10M/100M Ethernet (Network version) | 10M/100M Ethernet (Network version) | 10M/100M Ethernet (Network version) | |
| External Memory | Optional (up to 32G SD card) | Optional (up to 32G SD card) | Optional (up to 32G SD card) | Optional (up to 32G SD card) | |
| Multimedia | MPG, AVI, MP4, RM, RMVB, TS; MP3, WMA; JPG, GIF, BMP, PNG | MPG, AVI, MP4, RM, RMVB, TS; MP3, WMA; JPG, GIF, BMP, PNG | MPG, AVI, MP4, RM, RMVB, TS; MP3, WMA; JPG, GIF, BMP, PNG | MPG, AVI, MP4, RM, RMVB, TS; MP3, WMA; JPG, GIF, BMP, PNG | |
| Media Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | |
| Wi-Fi | 802.11 b/g/n (Network version) | 802.11 b/g/n (Network version) | 802.11 b/g/n (Network version) | 802.11 b/g/n (Network version) | |
| Operating System | Android 7.1 | Android 7.1 | Android 7.1 | Android 7.1 | |
| Certification | Safety | CE, ROHS | CE, ROHS | CE, ROHS | CE, ROHS |
| Accessories | Included | Wall mount bracket, Scheduling software, Remote control, Key, Power cable, WiFi antenna | Wall mount bracket, Scheduling software, Remote control, Key, Power cable, WiFi antenna | Wall mount bracket, Scheduling software, Remote control, Key, Power cable, WiFi antenna | Wall mount bracket, Scheduling software, Remote control, Key, Power cable, WiFi antenna |
| Other | Quality Assurance | 1 Year | 1 Year | 1 Year | 1 Year |
| Packaging | Carton box / Honeycomb box + Wooden case | Carton box / Honeycomb box + Wooden case | Carton box / Honeycomb box + Wooden case | Carton box / Honeycomb box + Wooden case |
SD208-WM-DS(OC)
