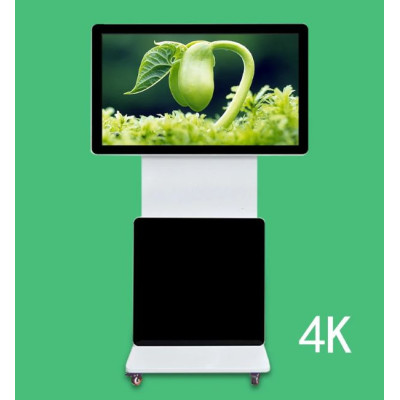

360° Rotating Touch LCD Digital Signage Kiosk
360° Rotating Touch LCD Digital Signage Kiosk
Experience full flexibility and high-impact advertising with the Starvisual 360° Rotating Touch LCD Digital Signage Kiosk. Featuring a commercial-grade, high-definition 1080p screen with tempered glass protection, this kiosk is built for durability, performance, and long-term use.
Designed as a complete, cost-effective digital signage solution, it combines a commercial-grade IPS LCD screen with a built-in networked Android media player. The IPS panel ensures wide viewing angles, and the 450 cd/m² brightness delivers crisp, clear images even in well-lit environments. With a lifespan of over 60,000 hours, the screen is capable of 24/7 operation without loss in image quality.
The kiosk is tamper-proof, with no external buttons or controls, and no distracting logos or lights, ensuring that your content remains the sole focus.

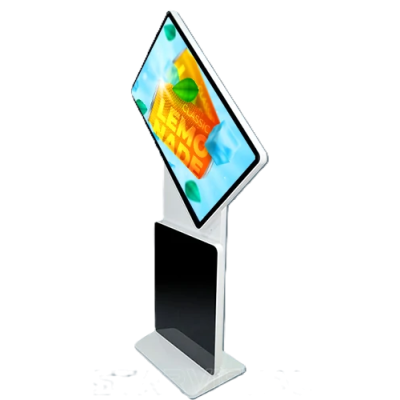

Its auto 360° rotation allows the display to be viewed from any angle, making it perfect for retail stores, trade shows, exhibitions, and special events. Whether you want to engage customers on the sales floor or create an immersive exhibition experience, this kiosk provides a dynamic, interactive, and versatile solution for modern digital signage.
| Specification | 43-Inch Model | 49-Inch Model | 55-Inch Model |
|---|---|---|---|
| Panel | |||
| Display Size (inch) | 43 inches | 49 inches | 55 inches |
| Backlit Type | E-LED (Edge-lit LED) | E-LED (Edge-lit LED) | E-LED (Edge-lit LED) |
| Resolution | 1920 × 1080 pixels (Full HD, 16:9) | 1920 × 1080 pixels (Full HD, 16:9) | 1920 × 1080 pixels (Full HD, 16:9) |
| Active Display Area (mm) | 941.2 (H) × 529.4 (V) | 1073.5 (H) × 603.0 (V) | 1209.6 (H) × 680.4 (V) |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Brightness (cd/m²) | 300 cd/m² | 350 cd/m² | 350 cd/m² |
| Contrast Ratio (Typical) | 1500:1 | 1500:1 | 2000:1 |
| Viewing Angle (H/V) | 178° / 178° | 178° / 178° | 178° / 178° |
| Color Depth | 16.7 million colors | 16.7 million colors | 16.7 million colors |
| Response Time (G-to-G) | 6 ms | 6 ms | 6 ms |
| Operation Hours | 24/7 | 24/7 | 24/7 |
| Sound | Audio Output: 5W, 8Ω (2 sets) | Audio Output: 5W, 8Ω (2 sets) | Audio Output: 5W, 8Ω (2 sets) |
| Power | |||
| Power Type | Internal power supply | Internal power supply | Internal power supply |
| Power Supply | AC 100–240V, 50Hz–60Hz | AC 100–240V, 50Hz–60Hz | AC 100–240V, 50Hz–60Hz |
| Maximum Power Consumption (W/h) | 100 W | 120 W | 150 W |
| Sleep Mode Power Consumption | Less than 0.5 W | Less than 0.5 W | Less than 0.5 W |
| Off Mode Power Consumption | Less than 0.5 W | Less than 0.5 W | Less than 0.5 W |
| Mechanical Specifications | |||
| Protection Glass | Yes | Yes | Yes |
| Mount Type | Wall mount | Wall mount | Wall mount |
| Environmental Conditions | |||
| Operating Temperature | 0°C to 45°C | 0°C to 45°C | 0°C to 45°C |
| Storage Temperature | -10°C to 55°C | -10°C to 55°C | -10°C to 55°C |
| Operating Humidity | 10% to 80% | 10% to 80% | 10% to 80% |
| Storage Humidity | 5% to 95% | 5% to 95% | 5% to 95% |
| OS / Media Player | |||
| Processor | Rockchip RK3288, 1.8GHz, Quad-core | Rockchip RK3288, 1.8GHz, Quad-core | Rockchip RK3288, 1.8GHz, Quad-core |
| RAM | 2 GB | 2 GB | 2 GB |
| Built-in Memory | 8 GB FLASH memory | 8 GB FLASH memory | 8 GB FLASH memory |
| USB Ports | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST |
| LAN | 10M/100M Ethernet (Network version only) | 10M/100M Ethernet (Network version only) | 10M/100M Ethernet (Network version only) |
| External Memory Support | 8 GB SD card (up to 32 GB) | 8 GB SD card (up to 32 GB) | 8 GB SD card (up to 32 GB) |
| Multimedia Formats | Video: MPG, AVI, MP4, RM, RMVB, TS; Audio: MP3, WMA; Image: JPG, GIF, BMP, PNG | Same | Same |
| Maximum Media Resolution | 1920 × 1080 pixels | 1920 × 1080 pixels | 1920 × 1080 pixels |
| Wi-Fi | 802.11 b/g/n (Network version only) | 802.11 b/g/n (Network version only) | 802.11 b/g/n (Network version only) |
| Operating System | Android 7.1 | Android 7.1 | Android 7.1 |
| Certification | CE, RoHS | CE, RoHS | CE, RoHS |
| Accessories Included | Scheduling software, Remote control, Key, Power cable, SD card | Same | Same |
| Quality Assurance | 1 Year | 1 Year | 1 Year |
| Packaging | Carton box / honeycomb box + wooden case | Same | Same |
SD312-TRK-DS
