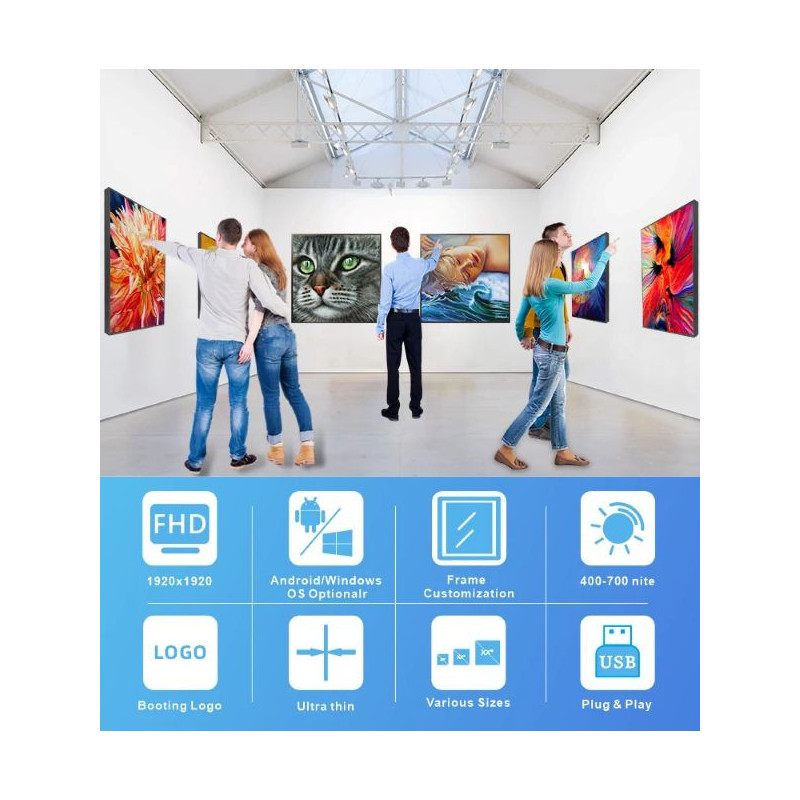

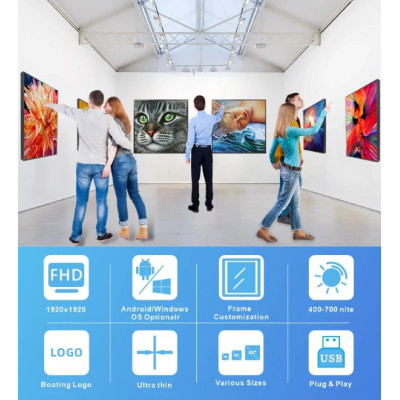

Starvisual Square LCD Digital Signage Displays are designed for commercial applications where a unique, niche display format is required. Perfect for retail environments, museums, digital art installations, amusement venues, and gaming setups, these square Android network screens offer a distinctive visual appeal and creative flexibility. Their 1:1 aspect ratio makes them especially popular for museum exhibits, art installations, and interactive display designs.
We provide multiple options to fit your project needs, including:

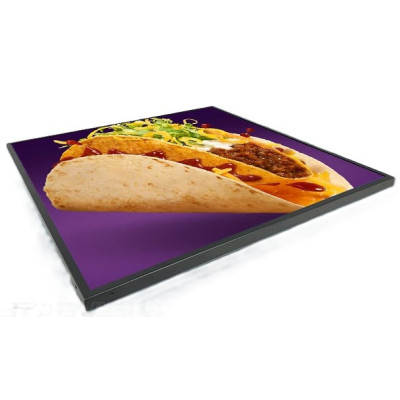

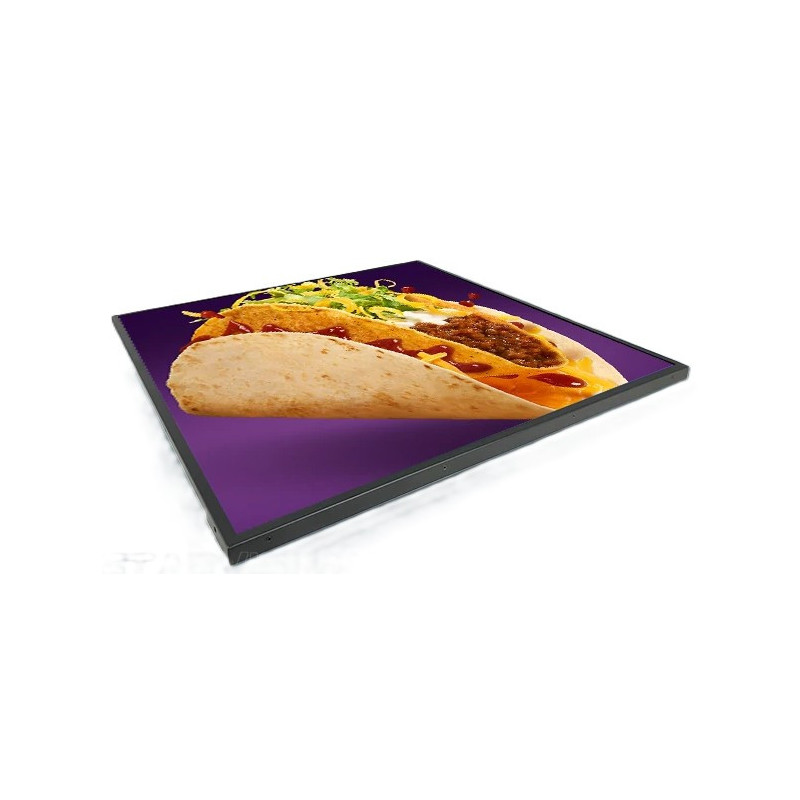

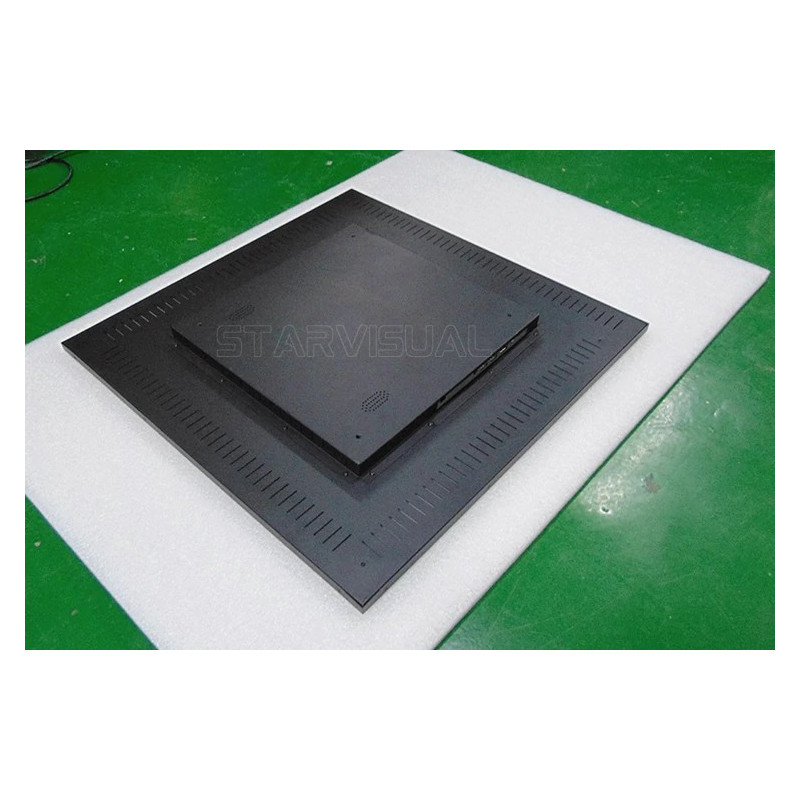

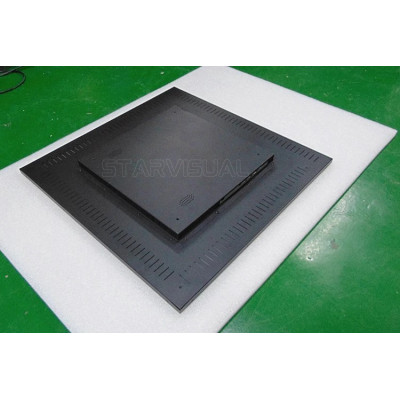

Square panels and chassis monitors
Enclosed square LCD monitors
Interactive touchscreen solutions
Fully customized configurations for high brightness, ruggedization, extra-thick touchscreens, and diverse input options such as HDMI, VGA, DVI, and more
Key Features of Our Square LCD Digital Signage Displays:
sRGB color gamut coverage: 92%, delivering vivid and accurate colors
Android-based remote control for seamless content management
Ultra-high brightness ranging from 400–700 cd/m² for maximum visibility
Special 1:1 aspect ratio, with over 90% of displays in this format
Ultra-thin, lightweight, and narrow-frame design for sleek aesthetics and easy installation
Professional fog LCD screen technology, providing brighter images with enhanced depth and three-dimensional effect
Reliable 24/7 operation, supporting uninterrupted use in demanding environments
USB playback functionality, with automatic encryption and local storage for secure video and image playback
Whether you are designing a museum exhibit, retail display, or interactive art installation, our Square LCD Digital Signage Displays combine performance, durability, and style to elevate your visual presentation.

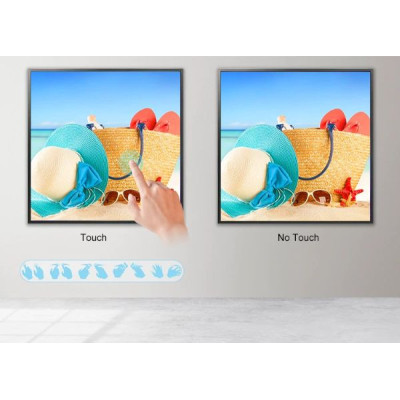

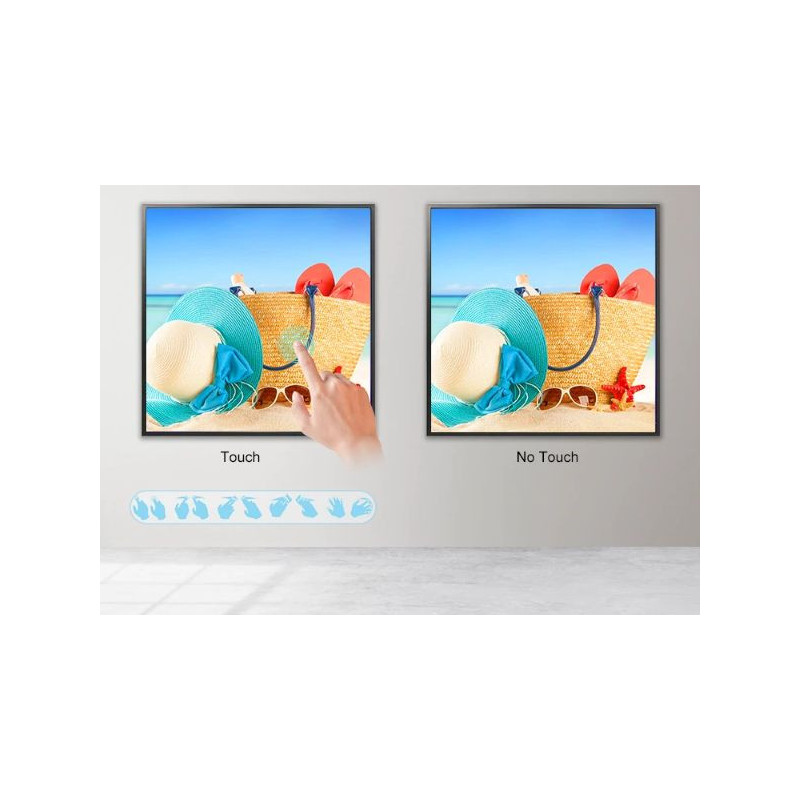

Adapt sensitive 10 dots PCAP touch screen bring you sensitive touch performance

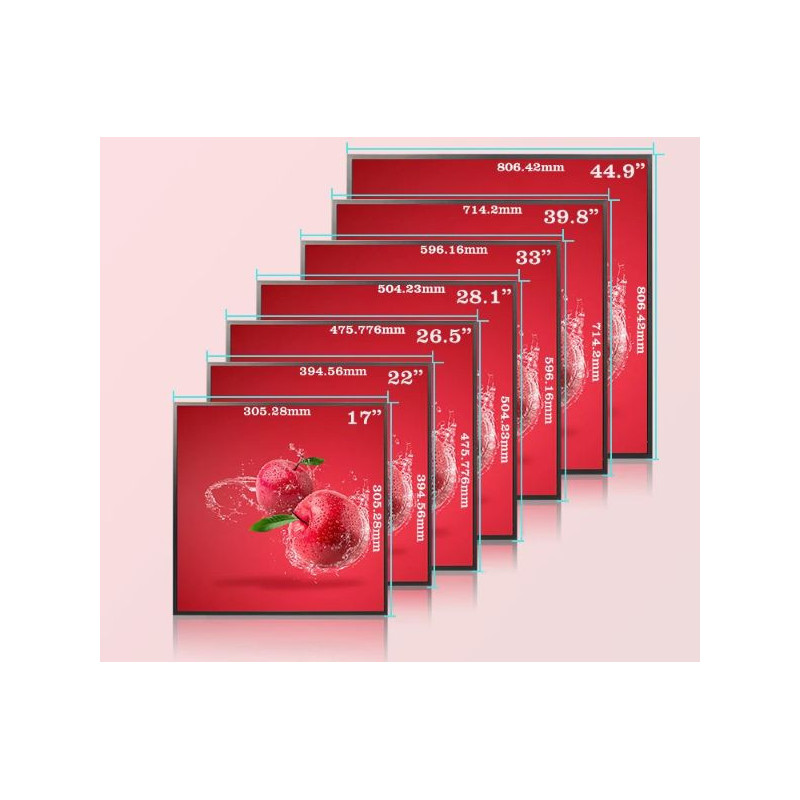

| Specification | 17″ | 22″ | 26.5″ | 33.2″ | 44.9″ |
|---|---|---|---|---|---|
| Panel | |||||
| Display Size (inch) | 17 | 22 | 26.5 | 33.2 | 44.9 |
| Resolution | 1920 × 1920 | 1920 × 1920 | 1920 × 1920 | 1920 × 1920 | 1280 × 1280 |

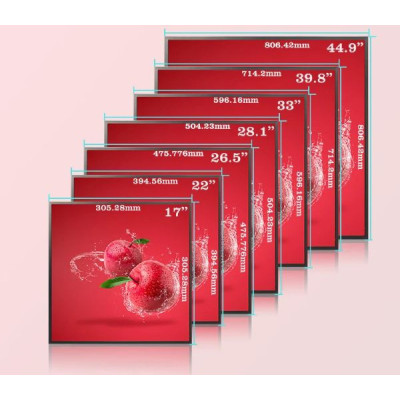

| Active Display Area (mm) | 305.28 × 305.28 | 394.56 × 394.56 | 475.776 × 475.776 | 596.16 × 596.16 | 806.42 × 806.42 |
| Aspect Ratio | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Brightness (cd/m²) | 500 | 500 | 500 | 500 | 700 |
| Contrast Ratio (Typ.) | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 4000:1 |
| Viewing Angle (H/V) | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° |
| Color Depth | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Response Time (G-to-G) | 6.5 ms | 6.5 ms | 6.5 ms | 6.5 ms | 6.5 ms |
| Operation Hours | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 |
| Sound | 5W, 8Ω (2 sets), Dual-channel stereo audio output | Same | Same | Same | Same |
| Power | |||||
| Power Type | Internal | Internal | Internal | Internal | Internal |
| Power Supply | AC 100–240 V~, 50/60 Hz | Same | Same | Same | Same |
| Maximum Power Consumption (W/h) | 20 | 20 | 25 | 30 | 50 |
| Sleep Mode | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W |
| Off Mode | <0.5 W | <0.5 W | <0.5 W | <0.5 W | <0.5 W |
| Mechanical Specifications | |||||
| Protection Glass | N/A | N/A | N/A | N/A | N/A |
| Stand Type | Wall mount | Wall mount | Wall mount | Wall mount | Wall mount |
| Environmental Conditions | |||||
| Operating Temperature | 0°C–50°C | Same | Same | Same | Same |
| Storage Temperature | -10°C–55°C | Same | Same | Same | Same |
| Operating Humidity | 10–80% | Same | Same | Same | Same |
| Storage Humidity | 5–95% | Same | Same | Same | Same |
| OS / Media Player | |||||
| Processor | RK3568, 1.8GHz, Octa-core | Same | Same | Same | Same |
| RAM | 2 GB DDR3 | Same | Same | Same | Same |
| Built-in Memory | 8 GB FLASH | Same | Same | Same | Same |
| USB Ports | 2 × USB 2.0 HOST | Same | Same | Same | Same |
| LAN | 10M/100M Ethernet (Network version only) | Same | Same | Same | Same |
| External Memory | 8 GB SD card (up to 32 GB) | Same | Same | Same | Same |
| Multimedia Formats | Video: MPG, AVI, MP4, RM, RMVB, TS; Audio: MP3, WMA; Image: JPG, GIF, BMP, PNG | Same | Same | Same | Same |
| Media Resolution Support | 1080P, 1080I, 720P, 480P & multiple resolutions | Same | Same | Same | Same |
| Wi-Fi | 802.11 b/g/n (Network version only) | Same | Same | Same | Same |
| Operating System | Android 9.0 | Same | Same | Same | Same |
| Certification | CE, RoHS | Same | Same | Same | Same |
| Accessories Included | Scheduling software, Remote control, Key, Power cable, SD card | Same | Same | Same | Same |
| Quality Assurance | 1 Year | Same | Same | Same | Same |
| Packaging | Carton box / honeycomb box + wooden case | Same | Same | Same | Same |
