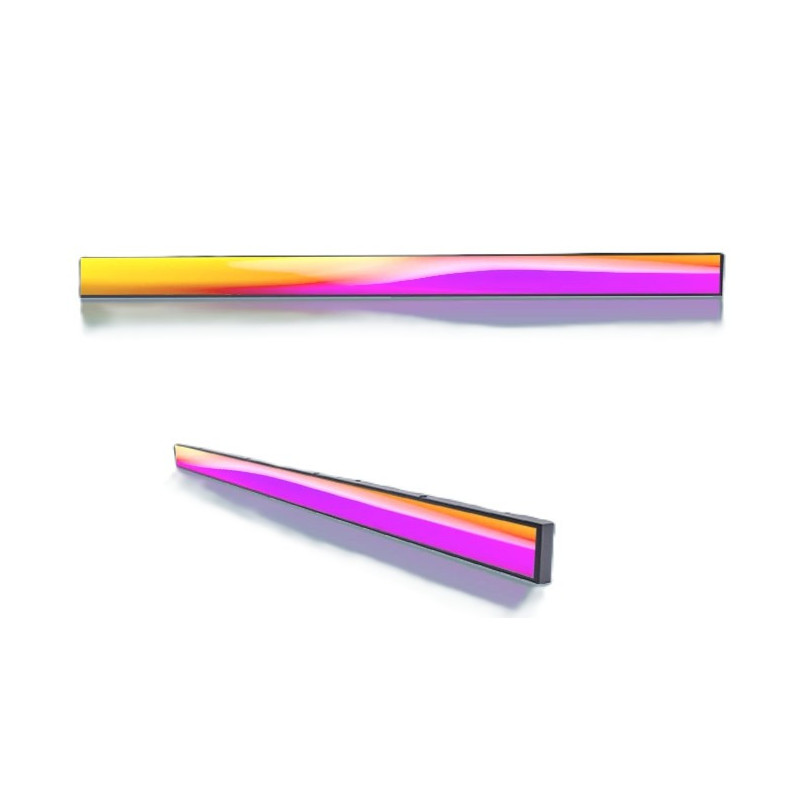

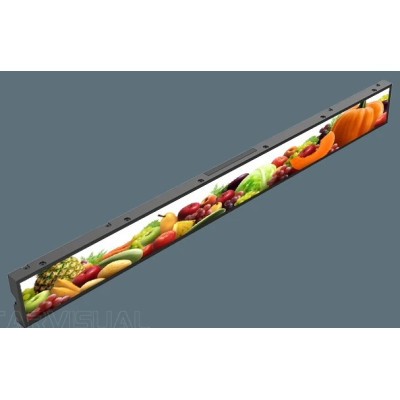

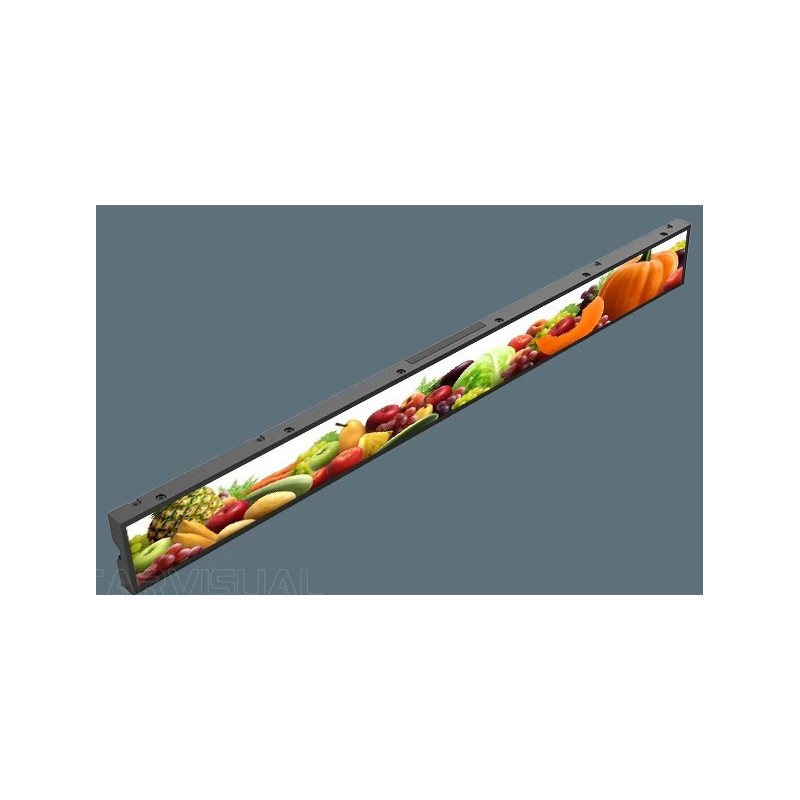

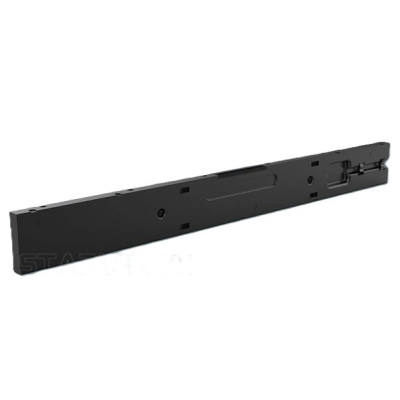

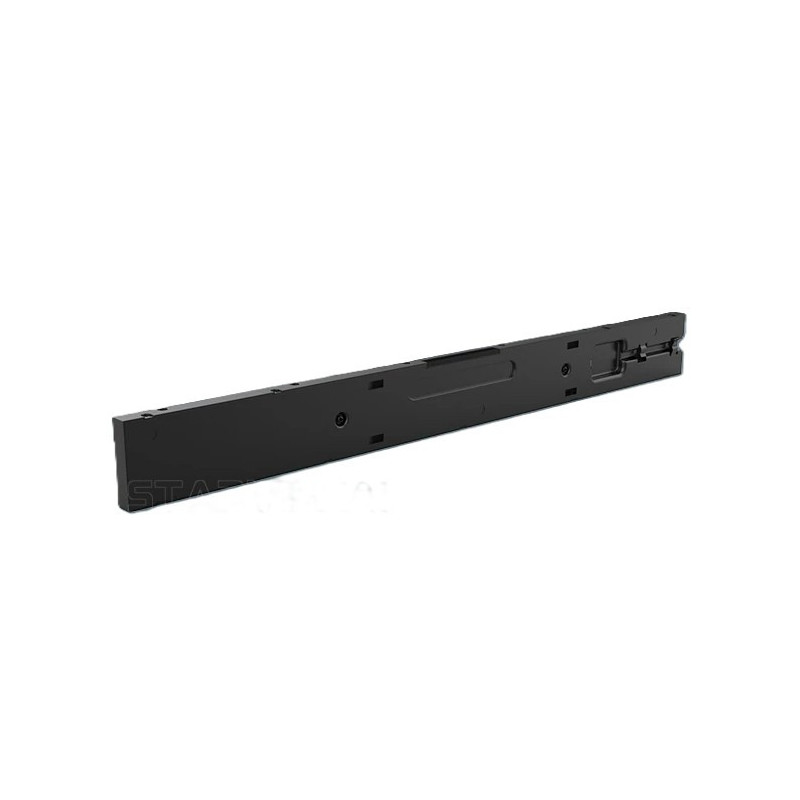

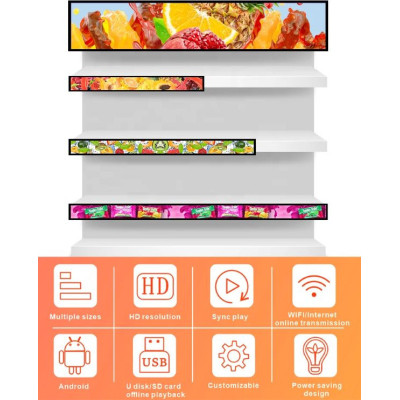

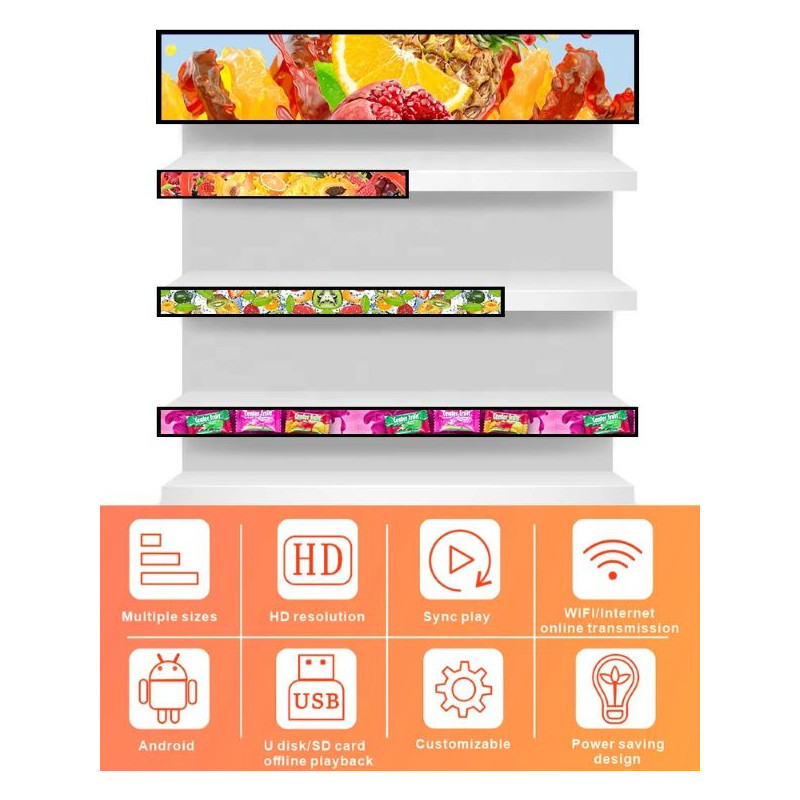

Starvisual Shelf Edge Digital Bar TFT Display
Starvisual Shelf Edge Digital Bar TFT Display is an ultra-wide commercial LCD designed for eye-catching digital signage in supermarkets, retail stores, showrooms and hospitality environments. Its stretched format fits neatly along shelf edges, allowing product promotions, pricing, advertising and brand content to be displayed directly at the point of purchase.
- Display technology: Commercial-grade TFT LCD
- Screen format: Ultra-wide stretched bar
- Installation: Shelf-edge, wall or fixture mounting
- Orientation: Landscape
- Content: Promotional video, images, pricing and product information
- Applications: Retail shelves, supermarkets, digital menu boards and transport signage
- Connectivity: HDMI, USB or integrated media-player options, depending on model
- Manufacturer: Starvisual Display
Available in a range of screen sizes, resolutions and brightness levels. Please select the required model or contact LCDTek for configuration and compatibility advice.

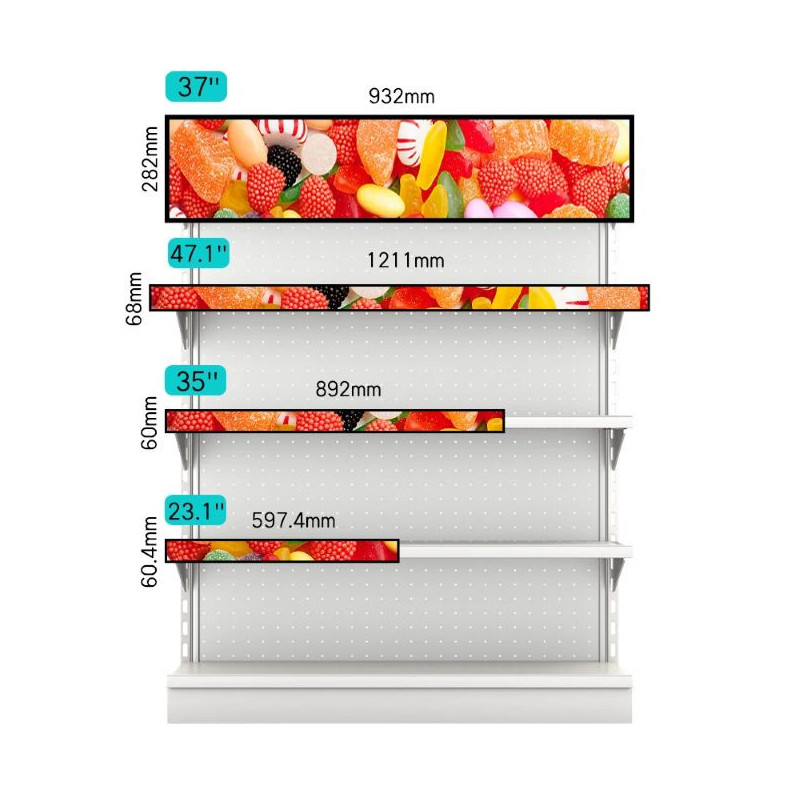

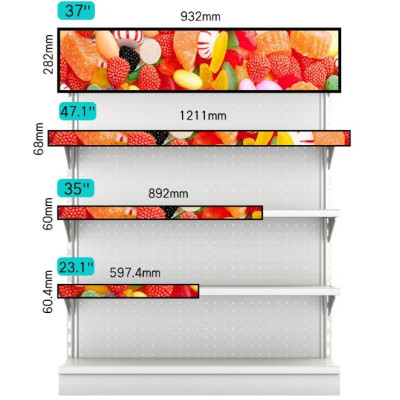

| Specification | 23.1″ | 35″ | 37″ | 47.1″ |
|---|---|---|---|---|
| Panel | ||||
| Display Size (inch) | 23.1 | 35 | 37 | 47.1 |
| Resolution | 1920 × 158 (12:1) | 2880 × 158 (18:1) | 1920 × 540 (16:4.5) | 3840 × 160 (24:1) |
| Active Display Area (mm) | 585.6 × 48.19 | 878.4 × 48.19 | 899.7 × 253.04 | 1196.16 × 49.84 |
| Aspect Ratio | 12:1 | 18:1 | 16:4.5 | 24:1 |
| Brightness (cd/m²) | 350–500 | 350–500 | 350–700 | 350–700 |
| Contrast Ratio (Typ.) | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| Viewing Angle (H/V) | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° |
| Color Depth | 16.7M | 16.7M | 16.7M | 16.7M |
| Pixel Pitch (mm) | 0.283 × 0.283 | 0.283 × 0.283 | 0.330 × 0.330 | 0.330 × 0.330 |
| Response Time (G-to-G) | 6.5 ms | 6.5 ms | 6.5 ms | 6.5 ms |
| Operation Hours | 24/7 | 24/7 | 24/7 | 24/7 |
| Sound | 5W, 8Ω (2 sets), Dual-channel stereo audio output | 5W, 8Ω (2 sets), Dual-channel stereo audio output | 5W, 8Ω (2 sets), Dual-channel stereo audio output | 5W, 8Ω (2 sets), Dual-channel stereo audio output |
| Power | ||||
| Power Type | Internal | Internal | Internal | Internal |
| Power Supply | AC 100–240 V~, 50/60 Hz | AC 100–240 V~, 50/60 Hz | AC 100–240 V~, 50/60 Hz | AC 100–240 V~, 50/60 Hz |
| Maximum Power Consumption (W/h) | 20 | 20 | 25 | 30 |
| Sleep Mode | <0.5 W | <0.5 W | <0.5 W | <0.5 W |
| Off Mode | <0.5 W | <0.5 W | <0.5 W | <0.5 W |
| Mechanical Specifications | ||||
| Protection Glass | N/A | N/A | N/A | N/A |
| Stand Type | Wall mount | Wall mount | Wall mount | Wall mount |
| Environmental Conditions | ||||
| Operating Temperature | 0°C–45°C | 0°C–45°C | 0°C–45°C | 0°C–45°C |
| Storage Temperature | -10°C–55°C | -10°C–55°C | -10°C–55°C | -10°C–55°C |
| Operating Humidity | 10–80% | 10–80% | 10–80% | 10–80% |
| Storage Humidity | 5–95% | 5–95% | 5–95% | 5–95% |
| OS / Media Player | ||||
| Processor | PX30, 1.8 GHz, Octa-core | PX30, 1.8 GHz, Octa-core | PX30, 1.8 GHz, Octa-core | PX30, 1.8 GHz, Octa-core |
| RAM | 1 GB DDR3 | 1 GB DDR3 | 1 GB DDR3 | 1 GB DDR3 |
| Built-in Memory | 8 GB FLASH | 8 GB FLASH | 8 GB FLASH | 8 GB FLASH |
| USB Ports | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST |
| LAN | 10M/100M Ethernet (Network version only) | 10M/100M Ethernet (Network version only) | 10M/100M Ethernet (Network version only) | 10M/100M Ethernet (Network version only) |
| External Memory | 8 GB SD card (up to 32 GB) | 8 GB SD card (up to 32 GB) | 8 GB SD card (up to 32 GB) | 8 GB SD card (up to 32 GB) |
| Multimedia Formats | Video: MPG, AVI, MP4, RM, RMVB, TS; Audio: MP3, WMA; Image: JPG, GIF, BMP, PNG | Same | Same | Same |
| Media Resolution Support | 1920 × 540 | 1920 × 540 | 1920 × 540 | 1920 × 540 |
| Wi-Fi | 802.11 b/g/n (Network version only) | 802.11 b/g/n (Network version only) | 802.11 b/g/n (Network version only) | 802.11 b/g/n (Network version only) |
| Operating System | Android 8.0 / 9.0 | Android 8.0 / 9.0 | Android 8.0 / 9.0 | Android 8.0 / 9.0 |
| Certification | CE, RoHS | CE, RoHS | CE, RoHS | CE, RoHS |
| Accessories Included | Scheduling software, Remote control, Key, Power cable, SD card | Same | Same | Same |
| Quality Assurance | 1 Year | 1 Year | 1 Year | 1 Year |
| Packaging | Carton box / honeycomb box + wooden case | Same | Same | Same |
SD510-USBDO-SE
