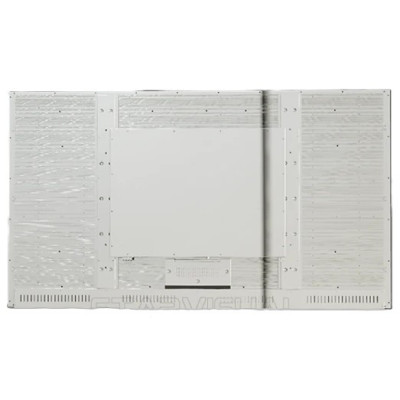

Starvisual Industrial High Brightness Open Frame TFT Panel
Starvisual Industrial High Brightness Open Frame Panel
The Starvisual Industrial High Brightness Open Frame Panel delivers clear, vibrant images in demanding commercial and industrial environments. Its slim, bezel-free open-frame design allows straightforward integration into kiosks, control cabinets, information terminals, digital signage and custom-built equipment.
A high-brightness LCD panel improves visibility in brightly lit locations, while the robust metal chassis provides a secure mounting solution for professional installations.
Key Features
- High-brightness industrial LCD display
- Open-frame construction for OEM and embedded integration
- Clear image reproduction with wide viewing angles

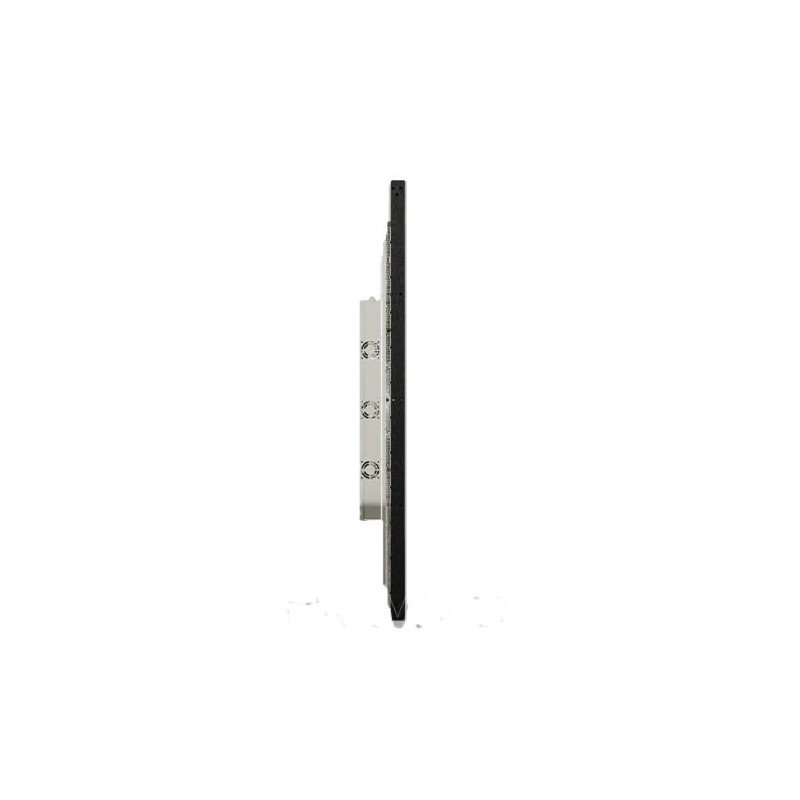

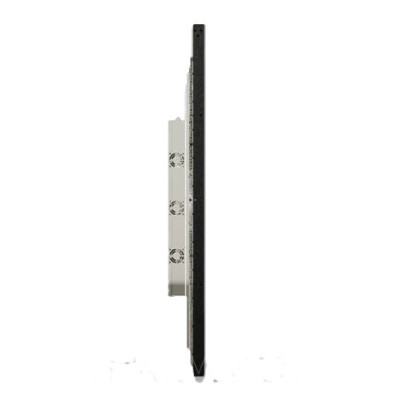

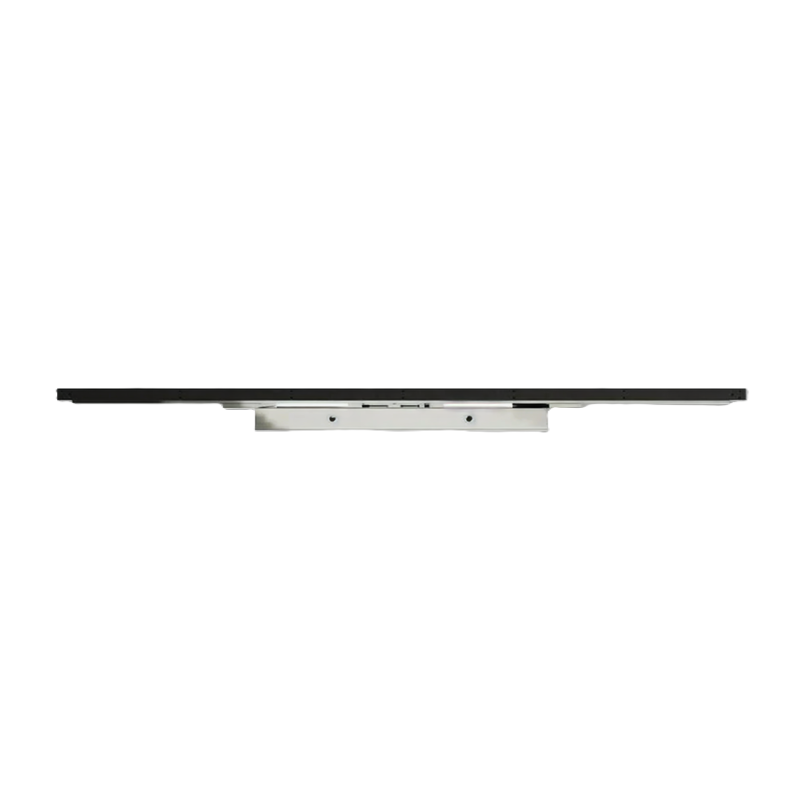

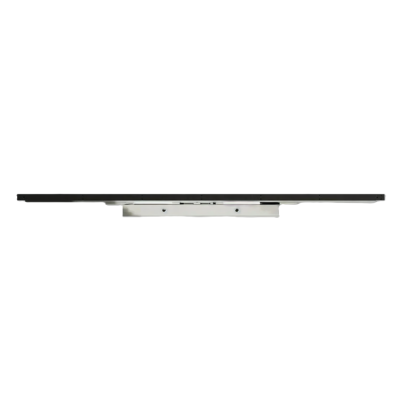

- Durable metal chassis with integrated mounting points

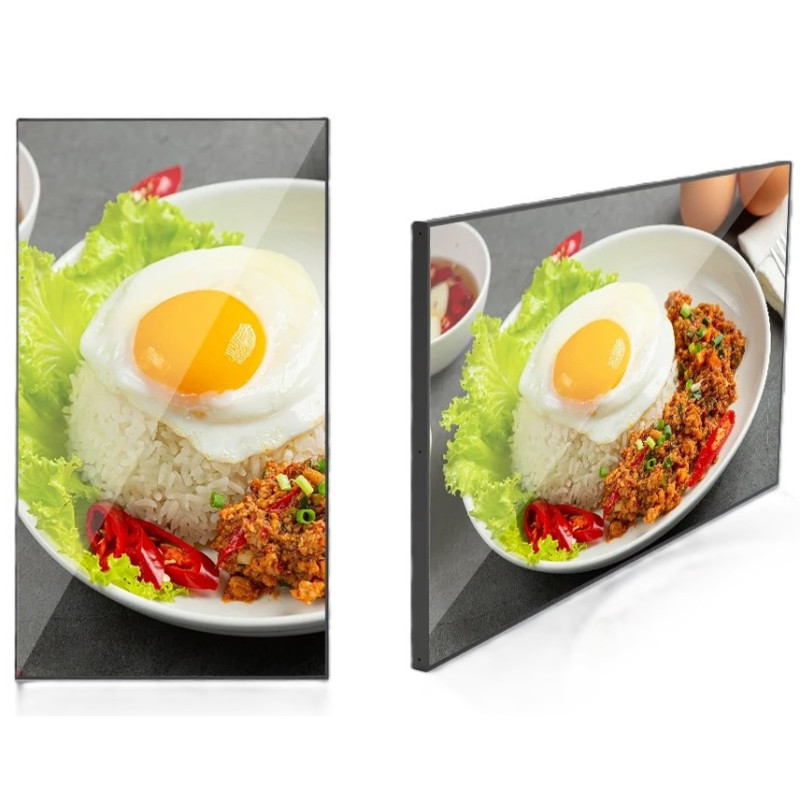

- Suitable for landscape or portrait installation*
- Multiple video input options, depending on configuration
- Optional touchscreen functionality on selected models
- Ideal for kiosks, HMI systems, vending machines and digital signage
Basic Specifications
- Brand: Starvisual Display
- Product Type: Industrial high-brightness open-frame LCD panel
- Display Format: Widescreen or standard aspect ratio, model dependent
- Brightness: High-brightness configuration
- Mounting: Open-frame / rear chassis mounting
- Orientation: Landscape or portrait*
- Video Inputs: Model-dependent digital and analogue interfaces
- Touch Options: Non-touch or optional touchscreen
- Colour: Black
- Applications: Industrial equipment, kiosks, control systems, retail displays and information terminals
*Available specifications, connections, brightness levels and orientation support vary by screen size and model. Please check the relevant technical datasheet or contact LCDTek before ordering.
Technical Specifications – High-Brightness Open Frame Display (Model: SD411-OF-DS)
| Category | Specification | 55″ | 65″ | 75″ |
|---|---|---|---|---|
| Panel | Display Size (inch) | 55″ | 65″ | 75″ |
| Resolution | 1920×1080 (16:9) | 1920×1080 (16:9) | 1920×1080 (16:9) | |
| Active Display Area (mm) | 1209.6 × 680.4 | 1428.5 × 803.5 | 1650.3 × 928 | |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | |
| Brightness (cd/m²) | 3000 nit | 3000 nit | 3000 nit | |
| Contrast Ratio (Typ.) | 1000:1 | 1000:1 | 1000:1 | |
| Viewing Angle (H/V) | 178°/178° | 178°/178° | 178°/178° | |
| Color | 16.7M | 16.7M | 16.7M | |
| Response Time (G-to-G) | 6ms | 6ms | 6ms | |
| Operation Hour | 24/7 | 24/7 | 24/7 | |
| Sound | Loud Speaker | 5W, 8Ω × 2 sets | 5W, 8Ω × 2 sets | 5W, 8Ω × 2 sets |
| Power | Type | Internal | Internal | Internal |
| Power Supply | AC 100–240V (±10%), 50/60Hz | AC 100–240V (±10%), 50/60Hz | AC 100–240V (±10%), 50/60Hz | |
| Max Power Consumption (W/h) | 180 | 210 | 240 | |
| Sleep Mode | < 0.5W | < 0.5W | < 0.5W | |
| Off Mode | < 0.5W | < 0.5W | < 0.5W | |
| Mechanical Specs | Protection Glass | YES | YES | YES |
| Stand Type | Floor-Standing | Floor-Standing | Floor-Standing | |
| Environmental | Operating Temperature | -10°C ~ 40°C | -10°C ~ 40°C | -10°C ~ 40°C |
| Storage Temperature | -20°C ~ 110°C | -20°C ~ 110°C | -20°C ~ 110°C | |
| Operating Humidity | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | |
| Storage Humidity | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | |
| OS & Monitor Solution | Chipset | NT68676 (UFG) | NT68676 (UFG) | NT68676 (UFG) |
| OS Language | Chinese, English, French, German, Italian, Spanish, etc. | Chinese, English, French, German, Italian, Spanish, etc. | Chinese, English, French, German, Italian, Spanish, etc. | |
| Resolution Ratio | 1920×1080 | 1920×1080 | 1920×1080 | |
| Refresh Rate | 60Hz (Max) | 60Hz (Max) | 60Hz (Max) | |
| Video Input | HDMI 1.4 × 1, DVI × 1, PC-RGB × 1 | HDMI 1.4 × 1, DVI × 1, PC-RGB × 1 | HDMI 1.4 × 1, DVI × 1, PC-RGB × 1 | |
| Certification | Safety | CE | CE | CE |
| Accessories | Included | Scheduling software, Remote control, Key, Power cable, SD card, Wall mount bracket | Scheduling software, Remote control, Key, Power cable, SD card, Wall mount bracket | Scheduling software, Remote control, Key, Power cable, SD card, Wall mount bracket |
| Quality Assurance | Warranty | 1 Year | 1 Year | 1 Year |
| Packaging | Type | Carton box / Honeycomb box + Wooden case | Carton box / Honeycomb box + Wooden case | Carton box / Honeycomb box + Wooden case |
SD411-OF-DS
