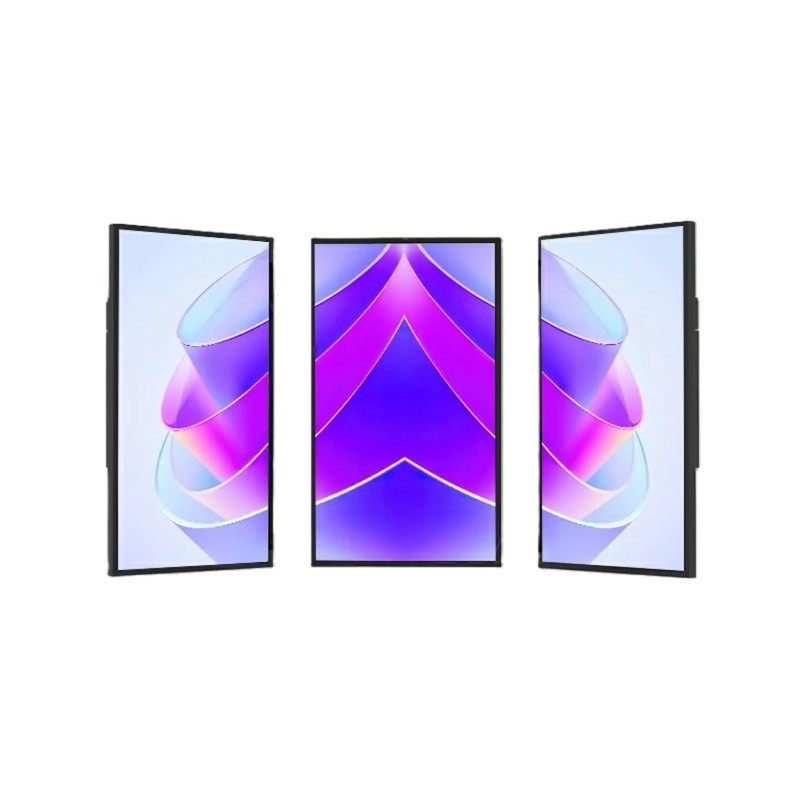

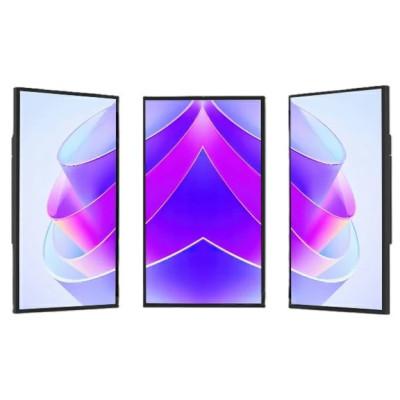

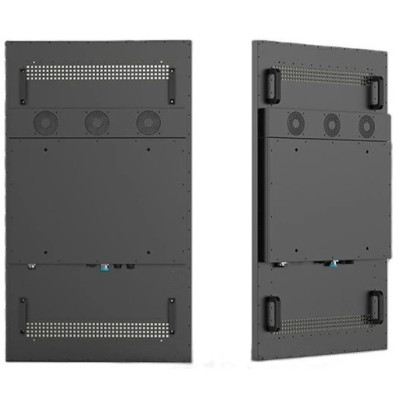

Starvisual Smart Outdoor IP66 Ultra Thin Digital Display
Starvisual Smart Outdoor IP66 Ultra Thin Digital Display delivers bright, engaging digital signage in a slim, weather-resistant enclosure. Designed for outdoor commercial environments, it is ideal for retail, hospitality, transport, leisure and public-facing information displays.
The IP66-rated housing provides complete protection against dust and resistance to powerful water jets, while smart content functionality makes it easy to present promotions, advertising and customer information.
- Display type: Outdoor commercial digital display
- Protection rating: IP66 dust and water resistant
- Design: Ultra-thin, space-saving enclosure
- Visibility: High-brightness screen for outdoor viewing
- Content: Smart digital signage playback and management
- Orientation: Suitable for portrait or landscape installation*
- Applications: Advertising, promotions, menus, wayfinding and public information
- Brand: Starvisual Display
*Screen size, brightness, resolution, connectivity and installation options may vary by selected model.
Technical Specifications – Model No. SD309T-OFS-DS
| Category | Specification | 32″ | 43″ | 49″ | 55″ |
|---|---|---|---|---|---|
| Panel | Display Size (inch) | 32″ | 43″ | 49″ | 55″ |
| Resolution | 1920×1080 (16:9) | 1920×1080 (16:9) | 1920×1080 (16:9) | 1920×1080 (16:9) | |
| Active Display Area (mm) | 700.5(H) × 394.8(V) | 941(H) × 530(V) | 1073.5(H) × 603.0(V) | 1209.6(H) × 680.4(V) | |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | |
| Brightness (cd/m²) | 2000nit | 2500nit | 2500nit | 2500nit | |
| Contrast Ratio (Typ.) | 2000:1 | 2000:1 | 2000:1 | 2000:1 | |
| Viewing Angle (H/V) | 178°/178° | 178°/178° | 178°/178° | 178°/178° | |
| Color | 16.7M | 16.7M | 16.7M | 16.7M | |
| Response Time (G-to-G) | 6ms | 6ms | 6ms | 6ms | |
| Operation Hour | 24/7 | 24/7 | 24/7 | 24/7 | |
| Sound | Loudspeaker | 5W, 8Ω × 2 sets | 5W, 8Ω × 2 sets | 5W, 8Ω × 2 sets | 5W, 8Ω × 2 sets |
| Power | Type | Internal | Internal | Internal | Internal |
| Power Supply | AC 100–240V (±10%), 50/60 Hz | AC 100–240V (±10%), 50/60 Hz | AC 100–240V (±10%), 50/60 Hz | AC 100–240V (±10%), 50/60 Hz | |
| Power Consumption (Max) | 130W | 180W | 260W | 300W | |
| Sleep Mode | < 0.5W | < 0.5W | < 0.5W | < 0.5W | |
| Off Mode | < 0.5W | < 0.5W | < 0.5W | < 0.5W | |
| Mechanical Specs | Protection Glass | AR anti-reflection glass | AR anti-reflection glass | AR anti-reflection glass | AR anti-reflection glass |
| Housing Lifetime | 7 years | 7 years | 7 years | 7 years | |
| IP Rating | IP66 | IP66 | IP66 | IP66 | |
| Anti-hazard Classification | IK10 | IK10 | IK10 | IK10 | |

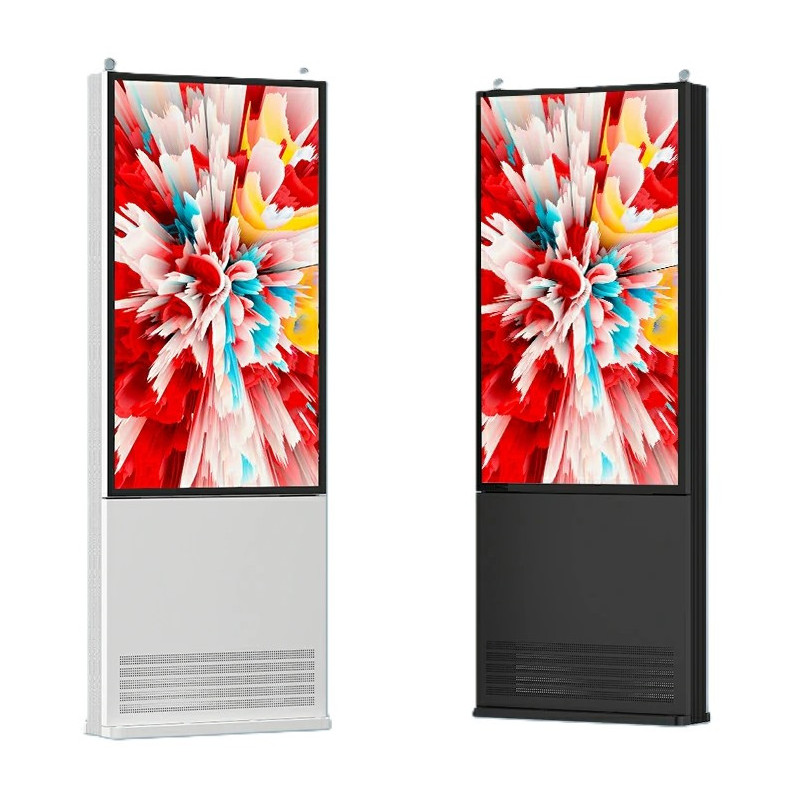

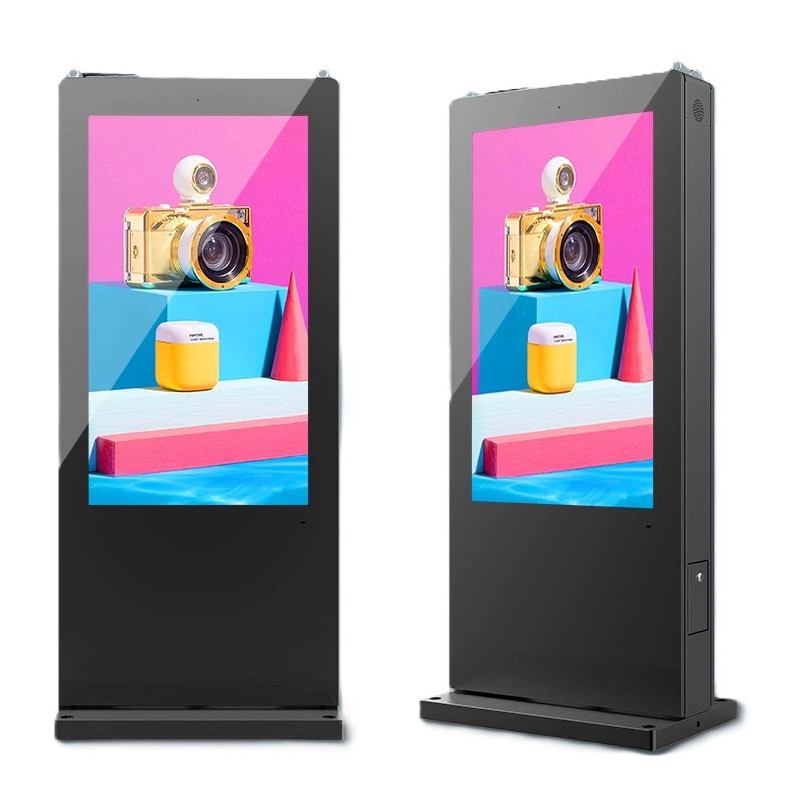

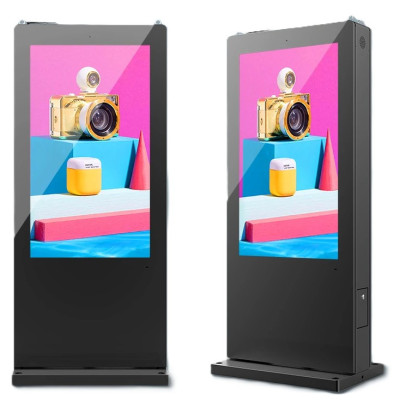

| Stand Type | Wall-mounted / Ceiling / Freestanding | Wall-mounted / Ceiling / Freestanding | Wall-mounted / Ceiling / Freestanding | Wall-mounted / Ceiling / Freestanding | |
| Environmental | Operating Temp. | -30°C ~ 50°C | -30°C ~ 50°C | -30°C ~ 50°C | -30°C ~ 50°C |
| Storage Temp. | -30°C ~ 50°C | -30°C ~ 50°C | -30°C ~ 50°C | -30°C ~ 50°C | |
| Operating Humidity | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | |
| Storage Humidity | 5% ~ 98% | 5% ~ 98% | 5% ~ 98% | 5% ~ 98% | |

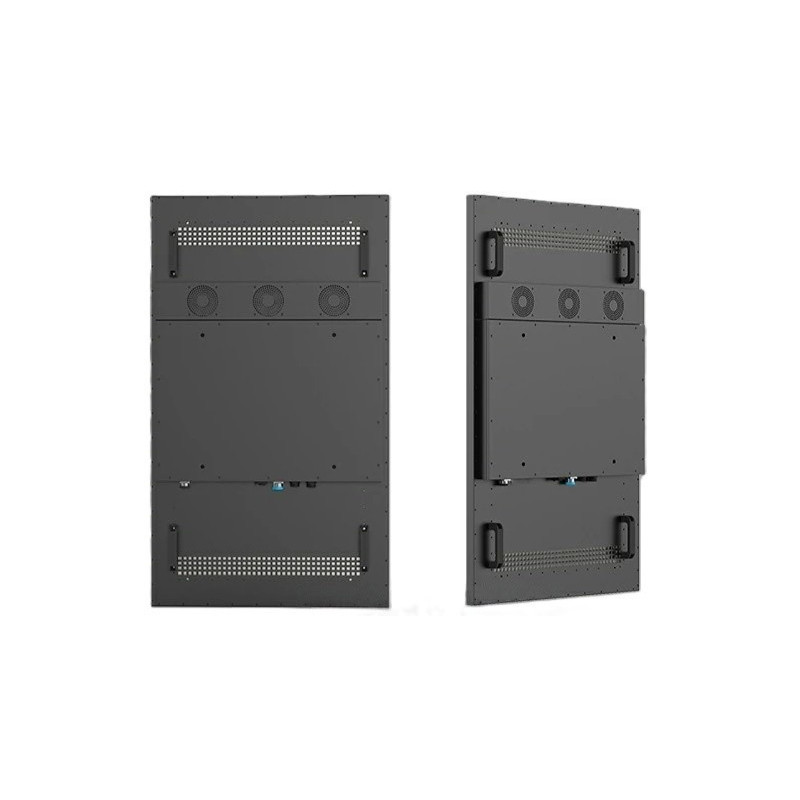

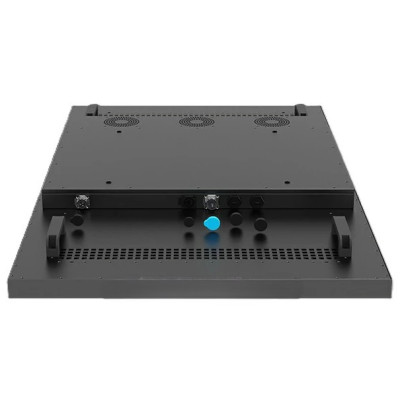

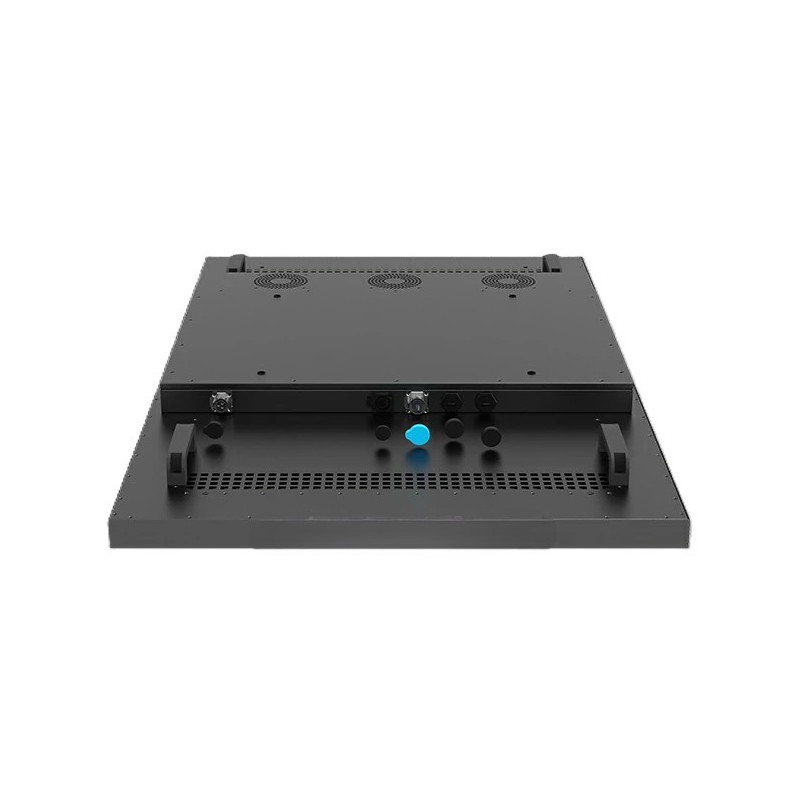

| Cooling System | Turbofan & cross-flow fan / Air conditioning (optional) | Turbofan & cross-flow fan / Air conditioning (optional) | Turbofan & cross-flow fan / Air conditioning (optional) | Turbofan & cross-flow fan / Air conditioning (optional) | |
| OS & Media Player | Processor | Rockchip® RK3568 (1.8GHz, Quad-core) | Same | Same | Same |
| RAM | 2GB | 2GB | 2GB | 2GB | |
| Flash | 16GB EMMC | 16GB EMMC | 16GB EMMC | 16GB EMMC | |
| USB | USB2.0 HOST × 2 | USB2.0 HOST × 2 | USB2.0 HOST × 2 | USB2.0 HOST × 2 | |
| LAN | 10M/100M Ethernet (network version only) | Same | Same | Same | |
| External Memory | 8GB SD card (up to 32GB) | Same | Same | Same | |
| Multimedia Support | Video: MPG, AVI, MP4, RM, RMVB, TS Audio: MP3, WMA Image: JPG, GIF, BMP, PNG |
Same | Same | Same | |
| Media Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | |
| Wi-Fi | 802.11 b/g/n (network version only) | Same | Same | Same | |
| Operating System | Android 11 | Android 11 | Android 11 | Android 11 | |
| Certification | Safety | IP66 | IP66 | IP66 | IP66 |
| Accessories | Included | Scheduling software, Remote control, Key, Power cable, SD card, Wall mount bracket | Same | Same | Same |
| Quality Assurance | Warranty | 1 year | 1 year | 1 year | 1 year |
| Packaging | Type | Carton box / Honeycomb box + Wooden case | Same | Same | Same |
SD309T-OFS-DS
