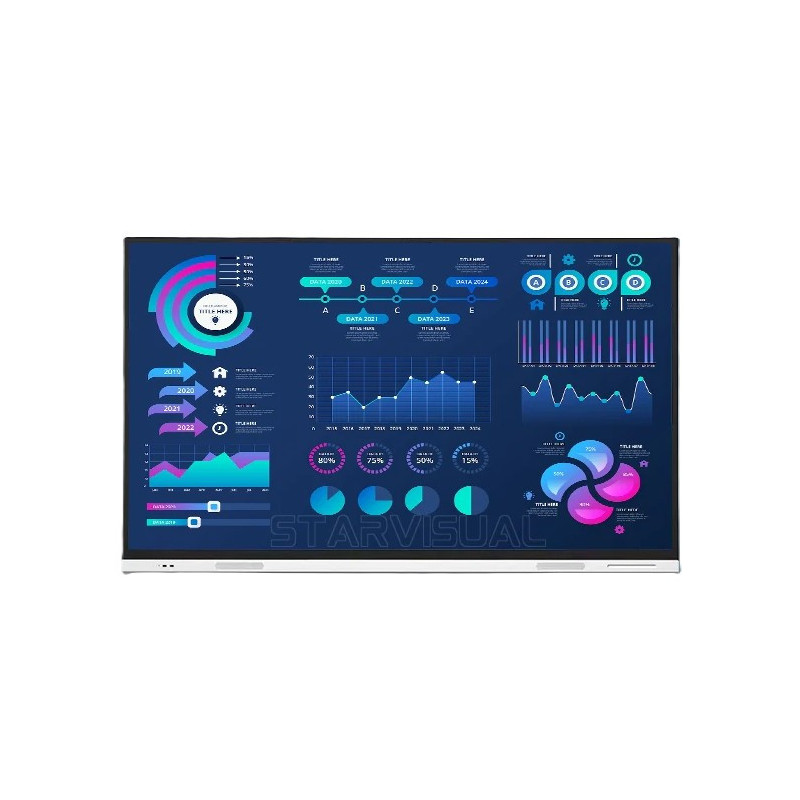

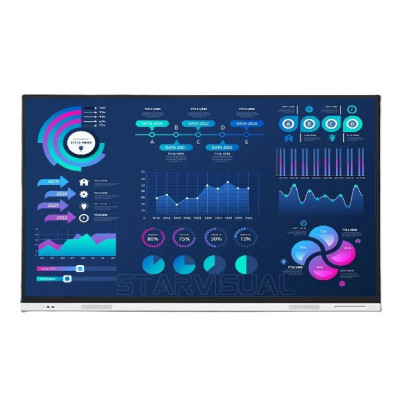

Starvisual Smart Conference Interactive Whiteboard
Transform meetings, lessons and presentations with the Starvisual Smart Conference Interactive Whiteboard. This professional all-in-one display combines a high-resolution touchscreen, digital whiteboard, wireless screen sharing and integrated audio in one easy-to-use solution.

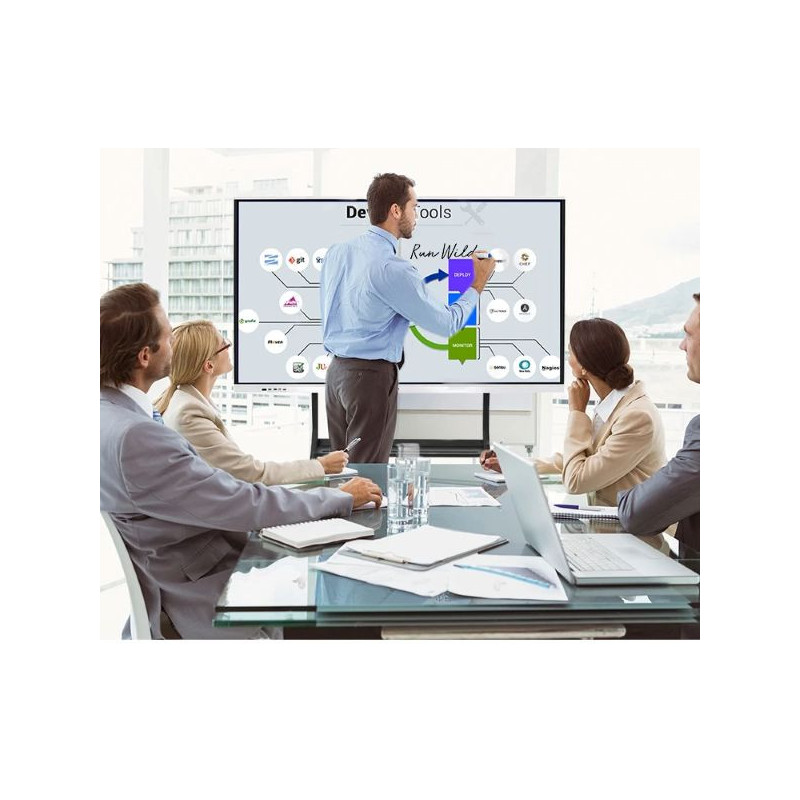

Designed for meeting rooms, classrooms and collaborative workspaces, it enables multiple users to write, annotate and present content directly on screen. Its responsive multi-touch interface and wide connectivity options make it simple to connect computers, mobile devices and optional OPS PCs.
Key Features
- Ultra HD 4K interactive display
- Responsive multi-touch writing and gesture control
- Built-in digital whiteboard and annotation tools
- Wireless screen sharing from compatible devices
- Integrated Android smart operating system

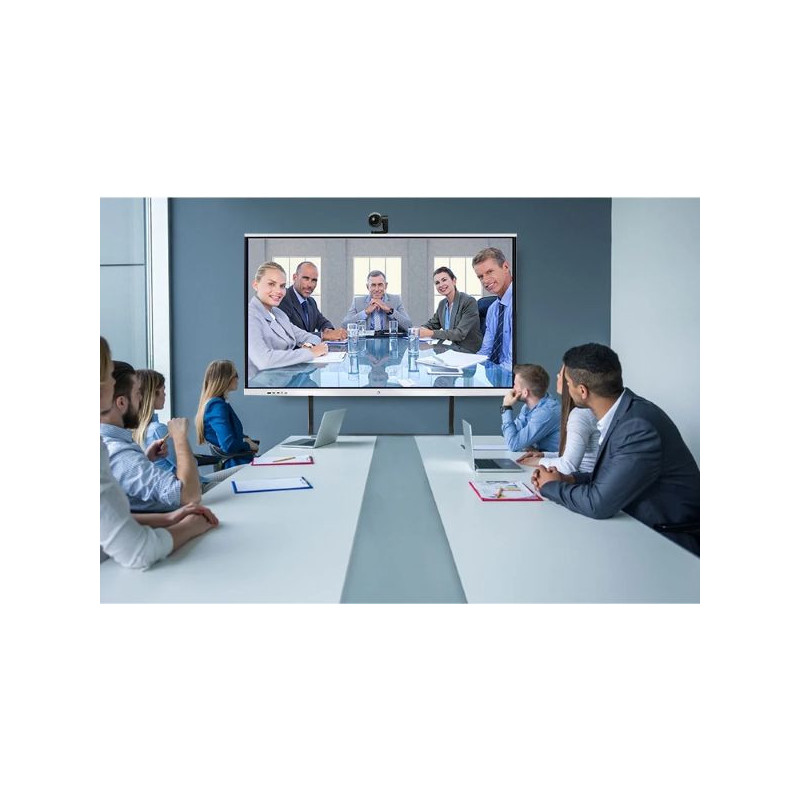

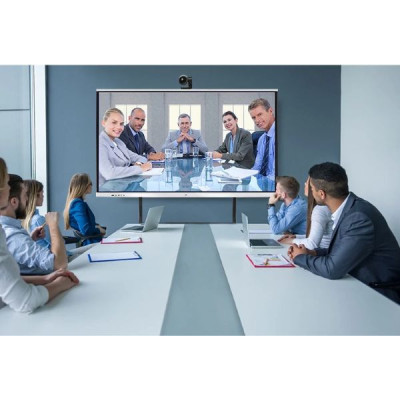

- Built-in speakers for presentations and video conferencing
- Anti-glare screen suitable for bright meeting and teaching spaces
- Optional OPS PC support for a complete Windows-based solution
Basic Specifications
- Brand: Starvisual Display
- Product type: Smart conference interactive whiteboard
- Display resolution: 4K Ultra HD
- Touch technology: Multi-touch interactive screen
- Functions: Whiteboarding, annotation, presentations and screen sharing
- Connectivity: HDMI, USB, network and wireless connectivity*
- Audio: Integrated speakers

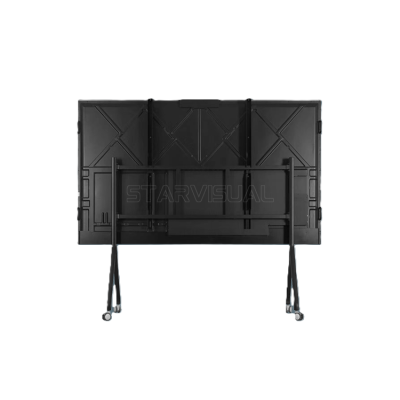

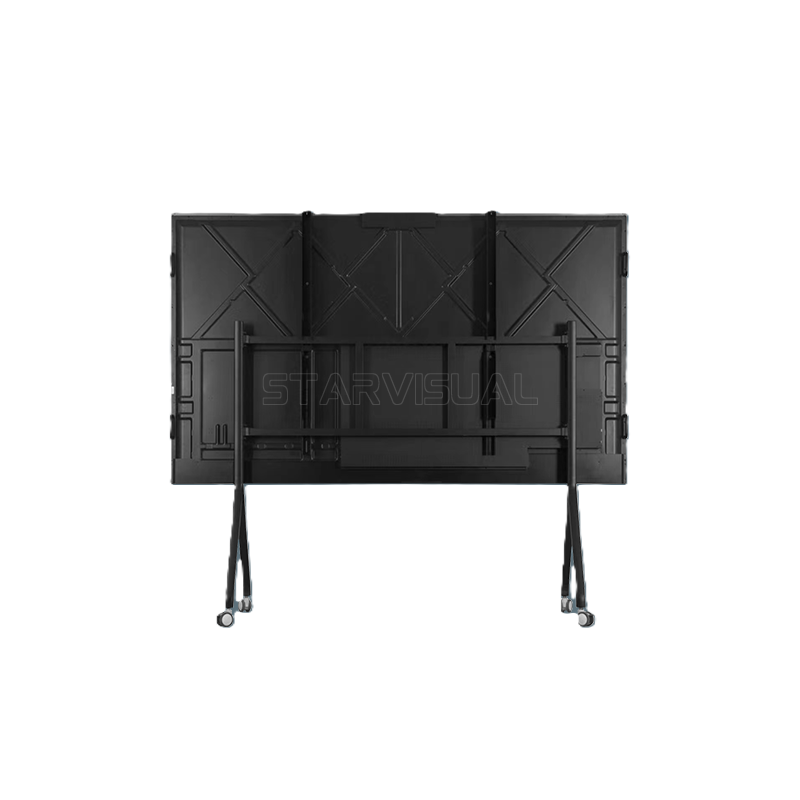

- Installation: Wall-mount or compatible mobile trolley*

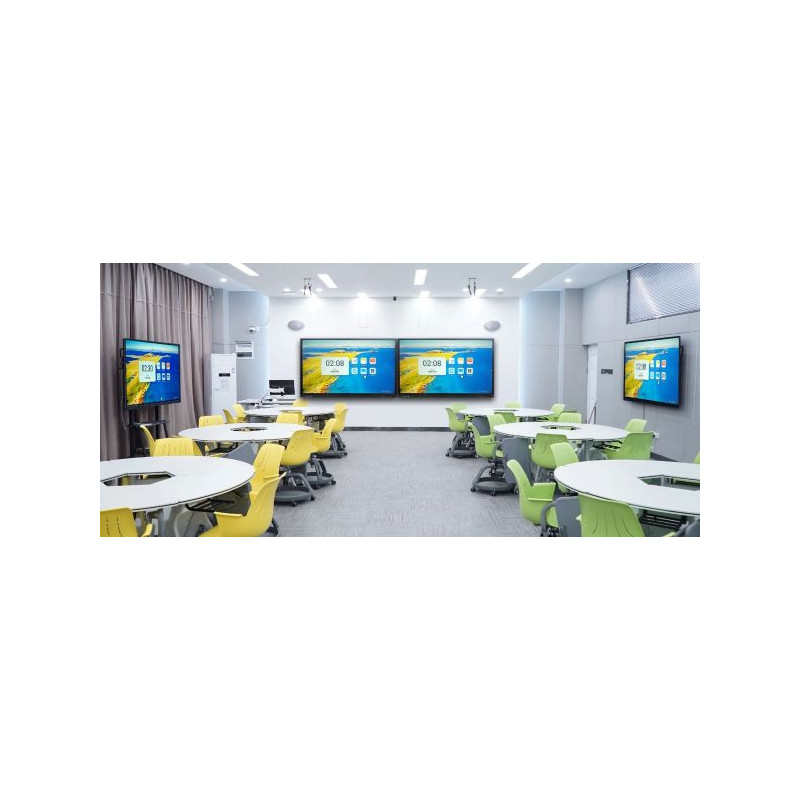

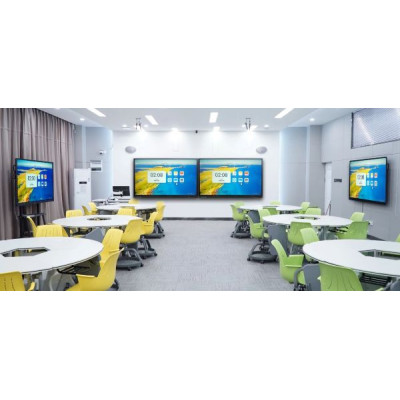

- Recommended use: Meeting rooms, classrooms, training centres and collaborative workspaces
*Screen size, Android version, memory, connection ports, touch-point capacity, mounting accessories and OPS PC availability may vary by selected model. Please check the chosen configuration before ordering.
| Specification | 65” | 75” | 85” | 98” | 110” |
|---|---|---|---|---|---|
| Model No. | SD108C-TWB-DS | SD108C-TWB-DS | SD108C-TWB-DS | SD108C-TWB-DS | SD108C-TWB-DS |
| Backlight Type | E-LED | E-LED | E-LED | E-LED | E-LED |
| Resolution | 3840 × 2160 (4K UHD) | 3840 × 2160 (4K UHD) | 3840 × 2160 (4K UHD) | 3840 × 2160 (4K UHD) | 3840 × 2160 (4K UHD) |
| Active Display Area (mm) | 1425 × 803 | 1654 × 931 | 1874 × 1057 | 2160 × 1210 | 2436.5 × 1370.5 |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Brightness | 300–350 cd/m² | 300–350 cd/m² | 300–350 cd/m² | 300–350 cd/m² | 300–350 cd/m² |
| Contrast Ratio (Typ.) | 1200:1 / 5000:1 | 1200:1 / 5000:1 | 1200:1 / 5000:1 | 1200:1 / 5000:1 | 1200:1 / 5000:1 |
| Viewing Angle (H/V) | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° | 178° / 178° |
| Color Depth | 8-bit 16.7M / 10-bit 1.07B | 8-bit 16.7M / 10-bit 1.07B | 8-bit 16.7M / 10-bit 1.07B | 8-bit 16.7M / 10-bit 1.07B | 8-bit 16.7M / 10-bit 1.07B |
| Response Time (G-to-G) | 8ms | 8ms | 8ms | 8ms | 8ms |
| Operation Hour | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
| Touch Type | 20-point IR touch | 20-point IR touch | 20-point IR touch | 20-point IR touch | 20-point IR touch |
| Writing Methods | Finger, stylus, or ≥2mm non-transparent object (dual fine pens supported) | Same | Same | Same | Same |
| Touch Resolution | 32767 × 32767 | 32767 × 32767 | 32767 × 32767 | 32767 × 32767 | 32767 × 32767 |
| Touch Accuracy | ±1mm | ±1mm | ±1mm | ±1mm | ±1mm |
| Response Time (Touch) | <8ms | <8ms | <8ms | <8ms | <8ms |
| Supported OS | Windows, Linux, Android | Same | Same | Same | Same |
| Audio Output | 20W × 2 (Dual-channel stereo, 8Ω) | Same | Same | Same | Same |
| Power Type | Internal | Internal | Internal | Internal | Internal |
| Power Supply | AC 100–240V ±10%, 50/60Hz | Same | Same | Same | Same |
| Max Power Consumption | 260W | 340W | 400W | 530W | 880W |
| Sleep/Off Mode | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W | ≤0.5W |
| Protection Glass | Anti-glare glass | Anti-glare glass | Anti-glare glass | Anti-glare glass | Anti-glare glass |
| Mount Type | Wall-mount bracket / Floor stand | Same | Same | Same | Same |
| Operating Temperature | 0–40℃ | 0–40℃ | 0–40℃ | 0–40℃ | 0–40℃ |
| Storage Temperature | -20–60℃ | -20–60℃ | -20–60℃ | -20–60℃ | -20–60℃ |
| Operating Humidity | 10–90% RH | Same | Same | Same | Same |
| Storage Humidity | 10–90% RH | Same | Same | Same | Same |
| Android OS (Built-in) | Amlogic T982, Quad-core ARM Cortex-A55, 1.9GHz | Same | Same | Same | Same |
| RAM + Flash (Android) | 4GB + 32GB | Same | Same | Same | Same |
| OS (Android) | Android 13 | Same | Same | Same | Same |
| Connectivity (Android) | Wi-Fi (802.11 b/g/n), LAN 10/100M | Same | Same | Same | Same |
| Multimedia Support | Video: MPG, AVI, MP4, RM, RMVB, TS Audio: MP3, WMA Image: JPG, GIF, BMP, PNG | Same | Same | Same | Same |
| I/O Ports | RJ45 ×1, Touch USB ×1, USB3.0 ×1, USB2.0 ×1, RS232 ×1, HDMI IN ×1, AV IN ×1, Earphone ×1, COAX ×1, Type-C ×1 | Same | Same | Same | Same |
| OPS Module (Optional) | Intel® i5 6th Gen (6400/6400T/6500/6500T), 8GB RAM + 256GB SSD | Same | Same | Same | Same |
| OPS I/O | DC 12V ×1, RJ45 ×1, VGA ×1 (output), USB ×4, HDMI ×1 (output), Audio ×1 (output), Microphone (input) | Same | Same | Same | Same |
| OPS OS | Windows 10/11 | Same | Same | Same | Same |
| Connectivity (OPS) | Ethernet (RJ45), Wi-Fi, Bluetooth (optional) | Same | Same | Same | Same |
| Certification | CE, ROHS, FCC | Same | Same | Same | Same |
| Accessories Included | Wall mount bracket, presentation software, remote control, key, power cable | Same | Same | Same | Same |
| Quality Assurance | 1 Year | 1 Year | 1 Year | 1 Year | 1 Year |
| Packaging | Carton box / Honeycomb box + Wooden case | Same | Same | Same | Same |
