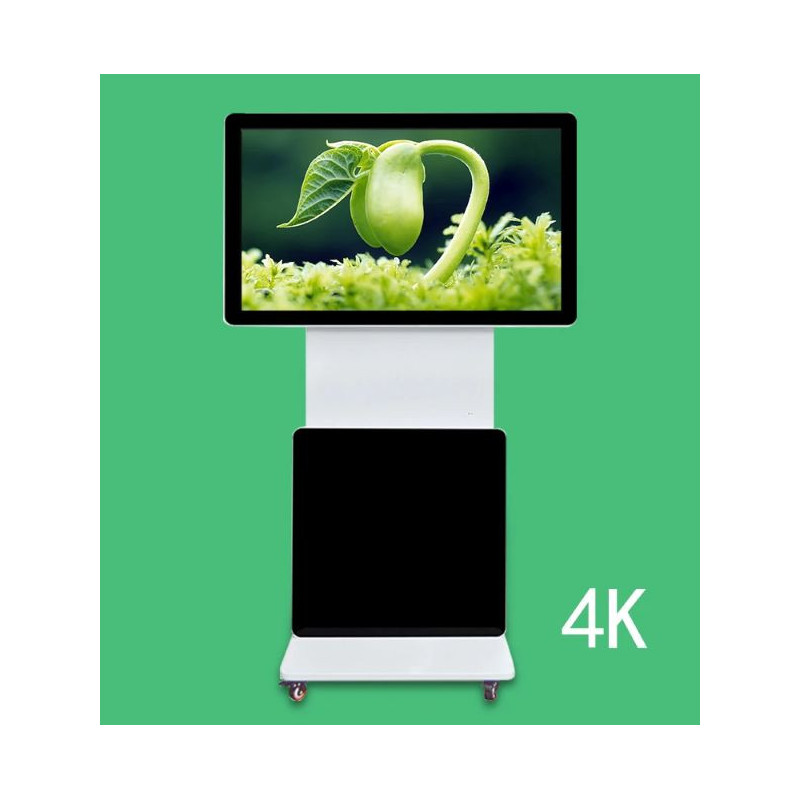

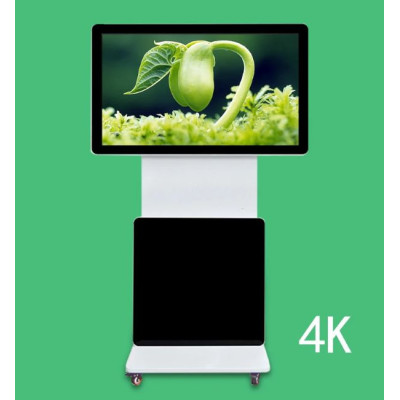

Starvisual 360° Rotating Touch LCD Digital Signage Kiosk
Starvisual 360° Rotating Touch LCD Digital Signage Kiosk is a stylish freestanding interactive display designed for retail stores, showrooms, receptions, exhibitions and other indoor commercial environments. The rotatable touchscreen can be positioned for portrait or landscape presentation, making it ideal for digital catalogues, wayfinding, self-service applications and promotional content.

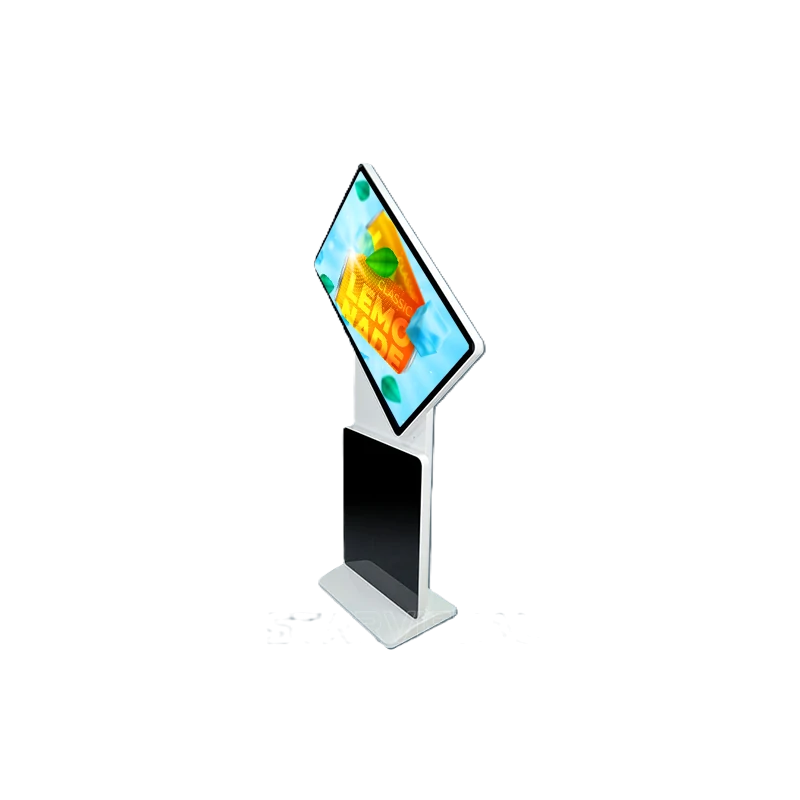

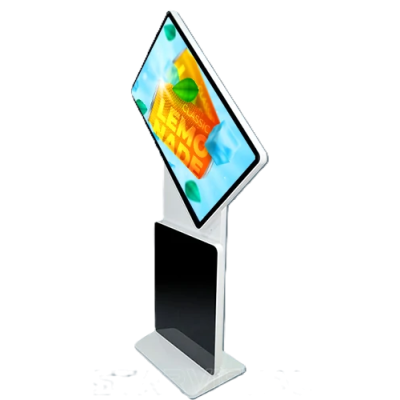

- 360° rotating LCD display for flexible positioning

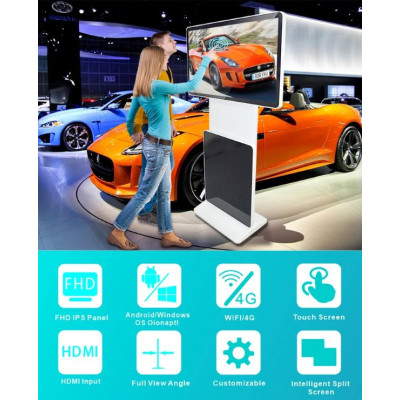

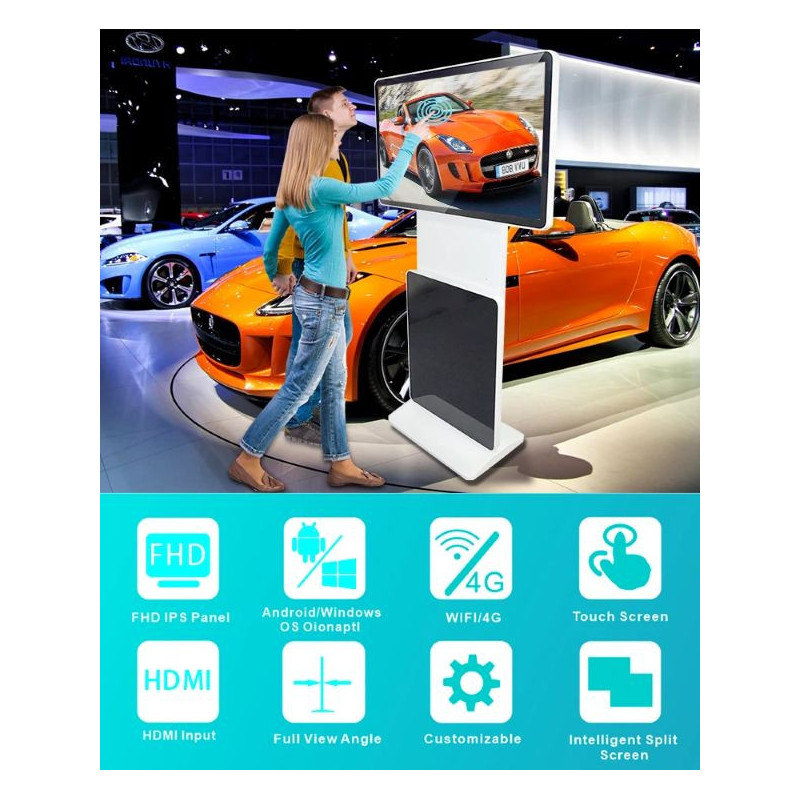

- Interactive touchscreen for engaging customer experiences

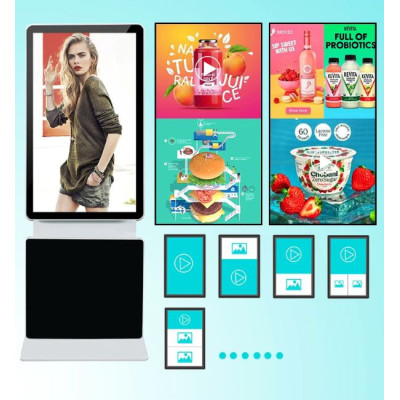

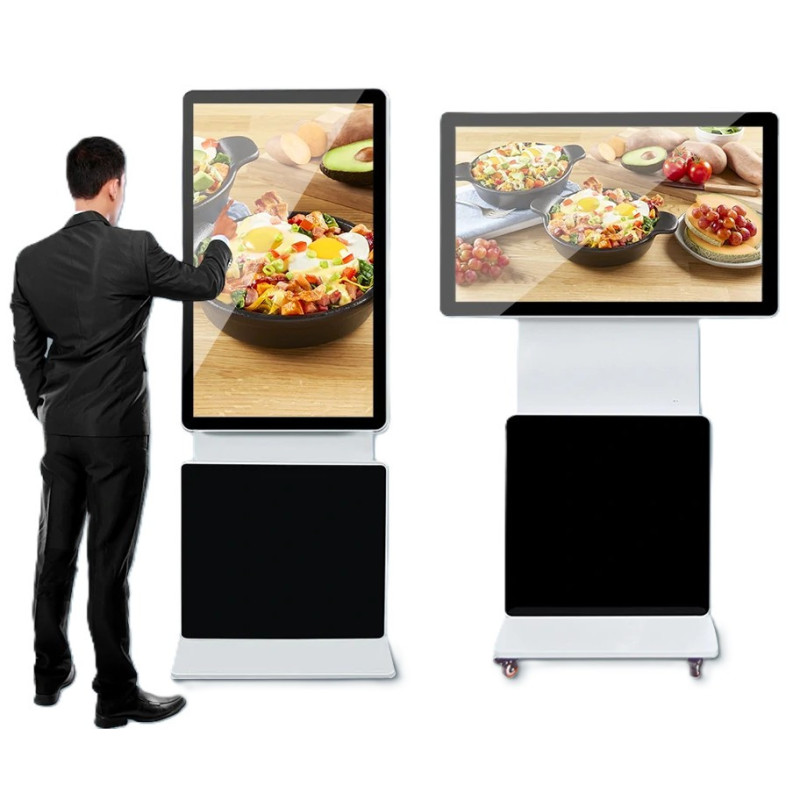

- Supports portrait and landscape presentation
- Freestanding kiosk design with a modern, professional appearance
- Suitable for advertising, product browsing, directories and information points
- Designed for indoor commercial use
Basic Specifications
- Brand: Starvisual Display
- Product Type: Rotating digital signage kiosk
- Display Technology: LCD
- Touch Function: Yes
- Rotation: 360°
- Orientation: Portrait / landscape
- Mounting: Freestanding
- Recommended Use: Indoor retail, hospitality, corporate and public information applications
Screen size, resolution, brightness, operating system, connectivity and media-player options may vary according to the selected configuration. Please contact LCDTek for available specifications and customisation options.
| Specification | 43-Inch Model | 49-Inch Model | 55-Inch Model |
|---|---|---|---|
| Panel | |||
| Display Size (inch) | 43 inches | 49 inches | 55 inches |
| Backlit Type | E-LED (Edge-lit LED) | E-LED (Edge-lit LED) | E-LED (Edge-lit LED) |
| Resolution | 1920 × 1080 pixels (Full HD, 16:9) | 1920 × 1080 pixels (Full HD, 16:9) | 1920 × 1080 pixels (Full HD, 16:9) |
| Active Display Area (mm) | 941.2 (H) × 529.4 (V) | 1073.5 (H) × 603.0 (V) | 1209.6 (H) × 680.4 (V) |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Brightness (cd/m²) | 300 cd/m² | 350 cd/m² | 350 cd/m² |
| Contrast Ratio (Typical) | 1500:1 | 1500:1 | 2000:1 |
| Viewing Angle (H/V) | 178° / 178° | 178° / 178° | 178° / 178° |
| Color Depth | 16.7 million colors | 16.7 million colors | 16.7 million colors |
| Response Time (G-to-G) | 6 ms | 6 ms | 6 ms |
| Operation Hours | 24/7 | 24/7 | 24/7 |
| Sound | Audio Output: 5W, 8Ω (2 sets) | Audio Output: 5W, 8Ω (2 sets) | Audio Output: 5W, 8Ω (2 sets) |
| Power | |||
| Power Type | Internal power supply | Internal power supply | Internal power supply |
| Power Supply | AC 100–240V, 50Hz–60Hz | AC 100–240V, 50Hz–60Hz | AC 100–240V, 50Hz–60Hz |
| Maximum Power Consumption (W/h) | 100 W | 120 W | 150 W |
| Sleep Mode Power Consumption | Less than 0.5 W | Less than 0.5 W | Less than 0.5 W |
| Off Mode Power Consumption | Less than 0.5 W | Less than 0.5 W | Less than 0.5 W |
| Mechanical Specifications | |||
| Protection Glass | Yes | Yes | Yes |
| Mount Type | Wall mount | Wall mount | Wall mount |
| Environmental Conditions | |||
| Operating Temperature | 0°C to 45°C | 0°C to 45°C | 0°C to 45°C |
| Storage Temperature | -10°C to 55°C | -10°C to 55°C | -10°C to 55°C |
| Operating Humidity | 10% to 80% | 10% to 80% | 10% to 80% |
| Storage Humidity | 5% to 95% | 5% to 95% | 5% to 95% |
| OS / Media Player | |||
| Processor | Rockchip RK3288, 1.8GHz, Quad-core | Rockchip RK3288, 1.8GHz, Quad-core | Rockchip RK3288, 1.8GHz, Quad-core |
| RAM | 2 GB | 2 GB | 2 GB |
| Built-in Memory | 8 GB FLASH memory | 8 GB FLASH memory | 8 GB FLASH memory |
| USB Ports | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST |
| LAN | 10M/100M Ethernet (Network version only) | 10M/100M Ethernet (Network version only) | 10M/100M Ethernet (Network version only) |
| External Memory Support | 8 GB SD card (up to 32 GB) | 8 GB SD card (up to 32 GB) | 8 GB SD card (up to 32 GB) |
| Multimedia Formats | Video: MPG, AVI, MP4, RM, RMVB, TS; Audio: MP3, WMA; Image: JPG, GIF, BMP, PNG | Same | Same |
| Maximum Media Resolution | 1920 × 1080 pixels | 1920 × 1080 pixels | 1920 × 1080 pixels |
| Wi-Fi | 802.11 b/g/n (Network version only) | 802.11 b/g/n (Network version only) | 802.11 b/g/n (Network version only) |
| Operating System | Android 7.1 | Android 7.1 | Android 7.1 |
| Certification | CE, RoHS | CE, RoHS | CE, RoHS |
| Accessories Included | Scheduling software, Remote control, Key, Power cable, SD card | Same | Same |
| Quality Assurance | 1 Year | 1 Year | 1 Year |
| Packaging | Carton box / honeycomb box + wooden case | Same | Same |
