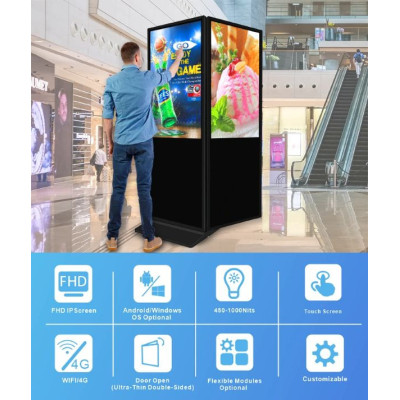

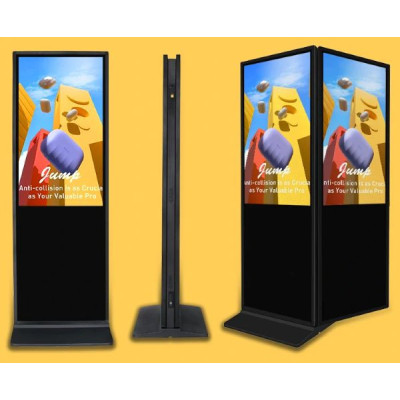

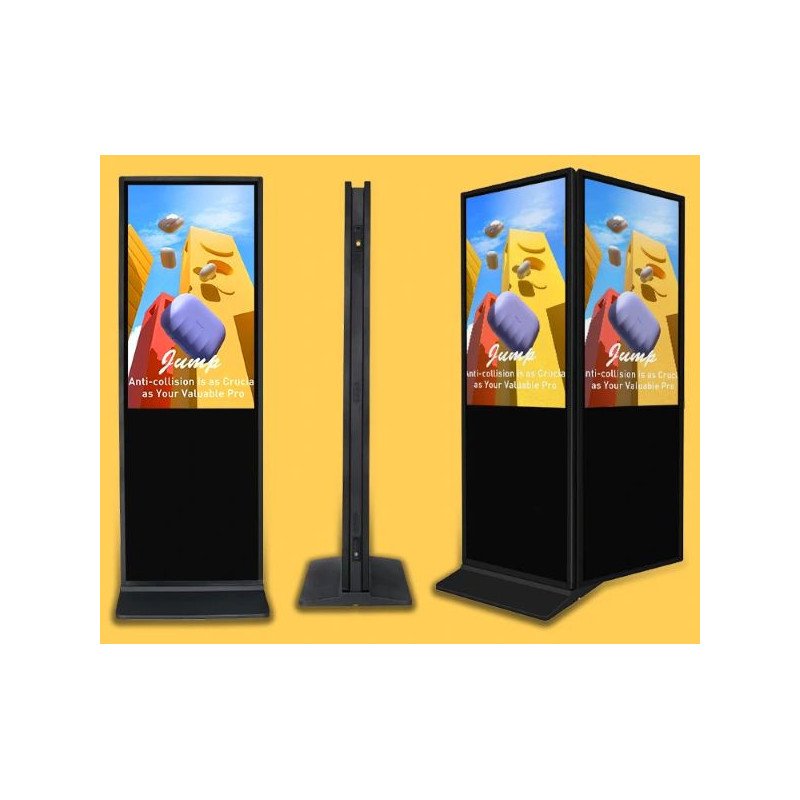

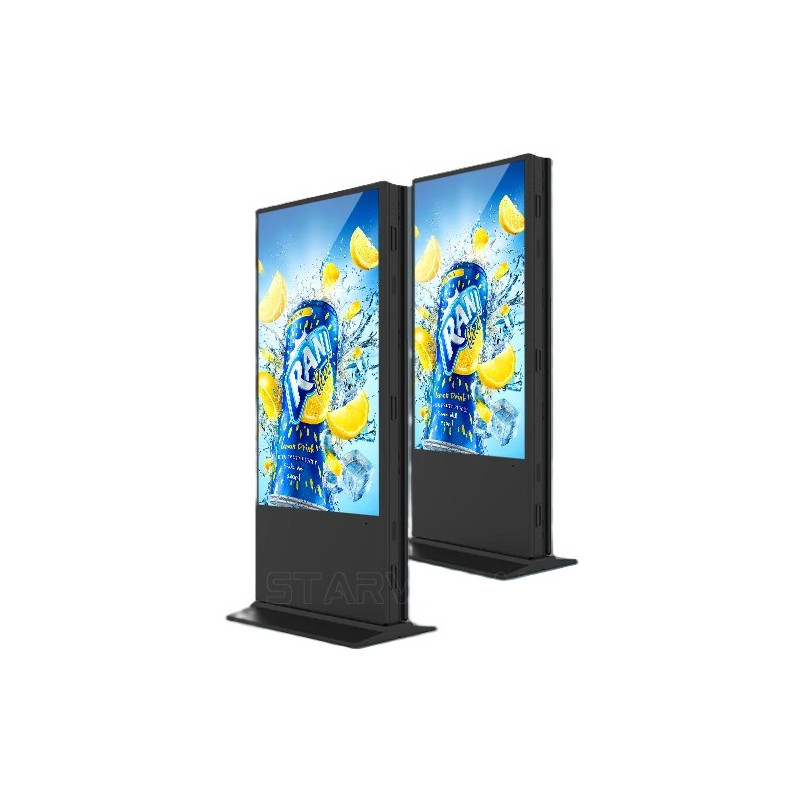

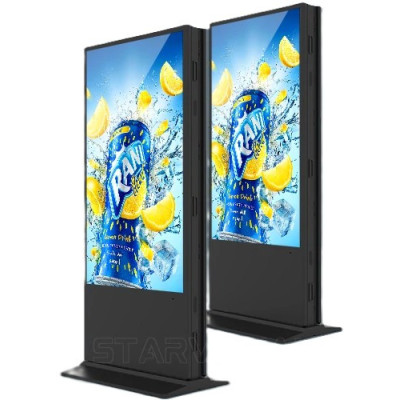

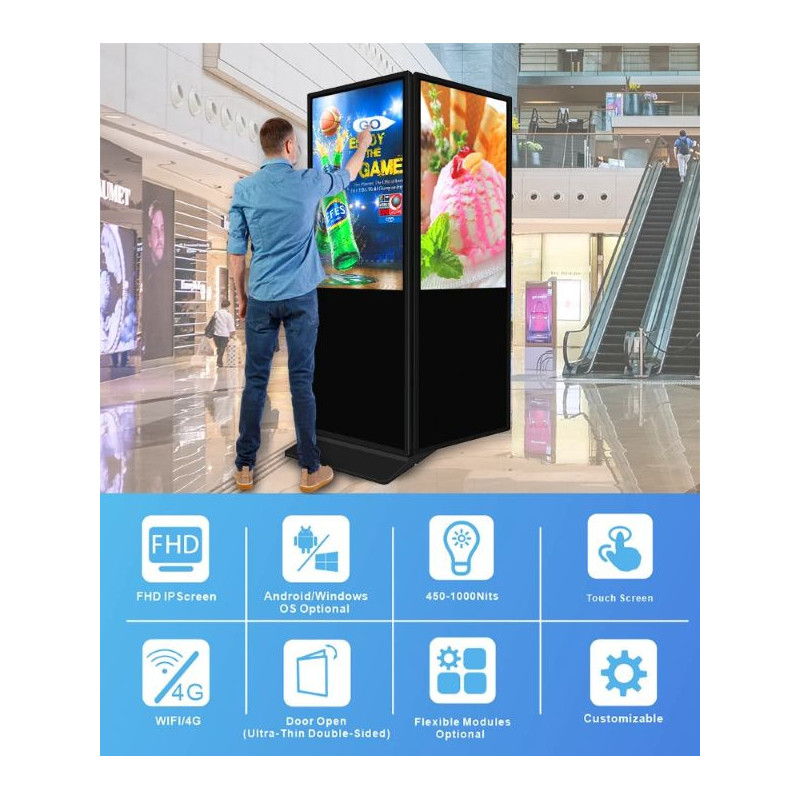

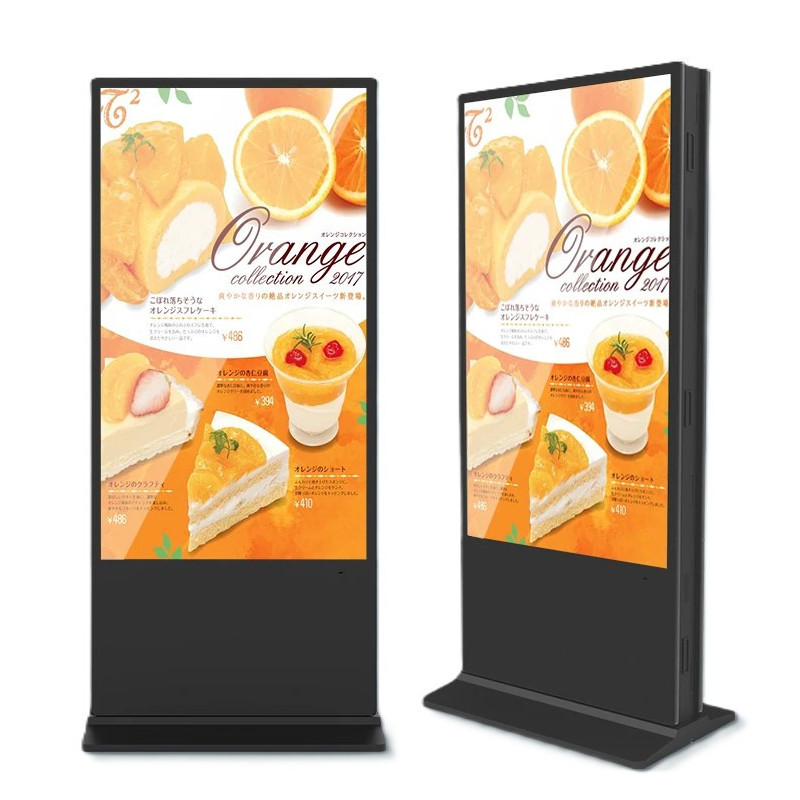

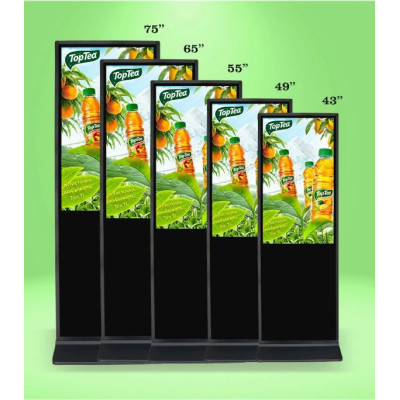

Starvisual Indoor Double-sided Digital Signage Kiosk
Maximise visibility in both directions with the Starvisual Indoor Double-sided Digital Signage Kiosk. Designed for busy retail, hospitality and corporate environments, this freestanding display combines two back-to-back commercial screens in a slim, contemporary enclosure.
Show promotional videos, digital posters, menus, directories and branded content on both sides simultaneously. An integrated media player and optional cloud-based CMS make it easy to schedule and remotely update content across one or multiple kiosks.
- Display type: Dual commercial-grade LCD screens
- Installation: Freestanding, indoor floor kiosk
- Orientation: Portrait
- Resolution: Full HD or 4K, subject to screen size and configuration
- Playback: Images, video, audio and digital signage playlists
- Content management: USB plug-and-play or optional network/cloud CMS
- Connectivity: Wi-Fi, LAN and USB options
- Operating platform: Android or Windows configurations available
- Construction: Durable metal enclosure with protective display glass
- Applications: Retail stores, shopping centres, receptions, exhibitions, hotels and transport hubs

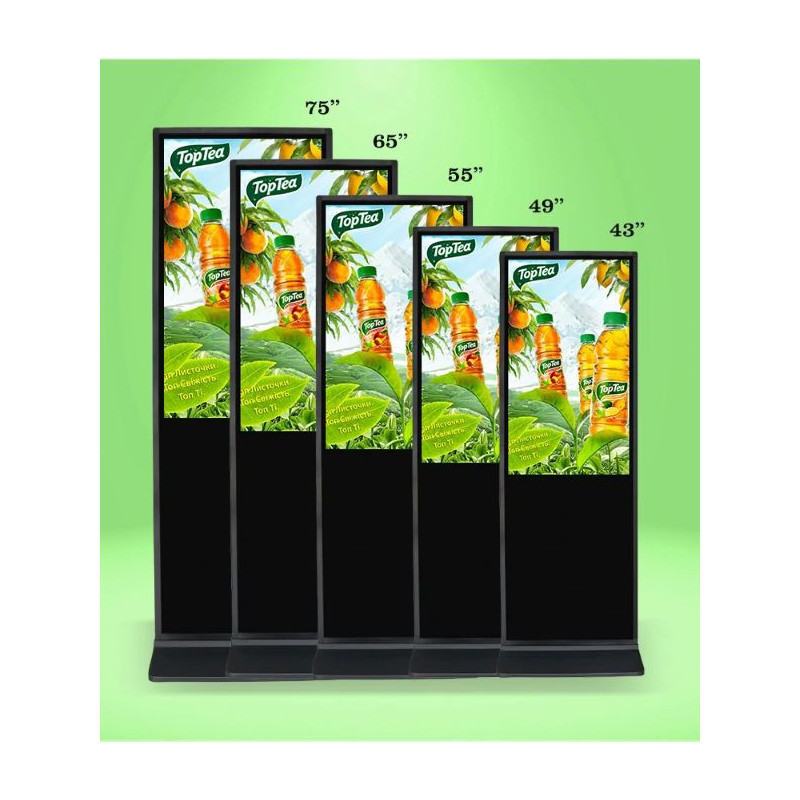

Available in multiple screen sizes and hardware configurations. Please select the required options or contact LCDTek for project pricing and configuration advice.
| Specification | 43-Inch Model | 49-Inch Model | 55-Inch Model |
|---|---|---|---|
| Dual-Panel Display | |||
| Display Size (inch) | 43 inches | 49 inches | 55 inches |
| Backlit Type | E-LED (Edge-lit LED) | E-LED (Edge-lit LED) | E-LED (Edge-lit LED) |
| Resolution | 1920 × 1080 pixels (Full HD, 16:9 aspect ratio) | 1920 × 1080 pixels (Full HD, 16:9 aspect ratio) | 1920 × 1080 pixels (Full HD, 16:9 aspect ratio) |
| Active Display Area (mm) | 941.2 (H) × 529.4 (V) | 1073.5 (H) × 603.0 (V) | 1209.6 (H) × 680.4 (V) |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Brightness (cd/m²) | 300 cd/m² | 350 cd/m² | 350 cd/m² |
| Contrast Ratio (Typical) | 1500:1 | 1500:1 | 2000:1 |
| Viewing Angle (H/V) | 178° / 178° | 178° / 178° | 178° / 178° |
| Color Depth | 16.7 million colors | 16.7 million colors | 16.7 million colors |
| Response Time (G-to-G) | 6 ms | 6 ms | 6 ms |
| Operation Hours | 24/7 | 24/7 | 24/7 |
| Sound | Audio Output: 5W, 8Ω (2 sets) | Audio Output: 5W, 8Ω (2 sets) | Audio Output: 5W, 8Ω (2 sets) |
| Power | |||
| Power Type | Internal power supply | Internal power supply | Internal power supply |
| Power Supply | AC 100–240V, 50Hz–60Hz | AC 100–240V, 50Hz–60Hz | AC 100–240V, 50Hz–60Hz |
| Maximum Power Consumption (W/h) | 100 W | 120 W | 150 W |
| Sleep Mode Power Consumption | Less than 0.5 W | Less than 0.5 W | Less than 0.5 W |
| Off Mode Power Consumption | Less than 0.5 W | Less than 0.5 W | Less than 0.5 W |
| Mechanical Specifications | |||
| Protection Glass | Yes | Yes | Yes |
| Mount Type | Wall mount | Wall mount | Wall mount |
| Environmental Conditions | |||
| Operating Temperature | 0°C to 45°C | 0°C to 45°C | 0°C to 45°C |
| Storage Temperature | -10°C to 55°C | -10°C to 55°C | -10°C to 55°C |
| Operating Humidity | 10% to 80% | 10% to 80% | 10% to 80% |
| Storage Humidity | 5% to 95% | 5% to 95% | 5% to 95% |
| OS / Media Players | |||
| Media Players | 2 × Android Media Players | 2 × Android Media Players | 2 × Android Media Players |
| Processor | Rockchip RK3288, 1.8GHz, Octa-core | Rockchip RK3288, 1.8GHz, Octa-core | Rockchip RK3288, 1.8GHz, Octa-core |
| RAM | 2 GB | 2 GB | 2 GB |
| Built-in Memory | 8 GB FLASH memory | 8 GB FLASH memory | 8 GB FLASH memory |
| USB Ports | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST |
| LAN | 10M/100M Ethernet (Network version only) | 10M/100M Ethernet (Network version only) | 10M/100M Ethernet (Network version only) |
| External Memory Support | 8 GB SD card (up to 32 GB) | 8 GB SD card (up to 32 GB) | 8 GB SD card (up to 32 GB) |
| Multimedia Formats | Video: MPG, AVI, MP4, RM, RMVB, TS; Audio: MP3, WMA; Image: JPG, GIF, BMP, PNG | Same | Same |
| Maximum Media Resolution | 1920 × 1080 pixels | 1920 × 1080 pixels | 1920 × 1080 pixels |
| Wi-Fi | 802.11 b/g/n (Network version only) | 802.11 b/g/n (Network version only) | 802.11 b/g/n (Network version only) |
| Operating System | Android 7.1 | Android 7.1 | Android 7.1 |
| Certification | CE, RoHS | CE, RoHS | CE, RoHS |
| Accessories Included | Wall mount bracket, Scheduling software, Remote control, Key, Power cable, SD card | Same | Same |
| Quality Assurance | 1 Year | 1 Year | 1 Year |
| Packaging | Carton box / honeycomb box + wooden case | Same | Same |
SD209-D-DS
