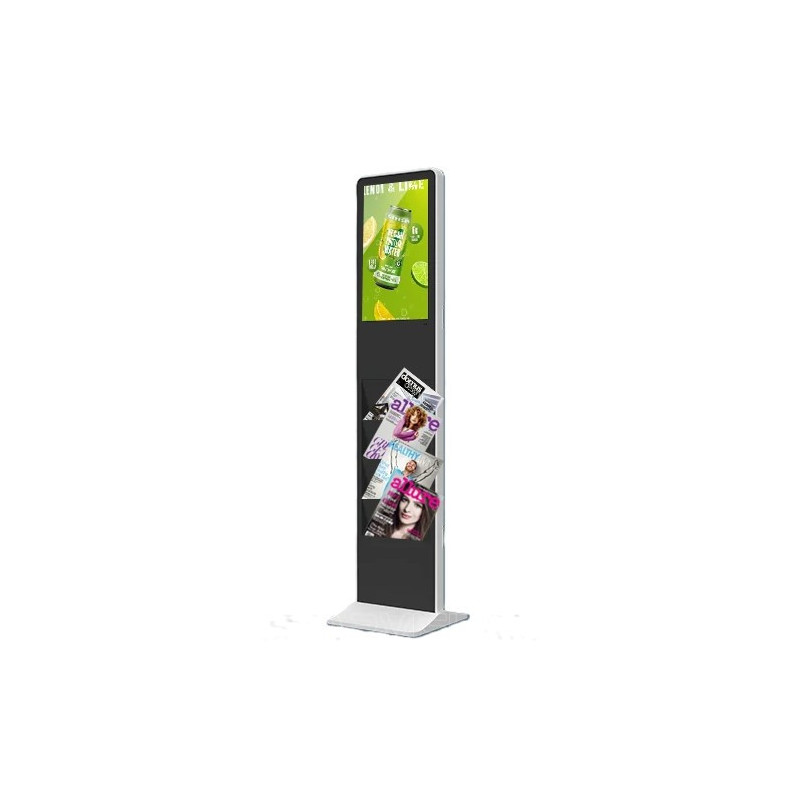

Starvisual Smart Magazine Advertising Digital Kiosk
Combine dynamic digital advertising with convenient printed literature storage. The Starvisual Smart Magazine Advertising Digital Kiosk is a stylish freestanding display designed for retail stores, showrooms, receptions, exhibitions and other customer-facing environments.
Its portrait commercial LCD screen can present promotional videos, images, menus and announcements, while the integrated magazine and brochure holders keep printed material organised and easy to access. Content can be updated through the built-in smart media player, providing a practical all-in-one advertising solution.
Key Features
- Freestanding digital signage kiosk with integrated literature holders
- Commercial portrait LCD display for images, video and promotional content
- Built-in smart media player for scheduled and continuous playback
- Supports remote network content management and local USB updates*
- Durable, space-saving enclosure suitable for public-facing locations
- Ideal for brochures, magazines, catalogues and product information
Basic Specifications
- Brand: Starvisual Display
- Product Type: Digital advertising and magazine kiosk
- Installation: Freestanding, indoor use
- Screen Orientation: Portrait
- Display Technology: Commercial LCD
- Supported Content: Images, video and digital advertising playlists
- Content Update: Network/CMS or USB, depending on configuration
- Applications: Retail, hospitality, corporate reception, education, exhibitions and public information
*Screen size, operating system, connectivity, storage, finish and CMS functionality may vary according to the selected configuration. Please contact LCDtek for available options and project-specific requirements.
| Specification | 18.5″ | 21.5″ | 32″ |
|---|---|---|---|
| Panel | |||
| Display Size (inch) | 18.5 inches | 21.5 inches | 32 inches |
| Backlit Type | E-LED (Edge-lit LED) | E-LED (Edge-lit LED) | E-LED (Edge-lit LED) |
| Resolution | 1920×1080 pixels (Full HD, 16:9) | 1920×1080 pixels (Full HD, 16:9) | 1920×1080 pixels (Full HD, 16:9) |
| Active Display Area (mm) | 409.8 × 230.4 mm | 476.84 × 268.31 mm | 700.5 × 394.8 mm |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Brightness (cd/m²) | 300 cd/m² | 300 cd/m² | 350 cd/m² |
| Contrast Ratio (Typical) | 1000:1 | 1000:1 | 1000:1 |
| Viewing Angle (H/V) | 178° / 178° | 178° / 178° | 178° / 178° |
| Color Depth | 16.7 million colors | 16.7 million colors | 16.7 million colors |
| Response Time (G-to-G) | 6 ms | 6 ms | 6 ms |
| Operation Hours | 24/7 | 24/7 | 24/7 |
| Sound | Audio Output: 5W, 8Ω (2 sets) | Audio Output: 5W, 8Ω (2 sets) | Audio Output: 5W, 8Ω (2 sets) |
| Power | |||
| Power Type | Internal power supply | Internal power supply | Internal power supply |
| Power Supply | AC 100–240V, 50Hz–60Hz | AC 100–240V, 50Hz–60Hz | AC 100–240V, 50Hz–60Hz |
| Sleep Mode Power Consumption | < 0.5 W | < 0.5 W | < 0.5 W |
| Off Mode Power Consumption | < 0.5 W | < 0.5 W | < 0.5 W |
| Mechanical Specifications | |||
| Protection Glass | Yes | Yes | Yes |
| Mount Type | Wall mount | Wall mount | Wall mount |
| Environmental Conditions | |||
| Operating Temperature | 0°C to 50°C | 0°C to 50°C | 0°C to 50°C |
| Storage Temperature | -10°C to 55°C | -10°C to 55°C | -10°C to 55°C |
| Operating Humidity | 10% to 80% | 10% to 80% | 10% to 80% |
| Storage Humidity | 5% to 95% | 5% to 95% | 5% to 95% |
| OS / Media Player | |||
| Processor | Rockchip RK3288, 1.8GHz, Quad-core | Rockchip RK3288, 1.8GHz, Quad-core | Rockchip RK3288, 1.8GHz, Quad-core |
| RAM | 2 GB | 2 GB | 2 GB |
| Built-in Memory | 8 GB FLASH memory | 8 GB FLASH memory | 8 GB FLASH memory |
| USB Ports | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST |
| LAN | 10M/100M Ethernet (Network version only) | 10M/100M Ethernet (Network version only) | 10M/100M Ethernet (Network version only) |
| External Memory Support | 8 GB SD card (up to 32 GB) | 8 GB SD card (up to 32 GB) | 8 GB SD card (up to 32 GB) |
| Multimedia Formats | Video: MPG, AVI, MP4, RM, RMVB, TS; Audio: MP3, WMA; Image: JPG, GIF, BMP, PNG | Same | Same |
| Maximum Media Resolution | 1920×1080 pixels | 1920×1080 pixels | 1920×1080 pixels |
| Wi-Fi | 802.11 b/g/n (Network version only) | 802.11 b/g/n (Network version only) | 802.11 b/g/n (Network version only) |
| Operating System | Android 7.1 | Android 7.1 | Android 7.1 |
| Certification | CE, RoHS | CE, RoHS | CE, RoHS |
| Accessories Included | Wall mount bracket, Scheduling software, Remote control, Key, Power cable, SD card | Same | Same |
| Quality Assurance | 1 Year | 1 Year | 1 Year |
| Packaging | Carton box / honeycomb box + wooden case | Same | Same |
SD209-MFS-DS
