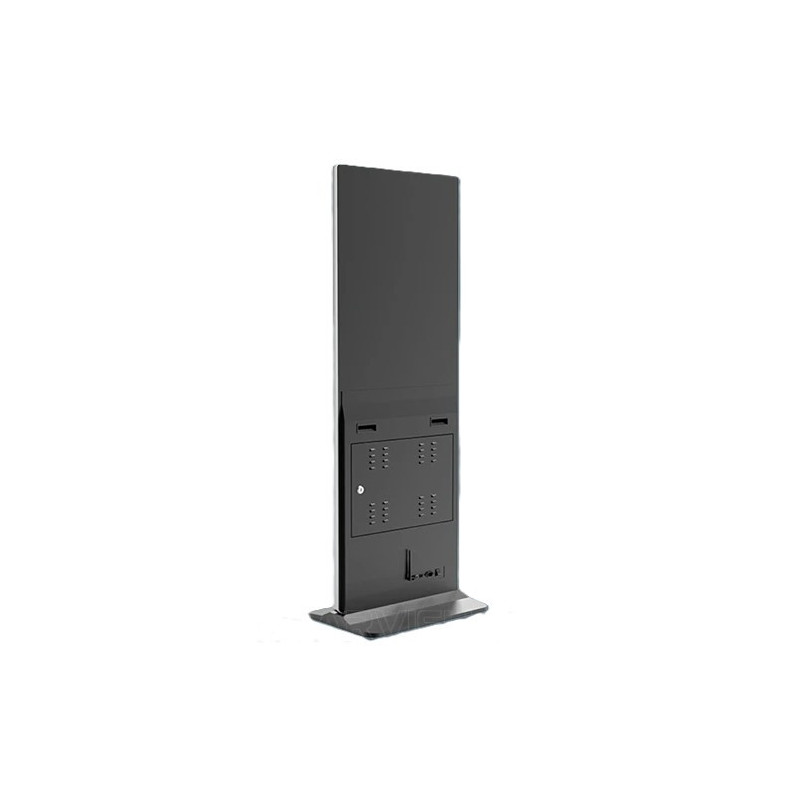

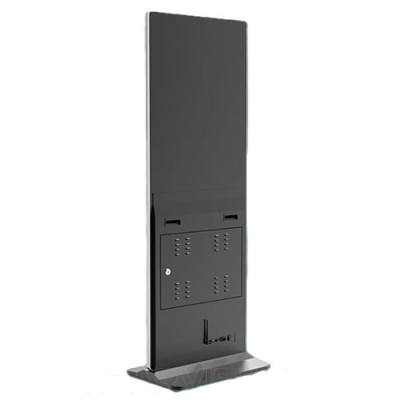

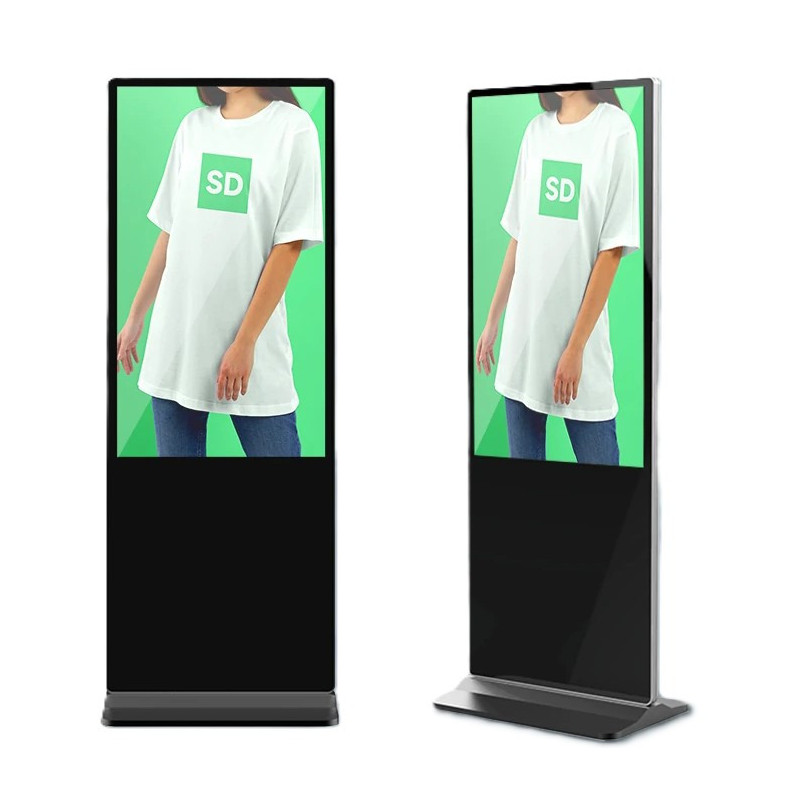

Starvisual Ultra Slim Indoor Floor Standing Digital Signage Kiosk
Starvisual Ultra Slim Indoor Floor Standing Digital Signage Kiosk delivers high-impact digital content in a sleek, space-saving enclosure. Its freestanding portrait design is ideal for retail stores, showrooms, reception areas, exhibitions, hospitality venues and other customer-facing indoor environments.
Designed for professional digital advertising, wayfinding and information display, the kiosk combines a bright commercial LCD screen with an integrated media-player solution. Display promotional videos, images, menus, announcements and branded content from one stylish unit.
- Brand: Starvisual Display
- Product type: Floor-standing digital signage kiosk
- Installation: Freestanding indoor use
- Display orientation: Portrait
- Design: Ultra-slim, modern enclosure with a compact footprint
- Content support: Images, video and digital promotional media
- Applications: Retail, hospitality, corporate, education, leisure and exhibitions
- Configuration: Available in selected screen sizes and media-player options
Please select the required model for exact screen size, connectivity, operating system and technical specifications.
SD209-FS-DS (OC) Specification
| Panel | 43″ | 49″ | 55″ |
|---|---|---|---|
| Display Size (inch) | 43 inches | 49 inches | 55 inches |
| Backlit Type | E-LED (Edge-lit LED) | E-LED (Edge-lit LED) | E-LED (Edge-lit LED) |
| Resolution | 1920×1080 pixels (Full HD, 16:9 aspect ratio) | 1920×1080 pixels (Full HD, 16:9 aspect ratio) | 1920×1080 pixels (Full HD, 16:9 aspect ratio) |
| Active Display Area (mm) | 941.2 mm (H) × 529.4 mm (V) | 1073.5 mm (H) × 603.0 mm (V) | 1209.6 mm (H) × 680.4 mm (V) |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Brightness (cd/m²) | 300 cd/m² | 350 cd/m² | 350 cd/m² |
| Contrast Ratio (Typical) | 1500:1 | 1500:1 | 2000:1 |
| Viewing Angle (Horizontal/Vertical) | 178° / 178° | 178° / 178° | 178° / 178° |
| Color Depth | 16.7 million colors | 16.7 million colors | 16.7 million colors |
| Response Time (Gray-to-Gray) | 6 milliseconds | 6 milliseconds | 6 milliseconds |
| Operation Hours | 24 hours / 7 days | 24 hours / 7 days | 24 hours / 7 days |
| Sound | Audio Output: 5W, 8Ω (2 sets) | Audio Output: 5W, 8Ω (2 sets) | Audio Output: 5W, 8Ω (2 sets) |
| Power | |||
| Power Type | Internal power supply | Internal power supply | Internal power supply |
| Power Supply | AC 100V to 240V, 50Hz~60Hz | AC 100V to 240V, 50Hz~60Hz | AC 100V to 240V, 50Hz~60Hz |
| Maximum Power Consumption | 100 W | 120 W | 150 W |
| Sleep Mode Power Consumption | Less than 0.5 W | Less than 0.5 W | Less than 0.5 W |
| Off Mode Power Consumption | Less than 0.5 W | Less than 0.5 W | Less than 0.5 W |
| Mechanical Specifications | |||
| Protection Glass | Yes | Yes | Yes |
| Mount Type | Floor standing | Floor standing | Floor standing |
| Environmental Conditions | |||
| Operating Temperature | 0°C to 45°C | 0°C to 45°C | 0°C to 45°C |
| Storage Temperature | -10°C to 55°C | -10°C to 55°C | -10°C to 55°C |
| Operating Humidity | 10% to 80% | 10% to 80% | 10% to 80% |
| Storage Humidity | 5% to 95% | 5% to 95% | 5% to 95% |
| OS / Media Player | |||
| Processor | Rockchip RK3288, 1.8GHz, Octa-core | Rockchip RK3288, 1.8GHz, Octa-core | Rockchip RK3288, 1.8GHz, Octa-core |
| RAM | 2 GB | 2 GB | 2 GB |
| Built-in Memory | 8 GB FLASH memory | 8 GB FLASH memory | 8 GB FLASH memory |

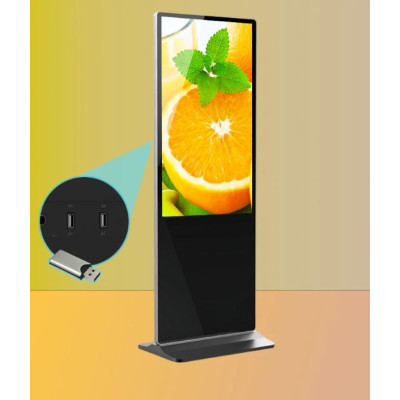

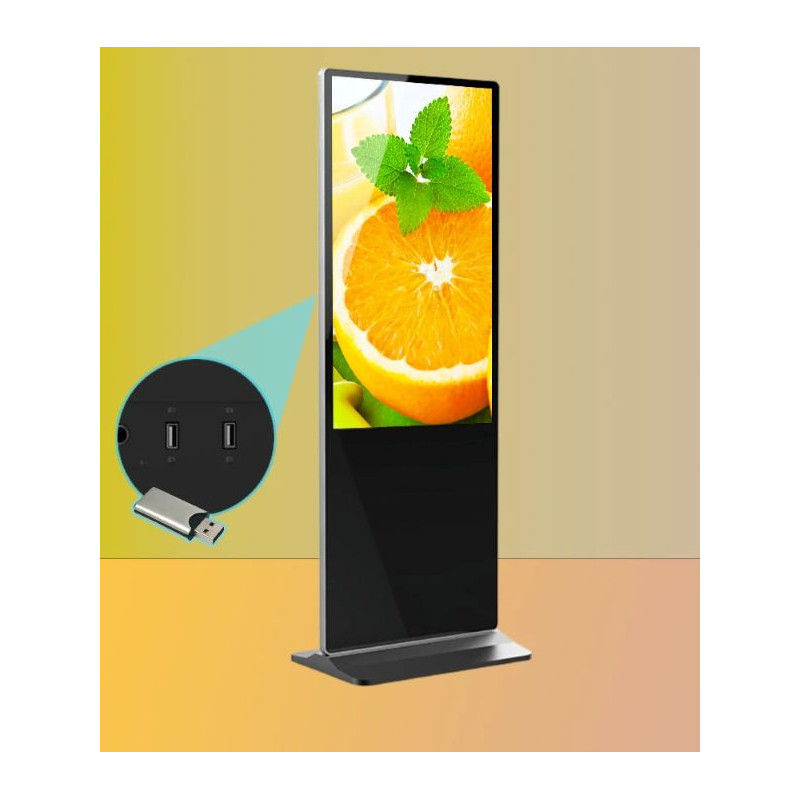

| USB Ports | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST | 2 × USB 2.0 HOST |
| LAN | 10M/100M Ethernet (Network version screen only) | 10M/100M Ethernet (Network version screen only) | 10M/100M Ethernet (Network version screen only) |
| External Memory Support | 8 GB SD card (supports up to 32 GB) | 8 GB SD card (supports up to 32 GB) | 8 GB SD card (supports up to 32 GB) |
| Multimedia Formats | Video: MPG, AVI, MP4, RM, RMVB, TS; Audio: MP3, WMA; Image: JPG, GIF, BMP, PNG | Same | Same |
| Maximum Media Resolution | 1920×1080 pixels | 1920×1080 pixels | 1920×1080 pixels |
| Wi-Fi | 802.11 b/g/n (Network version screen only) | 802.11 b/g/n (Network version screen only) | 802.11 b/g/n (Network version screen only) |
| Operating System | Android 7.1 | Android 7.1 | Android 7.1 |
| Certification | CE, RoHS | CE, RoHS | CE, RoHS |
| Accessories Included | Wall mount bracket, Scheduling software, Remote control, Key, Power cable, SD card | Same | Same |
| Quality Assurance | 1 Year | 1 Year | 1 Year |
| Packaging | Carton box / honeycomb box + wooden case | Same | Same |
