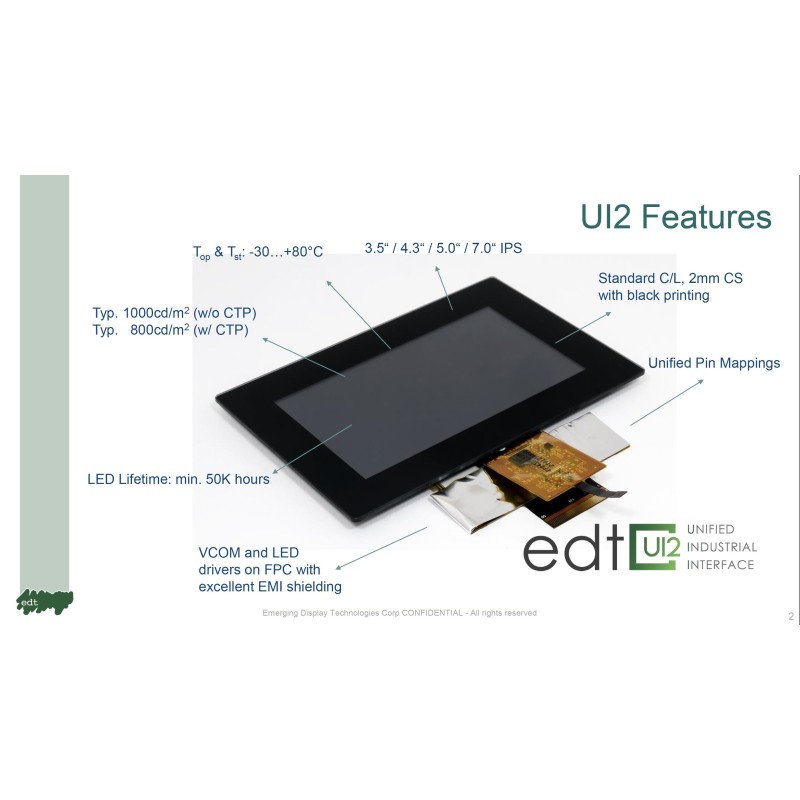

EDT 5.0″ TFT Display, 850cd/m², UI2 CTP, Standard Temperature

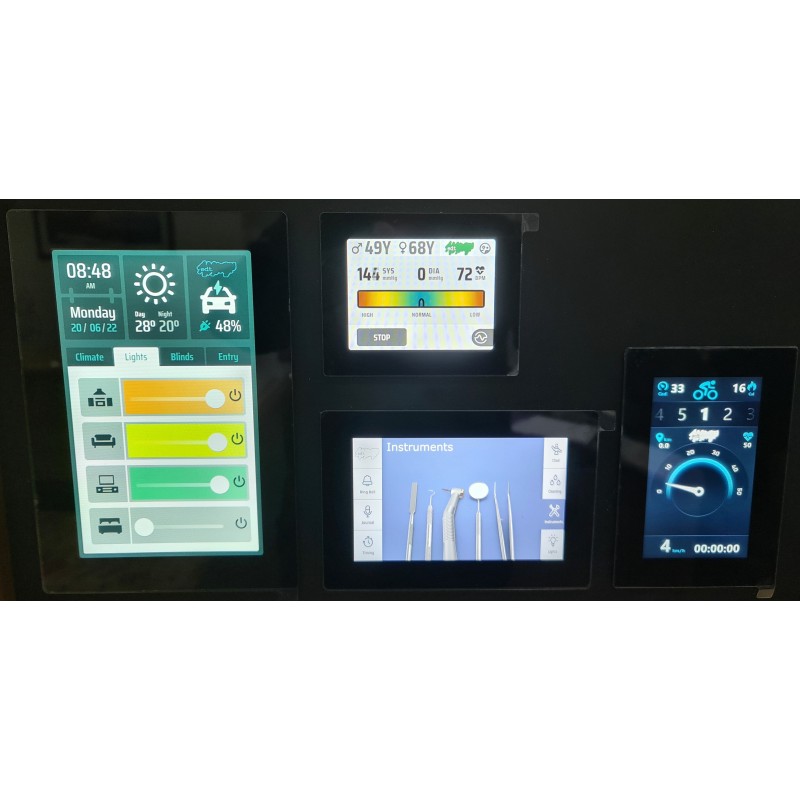

EDT 5.0-inch high-brightness display featuring an 850cd/m² LED backlight and UI2 projected capacitive touchscreen (CTP). Designed for dependable HMI, industrial and commercial applications operating within standard temperature ranges.
- Manufacturer: EDT
- Display size: 5.0 inches
- Brightness: 850cd/m²
- Touch panel: UI2 capacitive touchscreen (CTP)
- Operating temperature: Standard range
- Product type: TFT LCD display module with touch
ETML050023UDRA
Data sheet
- Resolution
- 480 (RGB) x 272 Resolution
- Active Area (W x H mm)
- 108.80 x 65.60
- Overall Dia. (W x H x D mm)
- 137.24 x 94.04 x 7.99
- Backlight Brightness
- 800 cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- RGB 24 Bit
- Diagonal
- 5.00 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -30 to +80 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
- CTP Controller IC
- Ilitek ILI2130
- Display Controller/Driver IC
- Sitronix ST7262
