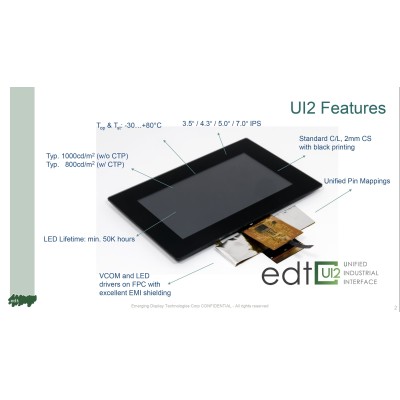

EDT 5.0″ Display 1000cd/m², UI2, Std. Op. Temp.
High-brightness 5.0-inch EDT display delivering up to 1000 cd/m² for clear, vivid image performance in demanding applications. Supplied with UI2 and designed for operation across EDT’s standard operating temperature range.
- Manufacturer: EDT
- Display size: 5.0 inches
- Brightness: 1000 cd/m²
- Configuration: UI2
- Operating temperature: EDT standard operating temperature
- Product type: Industrial display module

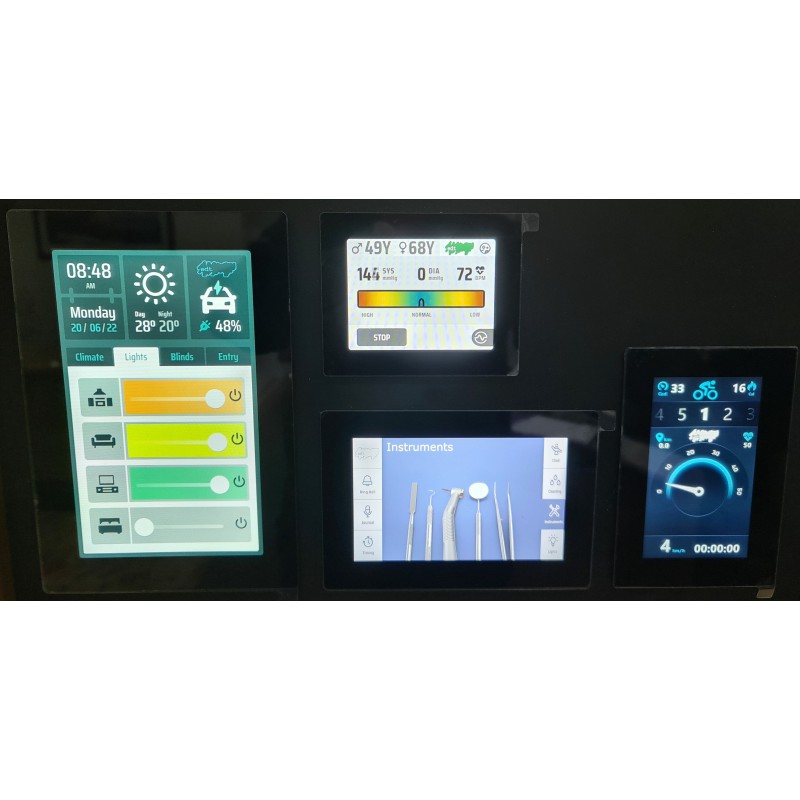

Ideal for industrial controls, embedded systems, instrumentation and other applications requiring a compact, high-brightness display.
ET050023UDBA
Data sheet
- Resolution
- 800 (RGB) x 480 Resolution
- Active Area (W x H mm)
- 95.04 x 53.86
- Overall Dia. (W x H x D mm)
- 105.50 x 67.20 x 4.50
- Backlight Brightness
- 1000 cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- RGB 24 Bit
- Diagonal
- 5.00 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -30 to +80 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
- Display Controller/Driver IC
- Sitronix ST7262
