EDT 3.5 Inch TFT Display, 1000cd/m² LCD, Extended Temp UI2 Display

High-brightness 3.5-inch EDT display designed for clear, dependable viewing in demanding industrial and outdoor-facing applications. Its 1000 cd/m² brightness improves visibility in strong ambient light, while the extended operating temperature capability supports use in challenging environments.

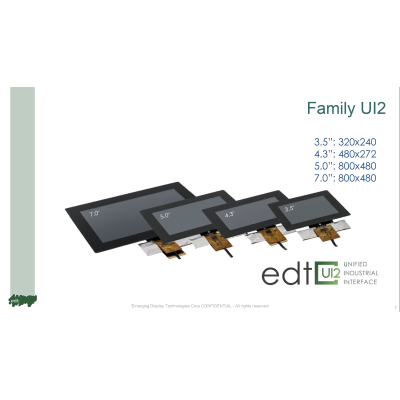

The EDT UI2 family of displays consists of 4 sizes. Each display uses IPS panels which ensures excellent readability from any viewing angle. Combined with the extended operating temperature range of -30°C to +80°C, these modules can be used in a variety of applications, whether handheld, medical or industrial.

The uniform interface for both display and touch mean that the 3.5 inch display can be exchanged for the 4.3, 5.0 and 7.0 inch displays without changing the hardware. Based on this hardware platform, the EDT UI2 range offer’s a low-end to high-end version of the same product without changing the electronic interface.

• Manufacturer: EDT (Emerging Display Technologies)
• Display size: 3.5-inch diagonal
• Brightness: 1000 cd/m²
• Temperature rating: Extended operating temperature
• Recommended for: Industrial controls, outdoor equipment, instrumentation and embedded systems

Please refer to the product datasheet for the exact temperature range, dimensions, resolution, interface and electrical specifications.
