EDT 3.5″ TFT Display, 850cd/m², CTP, Ext. Temp, UI2 Interface
EDT 3.5″ High-Brightness TFT Display with Capacitive Touch and UI2 Interface
A compact 3.5-inch TFT display from Emerging Display Technologies (EDT), combining an 850 cd/m² high-brightness backlight with a capacitive touch panel (CTP). Its extended operating temperature capability makes it well suited to industrial, embedded and outdoor-facing equipment.
- Manufacturer: EDT (Emerging Display Technologies)
- Display size: 3.5 inches
- Brightness: 850 cd/m²
- Touch panel: Capacitive touch (CTP)
- Temperature rating: Extended operating temperature

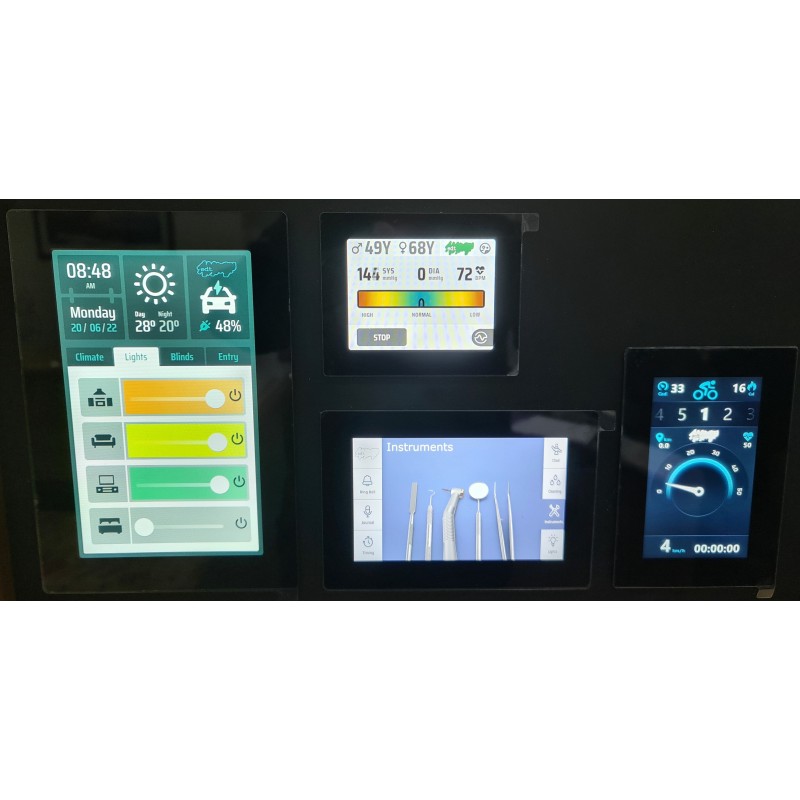

- Typical applications: Industrial controls, instrumentation, handheld devices and embedded HMI systems
Please refer to the product datasheet for exact dimensions, interface, resolution and operating temperature range.
ETML035023MDRA
Data sheet
- Resolution
- 320 (RGB) x 240 Resolution
- Active Area (W x H mm)
- 70.08 x 52.56
- Overall Dia. (W x H x D mm)
- 94.52 x 77.00 x 7.26
- Backlight Brightness
- 850 cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- RGB 24 Bit
- Diagonal
- 3.50 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -30 to +85 deg. C
- Storage Temperature
- -30 to +85 deg. C
- Polarizer Modes
- Transmissive
- CTP Controller IC
- Microchip MXT336UD
- Display Controller/Driver IC
- Sitronix ST7272A-G4
