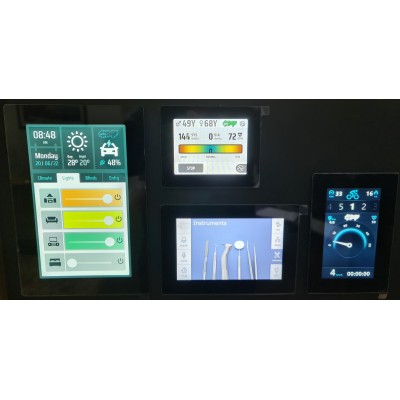

EDT 3.5″ TFT Display, 850cd/m², UI2 CTP, Standard Temp
Compact 3.5-inch EDT display with a high-brightness 850 cd/m² panel for clear, vivid image presentation. Supplied with an integrated UI2 capacitive touch panel (CTP) and designed for standard operating-temperature applications. A practical display solution for industrial controls, instrumentation, handheld equipment and embedded HMI systems.
Basic Specifications
- Manufacturer: EDT
- Display size: 3.5 inches
- Brightness: 850 cd/m²
- Touch panel: Capacitive Touch Panel (CTP)
- Touch configuration: UI2
- Operating temperature grade: Standard
- Product type: Display module with touch panel
Please refer to the product datasheet for full mechanical, electrical, interface and environmental specifications before ordering.
ETML035023UDRA
Data sheet
- Resolution
- 320 (RGB) x 240 Resolution
- Active Area (W x H mm)
- 70.08 x 52.56
- Overall Dia. (W x H x D mm)
- 94.52 x 77.00 x 7.26
- Backlight Brightness
- 850 cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- RGB 24 Bit
- Diagonal
- 3.50 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -30 to +80 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
- CTP Controller IC
- Ilitek ILI2130
- Display Controller/Driver IC
- Sitronix ST7272A-G4
