EDT 5.0 Display, 850cd/m² UI2 CTP, Extended Temperature

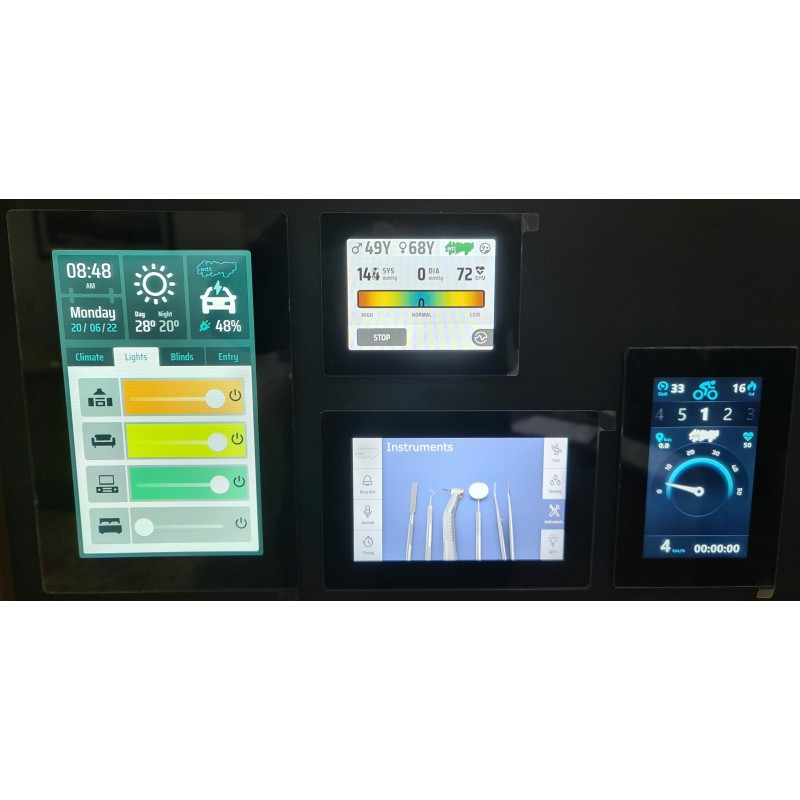

EDT 5.0-inch high-brightness display with UI2 capacitive touch panel (CTP), designed for reliable use in demanding industrial and outdoor applications. Its 850 cd/m² brightness supports clear visibility in high-ambient-light environments, while the extended operating temperature capability makes it suitable for challenging conditions.
- Manufacturer: EDT
- Display size: 5.0 inch
- Brightness: 850 cd/m²

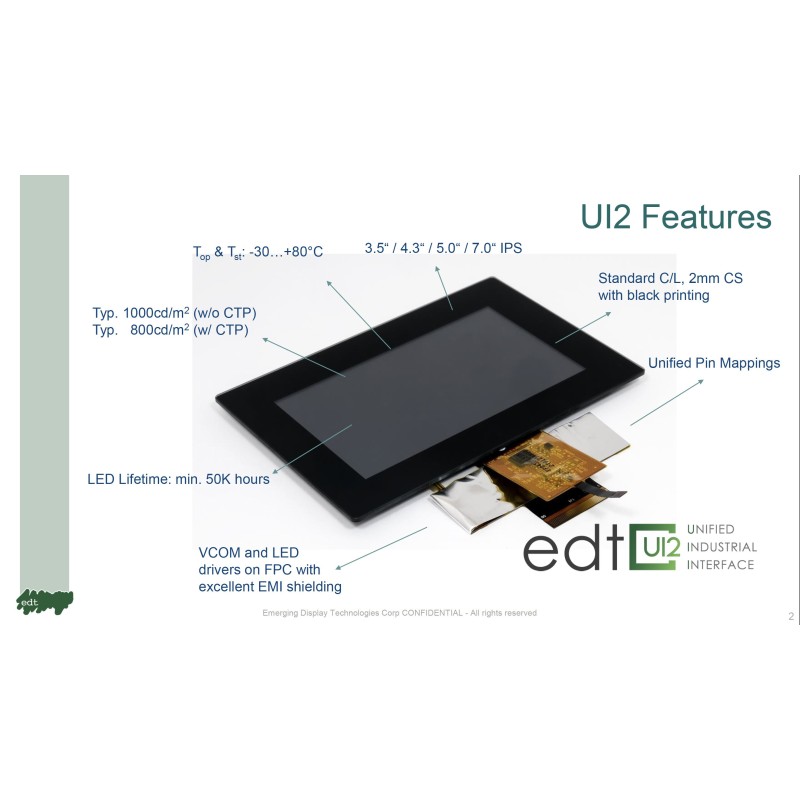

- Touch panel: UI2 capacitive touch panel (CTP)
- Temperature rating: Extended operating temperature
- Typical applications: Industrial controls, outdoor equipment, instrumentation and embedded systems
ETML050023MDRA
Data sheet
- Resolution
- 480 (RGB) x 272 Resolution
- Active Area (W x H mm)
- 108.80 x 65.60
- Overall Dia. (W x H x D mm)
- 137.24 x 94.04 x 7.99
- Backlight Brightness
- 850 cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- RGB 24 Bit
- Diagonal
- 5.00 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -30 to +85 deg. C
- Storage Temperature
- -30 to +85 deg. C
- Polarizer Modes
- Transmissive
- CTP Controller IC
- Microchip MXT336UD
- Display Controller/Driver IC
- Sitronix ST7262
