EDT 4.3 Inch TFT LCD, 850cd/m², UI2 CTP, Std. Op. Temp.

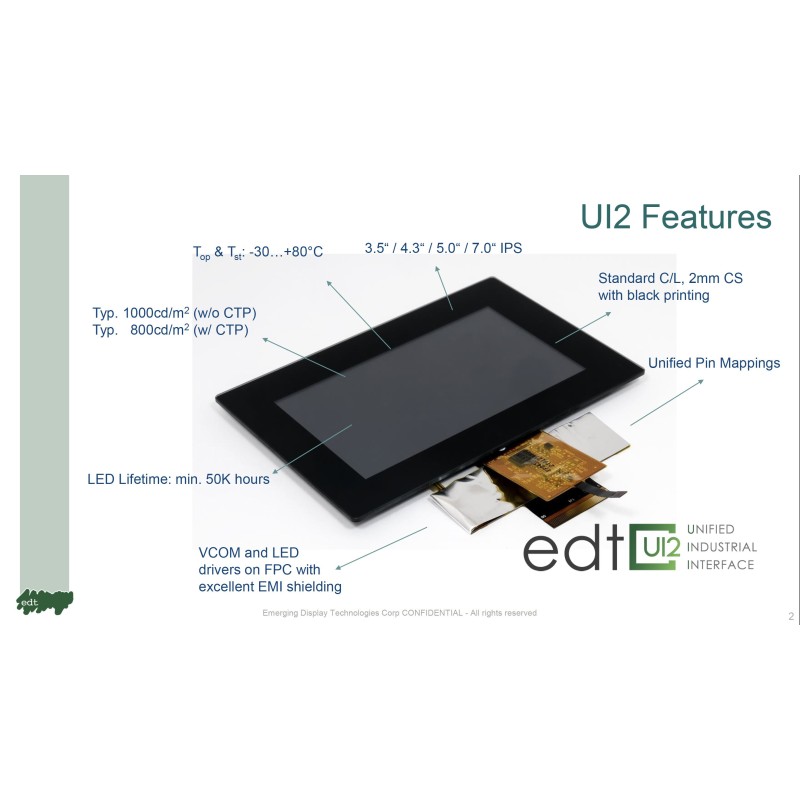

EDT 4.3-inch high-brightness TFT display with UI2 capacitive touch panel (CTP). Delivering 850 cd/m² brightness for clear, vivid viewing, this compact display is suited to industrial controls, embedded systems, instrumentation and HMI applications operating within standard temperature conditions.
- Manufacturer: EDT
- Display size: 4.3-inch
- Display type: TFT LCD
- Brightness: 850 cd/m²
- Touch panel: UI2 capacitive touch panel (CTP)
- Operating temperature: Standard temperature range
- Typical applications: HMI, industrial controls, instrumentation and embedded equipment
ETML043023UDRA
Data sheet
- Resolution
- 480 (RGB) x 272 Resolution
- Active Area (W x H mm)
- 95.84 x 54.66
- Overall Dia. (W x H x D mm)
- 125.29 x 84.11 x 7.46
- Backlight Brightness
- 1000 cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- RGB 24 Bit
- Diagonal
- 4.30 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -30 to +80 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
- CTP Controller IC
- Ilitek ILI2130
- Display Controller/Driver IC
- Sitronix SC7283
