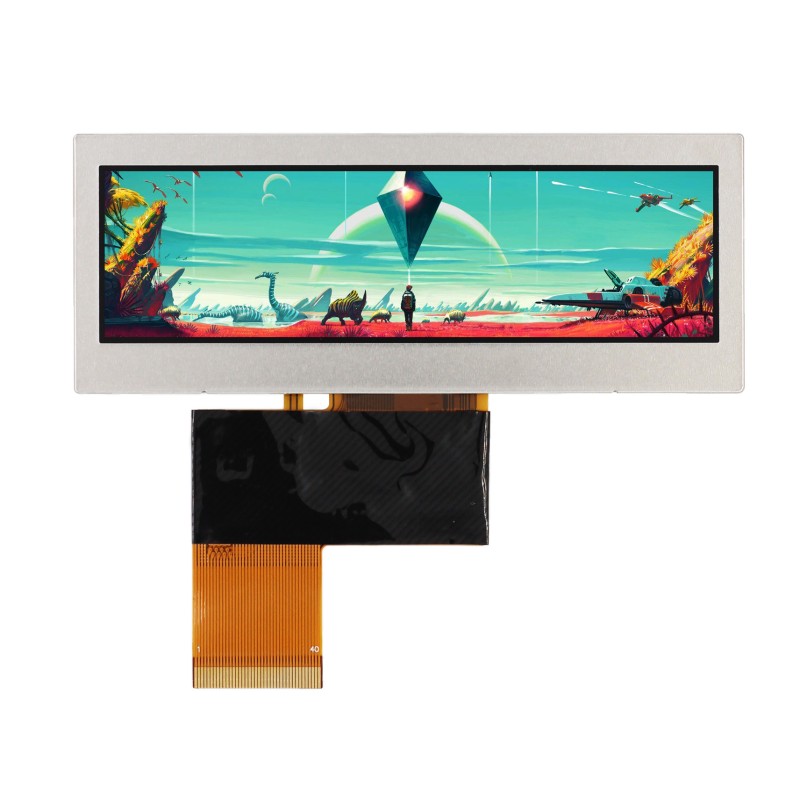

DLC 3.9″ Bar Style Display
The DLC 3.9-inch Bar Style Display is a compact, ultra-wide LCD designed for space-conscious commercial and industrial applications. Its high brightness of 760cd/m² provides clear, vivid content for control panels, information displays, embedded systems and specialist equipment.
- Manufacturer: DLC
- Display size: 3.9 inches
- Display format: Bar style / ultra-wide
- Brightness: 760cd/m²
- Display technology: TFT LCD
- Typical applications: Embedded equipment, control panels, signage and information displays
Please check the product datasheet for mechanical dimensions, resolution, interface and electrical requirements before ordering.
DLC0390BZR
Data sheet
- Resolution
- 480 (RGB) x 128 Resolution
- Active Area (W x H mm)
- 95.04 x 25.34
- Overall Dia. (W x H x D mm)
- 105.50 x 40.64 x 2.95
- Backlight Brightness
- 760 cd/m2
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- RGB
- Diagonal
- 3.90 inch
- LCD Type
- a-Si TFT
- Viewing Direction
- 12 O'clock
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
