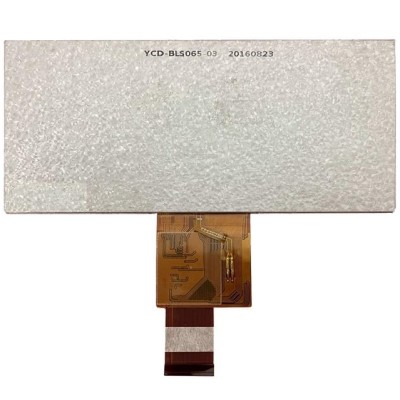

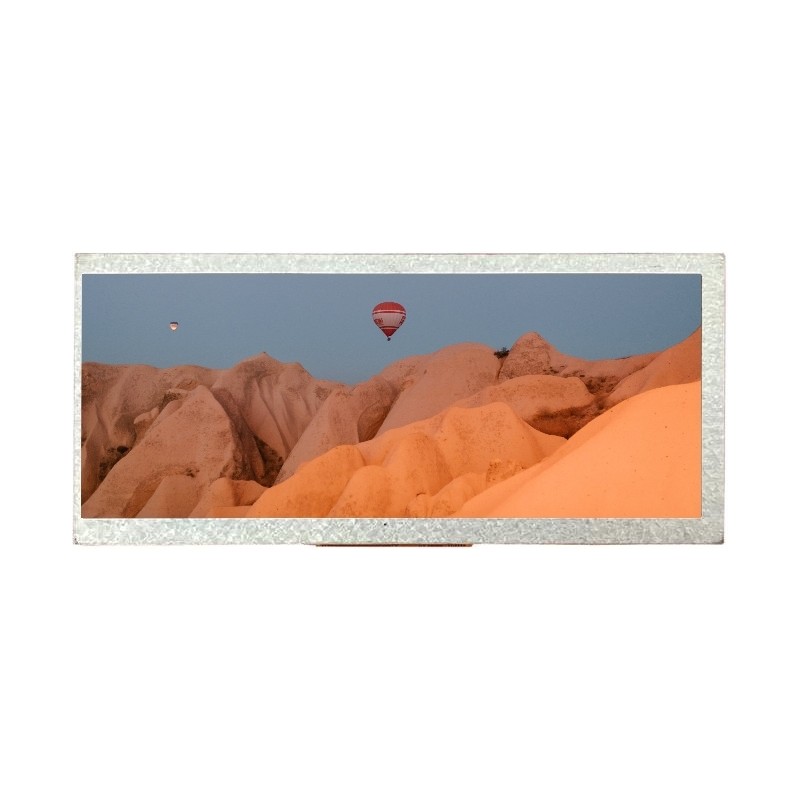

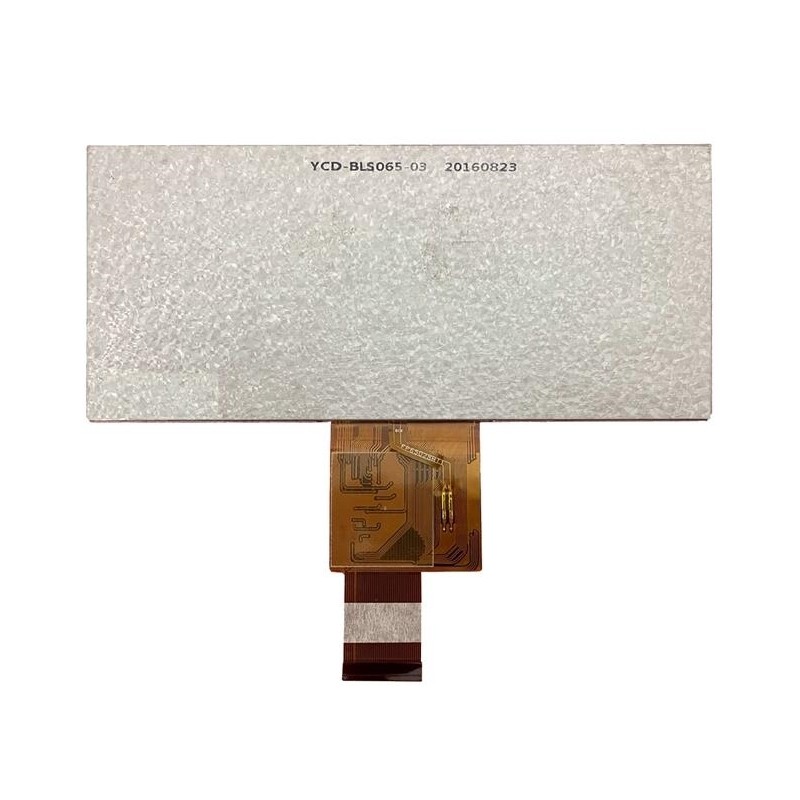

CD Tech 6.5″ Bar Style Display
Compact 6.5 inch bar style TFT display from CD Tech, featuring a bright 600cd/m² LED backlight for clear, vibrant content. Its ultra-wide format is ideal for shelf-edge displays, control panels, industrial equipment, information systems and other space-constrained embedded applications.
- Manufacturer: CD Tech
- Display size: 6.5 inches
- Display type: Bar-style TFT LCD
- Brightness: 600cd/m²
- Backlight: LED
- Format: Ultra-wide / stretched
- Applications: Retail displays, industrial HMI, instrumentation and embedded systems
Please refer to the technical datasheet for resolution, interface, dimensions and operating requirements before integration.
EIML101022DYA
S065BWS08HD
Data sheet
- Resolution
- 1024 x 400 Resolution
- Active Area (W x H mm)
- 154.21 x 57.28
- Overall Dia. (W x H x D mm)
- 165.00 x 72.86 x 3.50
- Backlight Brightness
- 600 cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Interface Mode
- LVDS
- Diagonal
- 6.50 inch
- LCD Type
- a-Si
- Viewing Direction
- ALL
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
- Display Controller/Driver IC
- EK79001HN / EK73215BCGA
