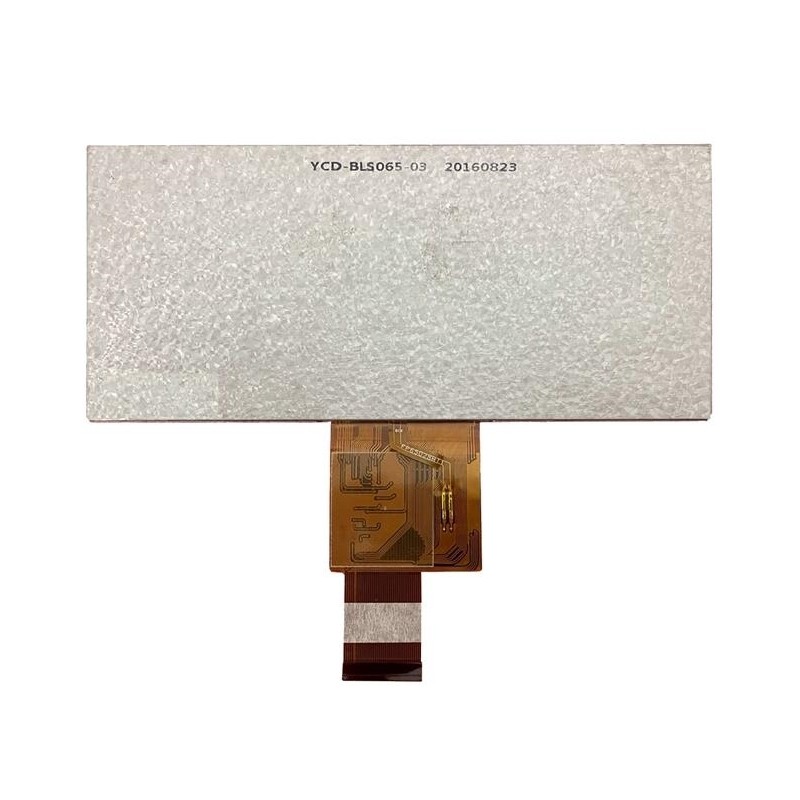

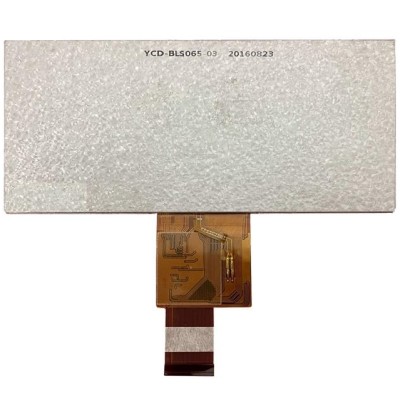

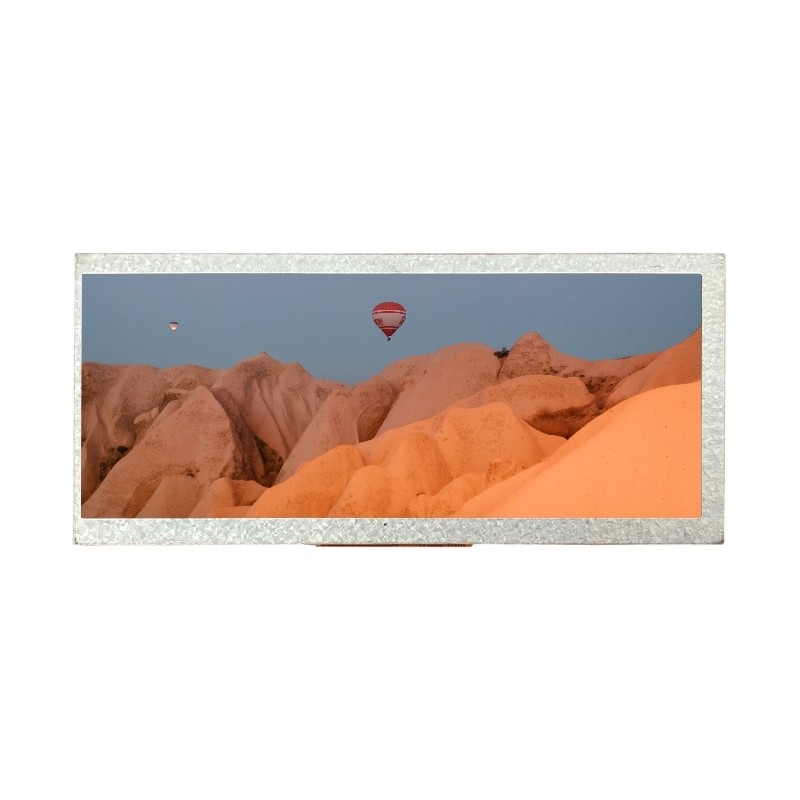

CD Tech 6.5" Bar Style Display, 600cd/m2
6.5" Bar Style Display from CD Tech featuring a bright 600cd/m² panel for clear, high-visibility content. Its ultra-wide format is ideal for space-conscious commercial, industrial and embedded display applications.
- Manufacturer: CD Tech
- Display size: 6.5 inch
- Display format: Bar style / ultra-wide
- Brightness: 600cd/m²
- Typical applications: Digital signage, control panels, kiosks, instrumentation and embedded systems
Please refer to the full product specification for resolution, interface, dimensions and operating requirements.
S065BWS07HG
Data sheet
- Resolution
- 1024 x 400 Resolution
- Active Area (W x H mm)
- 154.08 x 57.28
- Overall Dia. (W x H x D mm)
- 165.00 x 72.86 x 3.50
- Backlight Brightness
- 600 cd/m2
- Backlight Lifetime
- 30K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- RGB 24 Bit
- Diagonal
- 6.50 inch
- LCD Type
- a-Si
- Viewing Direction
- ALL
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
- Display Controller/Driver IC
- HYX8282-A11/HX8696-A01
