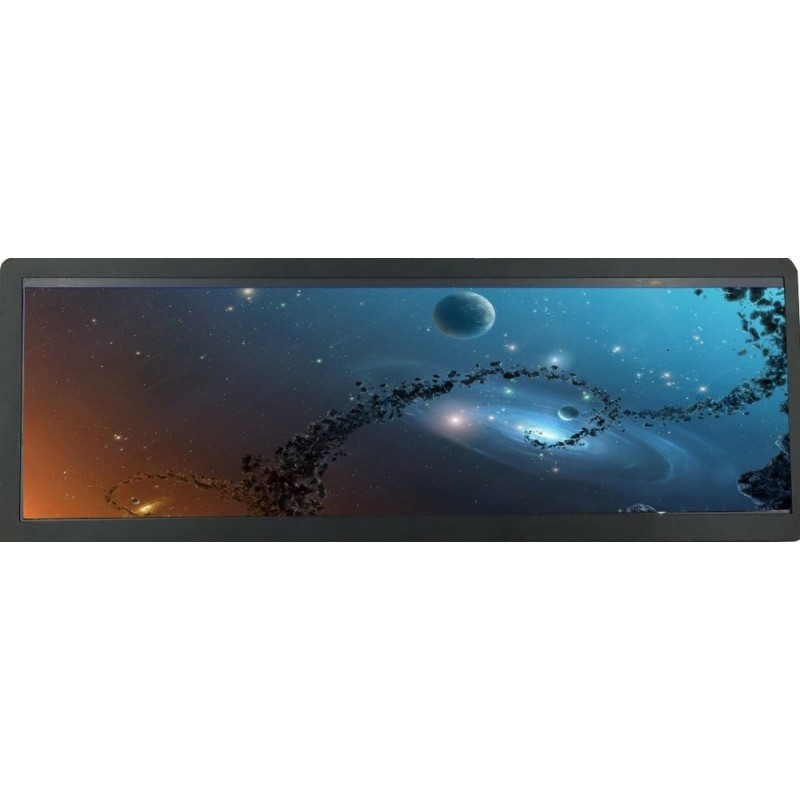

CD Tech 5.8″ Bar Style Display
5.8" Bar Style Display from CD Tech, designed for compact digital signage, control panels and embedded display applications. Its ultra-wide format presents menus, status information, graphics and promotional content where conventional screens may not fit.
With a brightness of 500cd/m², the display delivers clear, vibrant content in a range of indoor environments.
Basic Specifications
- Manufacturer: CD Tech
- Display size: 5.8 inch
- Display format: Bar style / ultra-wide
- Brightness: 500cd/m²
- Typical applications: Embedded systems, control panels, information displays, kiosks and compact digital signage
Please check the full technical specification, interface and mechanical dimensions to confirm compatibility with your application.
S058HWV08HS
Data sheet
- Resolution
- 800 (RGB) x 320 Resolution
- Active Area (W x H mm)
- 137.52 x 51.44
- Overall Dia. (W x H x D mm)
- 154.40 x 63.34x 3.50
- Backlight Brightness
- 500 cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- RGB-24 BIT
- Diagonal
- 5.80 inch
- Viewing Direction
- 12 O'clock
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
