Santek 7 Inch Sunlight Readable LCD

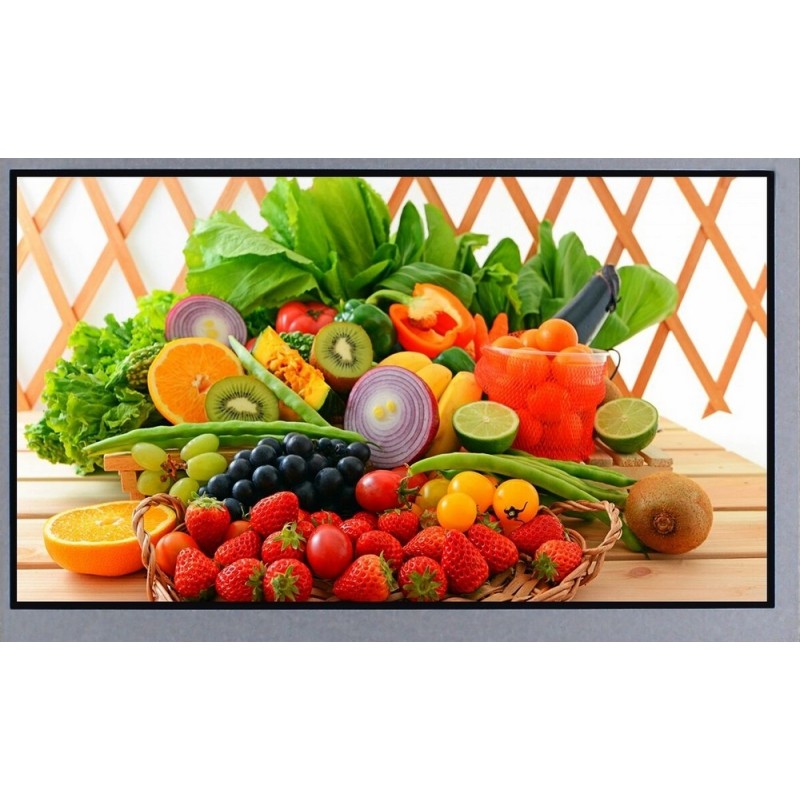

Santek 7” Sunlight Readable TFT LCD Display with Capacitive Touch
This high-brightness 7-inch TFT LCD delivers up to 1120 cd/m² for clear, vivid images in bright ambient light. The integrated CTP projected capacitive touchscreen provides accurate and responsive touch control, making the display ideal for outdoor equipment, industrial HMIs, kiosks, control panels and other embedded applications.
- Manufacturer: Santek
- Display size: 7.0 inches
- Display technology: TFT LCD
- Brightness: 1120 cd/m²
- Touchscreen: Integrated CTP (projected capacitive touch)
- Visibility: Sunlight-readable, high-brightness design
- Applications: Industrial controls, outdoor equipment, kiosks, instrumentation and embedded systems
Need help with integration? Contact LCDTek for the full datasheet, interface details and compatibility support.
ST0700I7WCY-RSCLW-F-A
Data sheet
- Resolution
- 800 (RGB) x 480 Resolution
- Active Area (W x H mm)
- 152.40 x 91.44
- Overall Dia. (W x H x D mm)
- 193.40 x 132.44 x 12.03
- Backlight Brightness
- 1120 cd/m2
- Backlight Lifetime
- 20K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- Digital(TTL)
- Diagonal
- 7.00 inch
- LCD Type
- a-Si
- Viewing Direction
- 6 O'clock
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
