PanelPilotACE 4.3 inch Programmable Display

 4.3 inch Capacitive Touch Screen

    Low-profile panel mount module

    4 x 16-bit analogue inputs

    8 x digital I/O pins

    2 x alarm outputs & 4 x PWM outputs

   FREE PanelPilotACE Design Studio Software

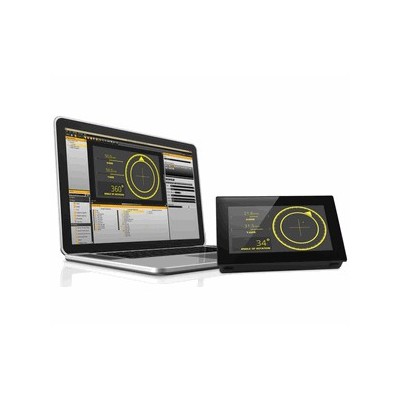

 The SGD 43-A is the first in a range of PanelPilotACE compatible displays and panel meters. The low-profile display features a 4.3 inch capacitive touch-screen and a Cortex ARM 9 processor running embedded Linux. The display can be powered from either USB or a 5 to 30V d.c. supply and offers users a wealth of hardware interfaces which include four 16bit bi-polar analogue inputs (to a maximum of +/- 40V d.c.), eight digital input/output pins, two alarm outputs (maximum current sink 10mA) and four PWM outputs.

The design software provides a number of building blocks which allow users to drag-and-drop elements onto the screen to quickly create advanced user interfaces. From background images to text elements, analogue style meters, touch-screen navigation elements and even complex logic statements, users can build up multi-screen interfaces without needing to write a line of code.

There is a library of pre-defined elements such as meters, buttons and switches, and users can create their own content by combining elements or importing graphics in a number of formats (including jpg, png, tif, bmp and gif). The software includes support for transparency and multiple-layers.
