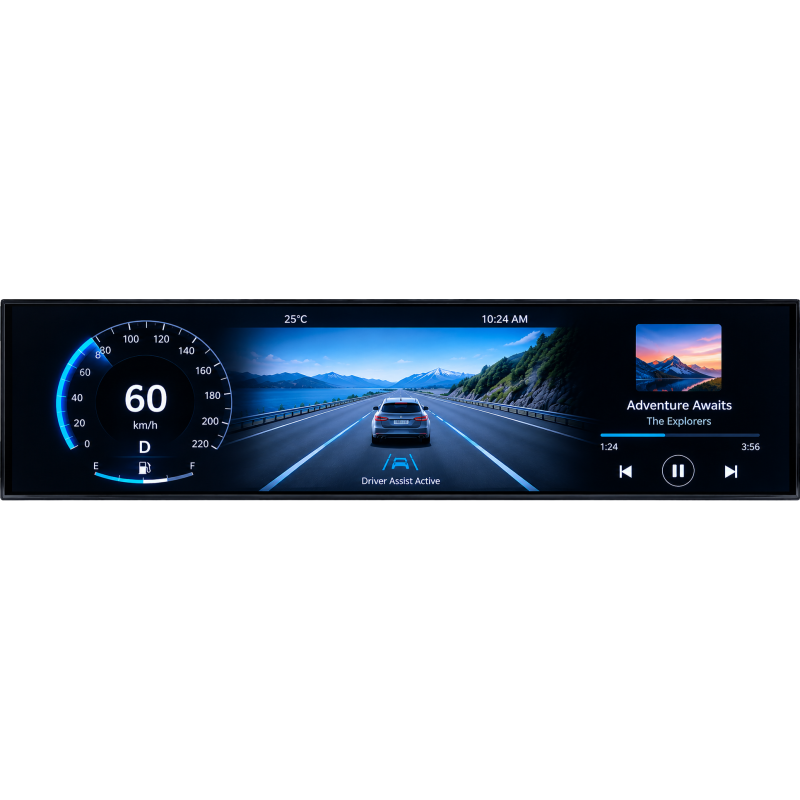

EDT 12.3" TFT IPS display with integrated in-cell CTP
EDT 12.3-inch TFT IPS display with integrated in-cell capacitive touch, designed for industrial, embedded and HMI applications. IPS technology provides wide viewing angles and consistent colour reproduction, while the in-cell CTP construction delivers a slimmer profile, improved optical clarity and responsive touch operation.
- Manufacturer: Emerging Display Technologies (EDT)
- Display size: 12.3 inch
- Display type: Active-matrix TFT LCD
- Panel technology: IPS
- Touch technology: In-cell capacitive touch panel (CTP)
- Viewing characteristics: Wide viewing angles
- Format: Wide-format landscape display
- Typical applications: Industrial controls, HMIs, instrumentation, kiosks and embedded systems
Please confirm the required EDT part number, resolution, interface, brightness and operating temperature before ordering, as specifications may vary by configuration.
EIML123022DYA
Data sheet
- Resolution
- 1920 x 720
- Active Area (W x H mm)
- 292.03x109.51
- Overall Dia. (W x H x D mm)
- 318.03x138.5x14.2
- Backlight Brightness
- 1000 cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- LVDS
- Diagonal
- 12.3 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
- CTP Controller IC
- Himax HX83192-C
