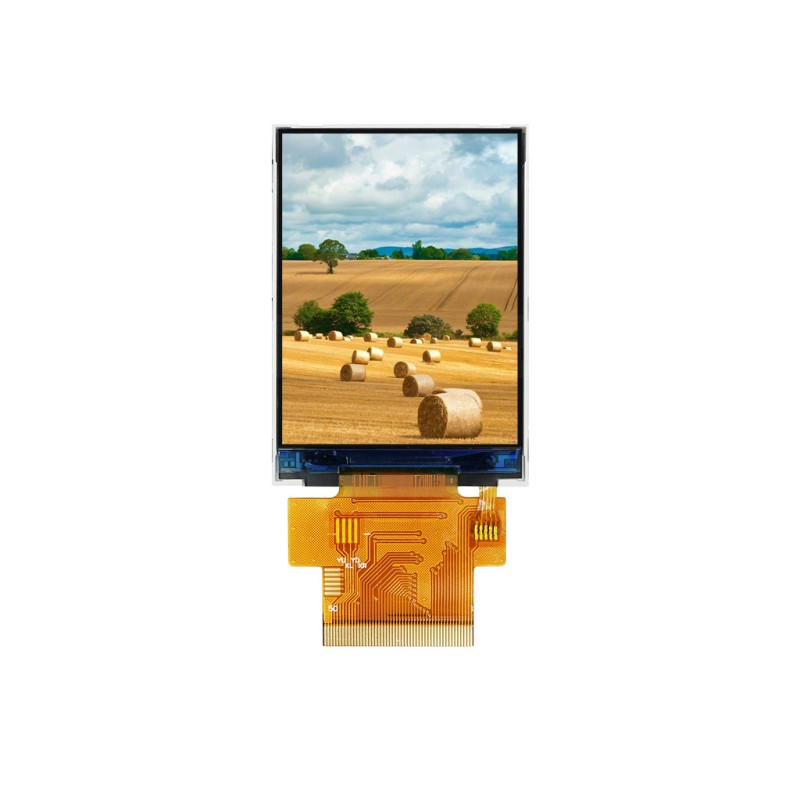

Acrowise 2.4 Display LCD Screen
Acrowise 2.4 inch Display with 500 cd/m² brightness, designed for compact embedded, industrial and electronic display applications. Its small form factor and bright screen make it suitable for control panels, handheld equipment and space-limited user interfaces.
Basic Specifications
- Manufacturer: Acrowise
- Display size: 2.4-inch diagonal
- Brightness: 500 cd/m² (500 nits)
- Product type: Display module
- Recommended applications: Embedded systems, industrial controls, instrumentation and handheld devices
Please check the product datasheet or contact LCDTek to confirm resolution, interface, dimensions and compatibility before ordering.
Download Specification
AWK-240320T24N18
Data sheet
- Resolution
- 240 (RGB) x 320 Resolution
- Active Area (W x H mm)
- 48.96 x 36.72
- Overall Dia. (W x H x D mm)
- 42.00 x 59.00 x 2.25
- Backlight Brightness
- 500 cd/m2
- Backlight Lifetime
- 30K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- RGB
- Diagonal
- 2.40 inch
- Viewing Direction
- ALL
- Operating Temperature
- -30 to +80 deg. C
- Storage Temperature
- -30 to +80 deg. C
