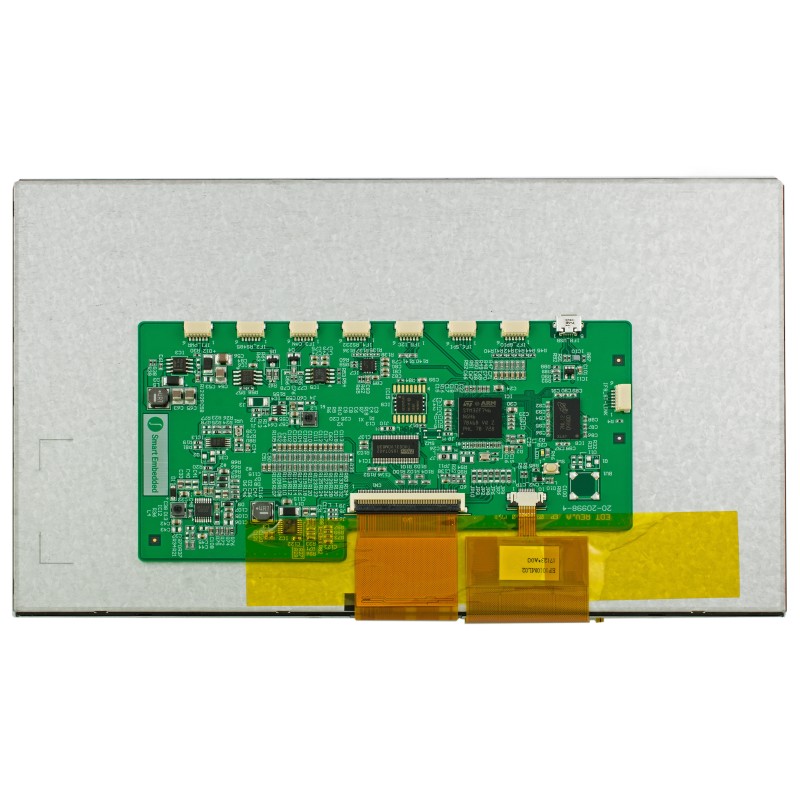

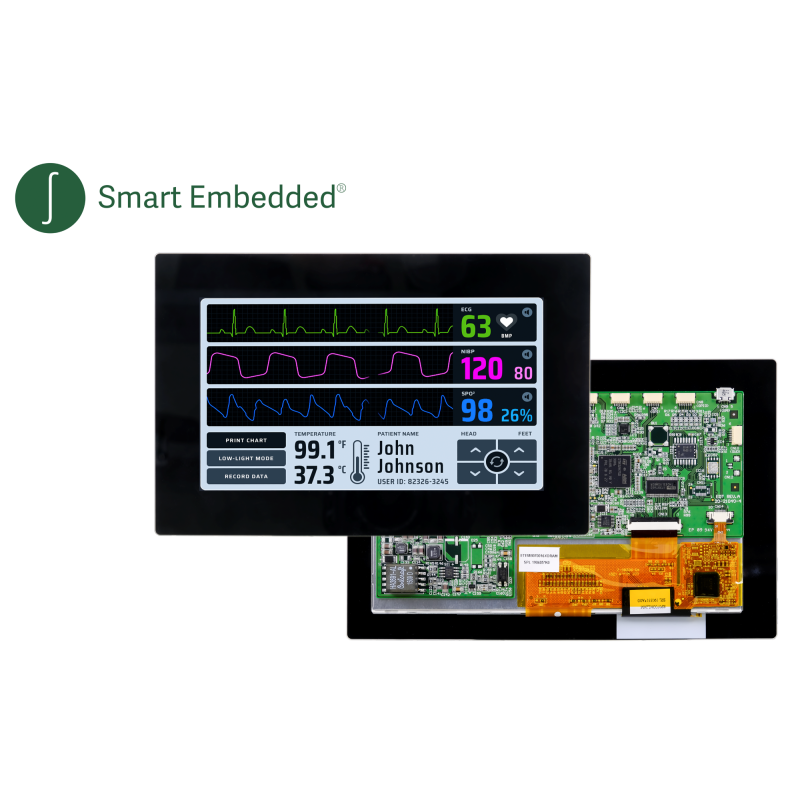

EDT ETEMB121027XDRAM. 12.1" Smart Embedded IPS GUI Module, 850cd/m2 with CTP

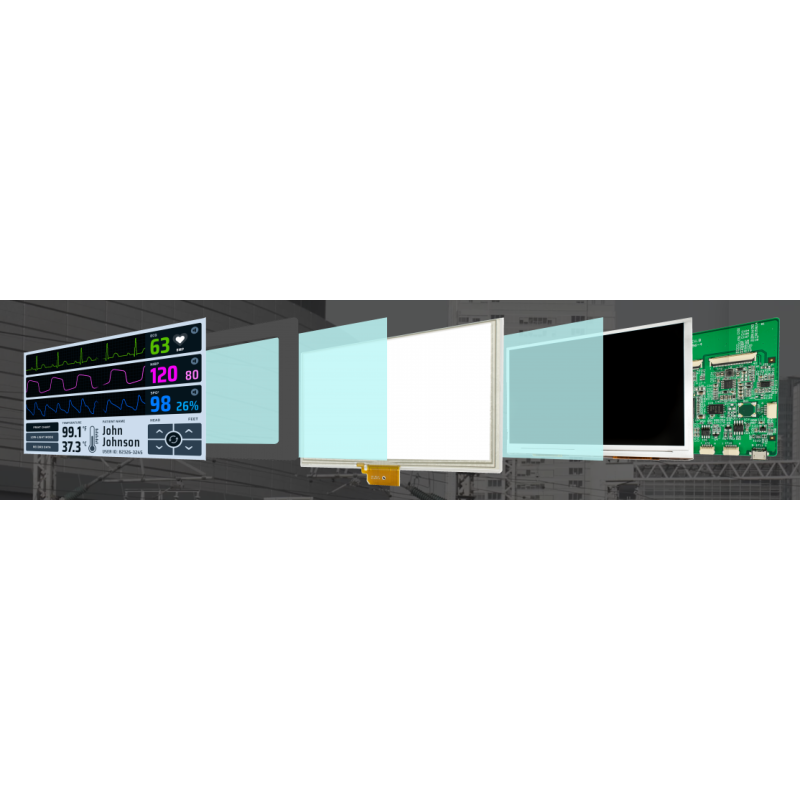

EDT ETEMB121027XDRAM is a 12.1-inch smart embedded GUI module combining a high-brightness IPS TFT display with an integrated projected capacitive touchscreen (CTP). Delivering 850 cd/m² brightness, wide viewing angles and responsive touch control, it is ideal for industrial HMI, automation, control-panel and embedded interface applications.
- Manufacturer: Emerging Display Technologies (EDT)
- Part number: ETEMB121027XDRAM
- Display size: 12.1 inches
- Module type: Smart embedded GUI display
- Display technology: IPS TFT LCD
- Brightness: 850 cd/m²
- Touch interface: Projected capacitive touchscreen (CTP)
- Key benefits: High brightness, wide viewing angles and integrated touch operation
A practical, ready-to-integrate display solution for equipment requiring a clear and intuitive graphical user interface.
ETEMN121027XDRAM
Data sheet
- Resolution
- 1280 (RGB) x 800 Resolution
- Active Area (W x H mm)
- 261.12x163.2
- Overall Dia. (W x H x D mm)
- 301.92x204.0x30.4
- Backlight Brightness
- 850 cd/m2
- Backlight Lifetime
- 30K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- Ethernet, RS485,CAN FD,USB (TYPE C)
- Diagonal
- 12.1 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
- Micro Controller
- STM32H7S7
