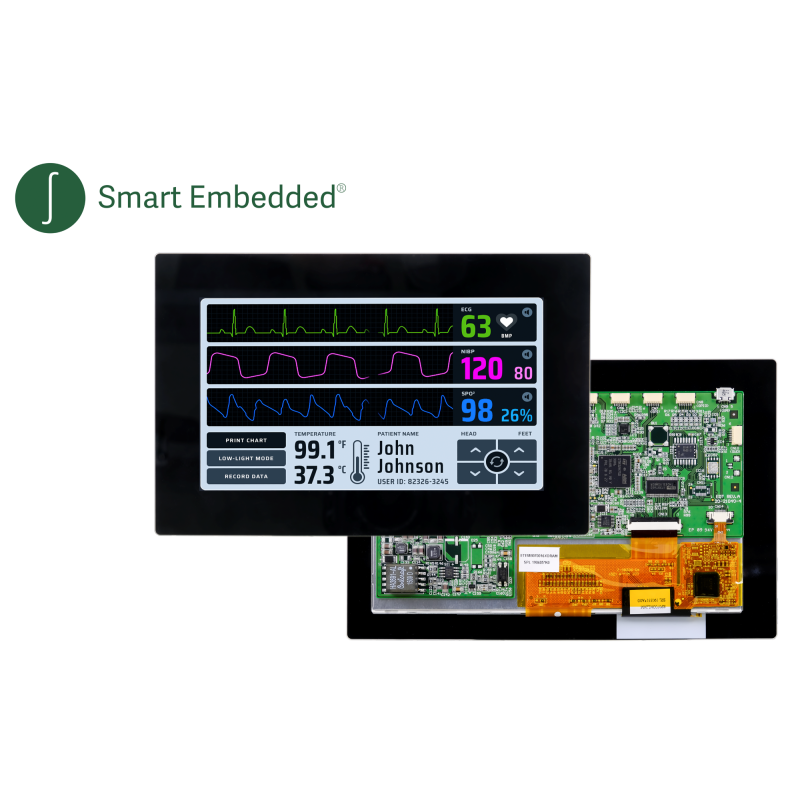

EDT ETEMB043013XDHAL, 4.3inch Smart IPS GUI, 850cd/m2, CTP
EDT ETEMB043013XDHAL is a 4.3-inch smart embedded GUI display module combining an IPS TFT screen, high brightness and an integrated capacitive touch panel. Its 650 cd/m² luminance and wide-viewing-angle IPS technology provide clear, vibrant visuals for embedded HMI and control applications.
- Manufacturer: EDT
- Part number: ETEMB043013XDHAL
- Display size: 4.3-inch
- Display technology: IPS TFT
- Brightness: 650 cd/m² typical
- Touch panel: CTP capacitive touchscreen
- Module type: Smart embedded GUI display
Ideal for industrial controls, smart appliances, instrumentation, building automation and other applications requiring a compact, responsive graphical user interface.
ETEMB043027XDRAL
Data sheet
- Resolution
- 480 (RGB) x 272 Resolution
- Active Area (W x H mm)
- 95.84x54.66
- Overall Dia. (W x H x D mm)
- 125.29x84.11x16.6
- Backlight Brightness
- 850 cd/m2
- Backlight Lifetime
- 30K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- FD CAN, RS485, USB (TYPE C)
- Diagonal
- 4.30 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive

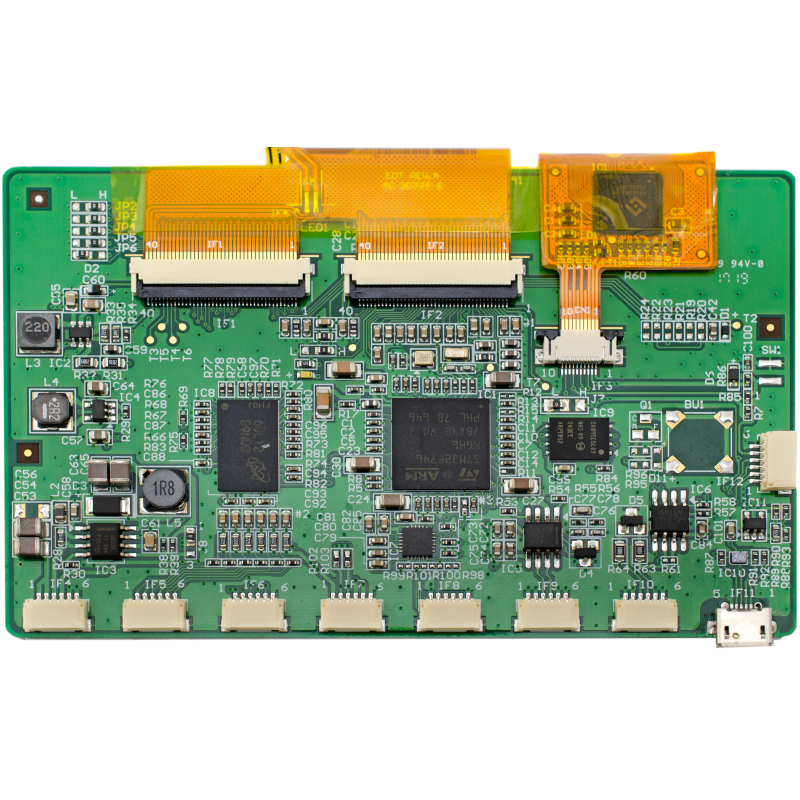

- Micro Controller
- STM32U599
