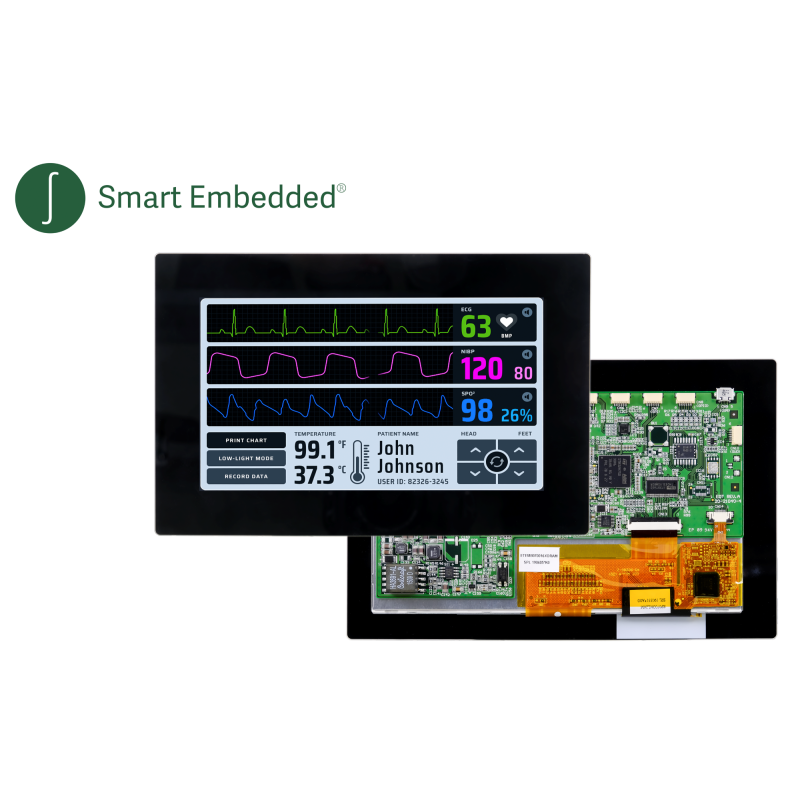

EDT ETEMB057027XDRAL Smart Embedded Display Module, 850cd/m2
EDT ETEMB057027XDRAL is a compact 5.7-inch smart embedded display module designed for industrial HMI, control and monitoring applications. Its high-brightness 850 cd/m² TFT display provides clear, vivid information in demanding indoor and high-ambient-light environments.

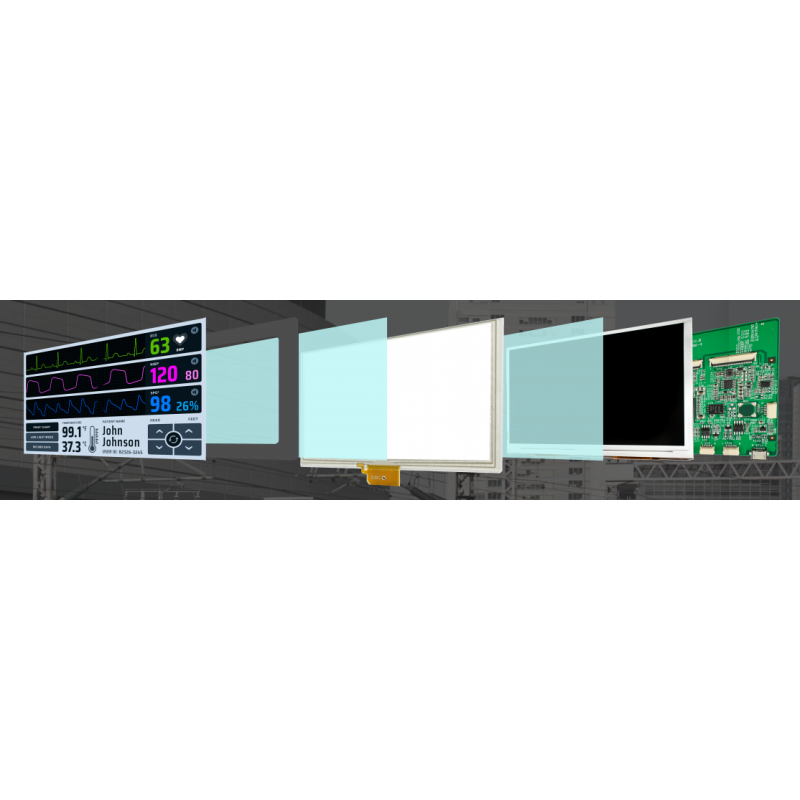

Combining the display and embedded functionality in a single module, the ETEMB057027XDRAL helps simplify system integration and is well suited to industrial controls, instrumentation, automation equipment and other embedded user-interface projects.
Basic Specifications
- Manufacturer: Emerging Display Technologies (EDT)
- Manufacturer Part Number: ETEMB057027XDRAL
- Product Type: Smart embedded display module
- Display Technology: TFT LCD
- Display Size: 5.7 inch
- Brightness: 850 cd/m² typical
- Application: Embedded HMI, industrial automation, instrumentation and control systems
Please refer to the EDT product datasheet for complete electrical, mechanical, interface and environmental specifications before final design-in.
ETEMB057027XDRAL
Data sheet
- Resolution
- 800 (RGB) x 480 Resolution
- Active Area (W x H mm)
- 116x87.2
- Overall Dia. (W x H x D mm)
- 147.6x118.8x18.7
- Backlight Brightness
- 850 cd/m2
- Backlight Lifetime
- 30K Hours
- Backlight Types
- LED
- Interface Mode
- FD CAN,RS485,USB (TYPE C)
- Diagonal
- 5.70 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive

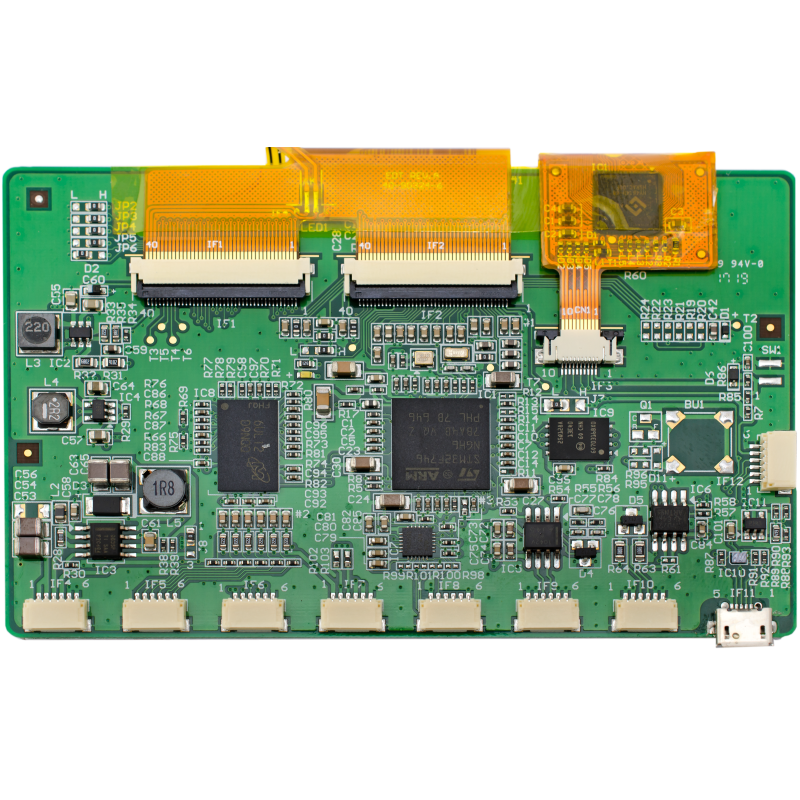

- Micro Controller
- STM32U599
