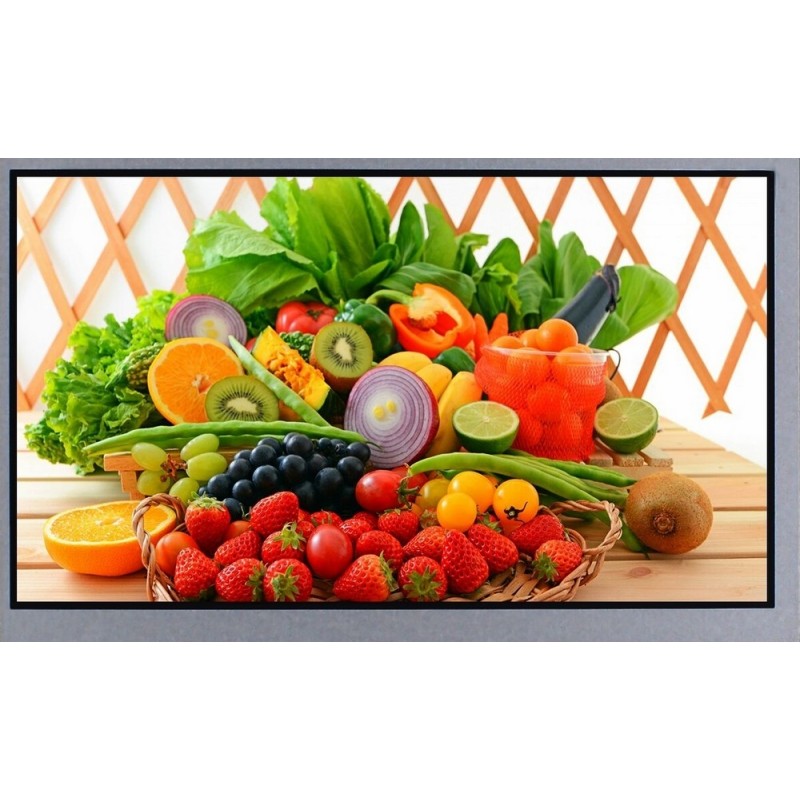

EDT 7 Inch IPS Display, 425 cd/m² with CTP
7″ EDT IPS TFT LCD Display with Capacitive Touchscreen
This high-quality 7-inch TFT display from Emerging Display Technologies (EDT) combines wide-viewing-angle IPS technology with a responsive capacitive touch panel. Its 425 cd/m² brightness provides a clear, vibrant image for embedded, industrial and commercial applications.
- Manufacturer: EDT (Emerging Display Technologies)
- Display size: 7 inches
- Display technology: IPS TFT LCD
- Brightness: 425 cd/m²
- Touch panel: Integrated CTP (capacitive touch panel)
- Key benefits: Wide viewing angles, accurate colours and responsive touch control
- Typical applications: Industrial HMIs, control panels, embedded systems, instrumentation and smart appliances
Please refer to the product datasheet for full electrical, mechanical, interface and operating specifications before integration.
ETML070013DCDHA
Data sheet
- Resolution
- 1024 (RGB) x 600
- Active Area (W x H mm)
- 154.21 x 85.92 mm
- Overall Dia. (W x H x D mm)
- 165.75x 105.30 x 4.36 mm
- Backlight Brightness
- 425 cd/m2
- Backlight Lifetime
- 30K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- LVDS
- Diagonal
- 7.00 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
- Display Controller/Driver IC
- HIMAX HX8249-A11 / HX8678-A01
