EDT 10.1″ IPS Display, 425cd/m², CTP Touchscreen

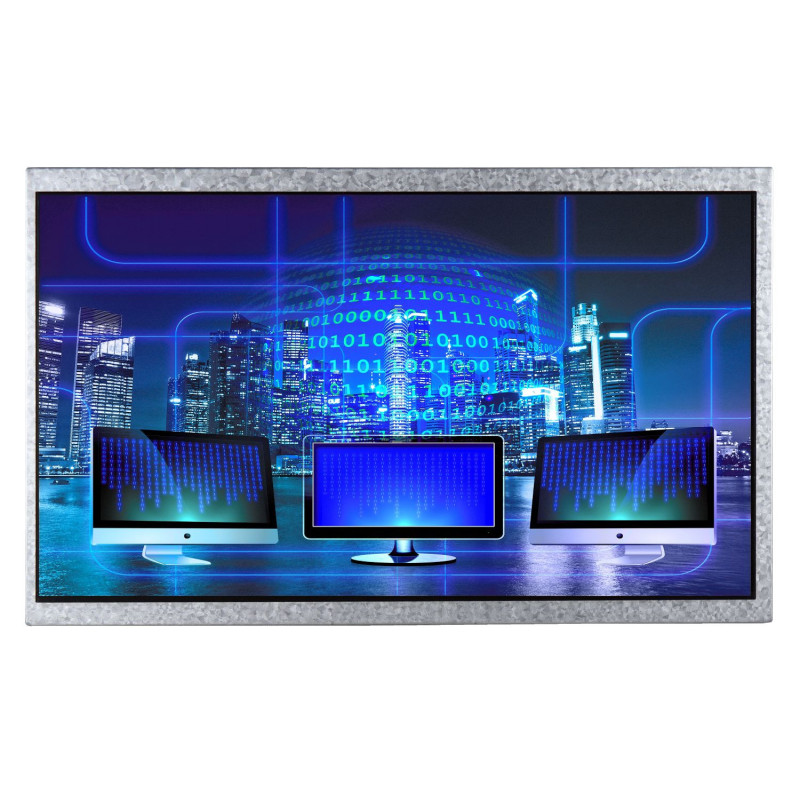

10.1-inch IPS TFT LCD display from EDT, supplied with an integrated capacitive touch panel (CTP). Delivering a typical brightness of 425cd/m², this display provides clear images, consistent colour reproduction and wide viewing angles. Ideal for industrial HMIs, control panels, embedded systems, kiosks and professional touchscreen applications.
- Manufacturer: EDT (Emerging Display Technologies)
- Display size: 10.1-inch diagonal
- Display technology: IPS TFT LCD
- Brightness: 425cd/m² typical
- Touch panel: Integrated capacitive touch panel (CTP)
- Key benefits: Wide viewing angles, clear image quality and responsive touch operation
- Applications: Industrial HMI, automation, medical equipment, kiosks and embedded displays
Please refer to the product datasheet and mechanical drawing to confirm resolution, interface, dimensions and connector compatibility before ordering.
ETML101013DDHA
Data sheet
- Resolution
- 1280 (RGB) x 800 Resolution
- Active Area (W x H mm)
- 216.96 x 135.60
- Overall Dia. (W x H x D mm)
- 229.46 x 149.11 x 9.50
- Backlight Brightness
- 425 cd/m2
- Backlight Lifetime
- 30K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- LVDS
- Diagonal
- 10.1 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
- Display Controller/Driver IC
- ILI2132
