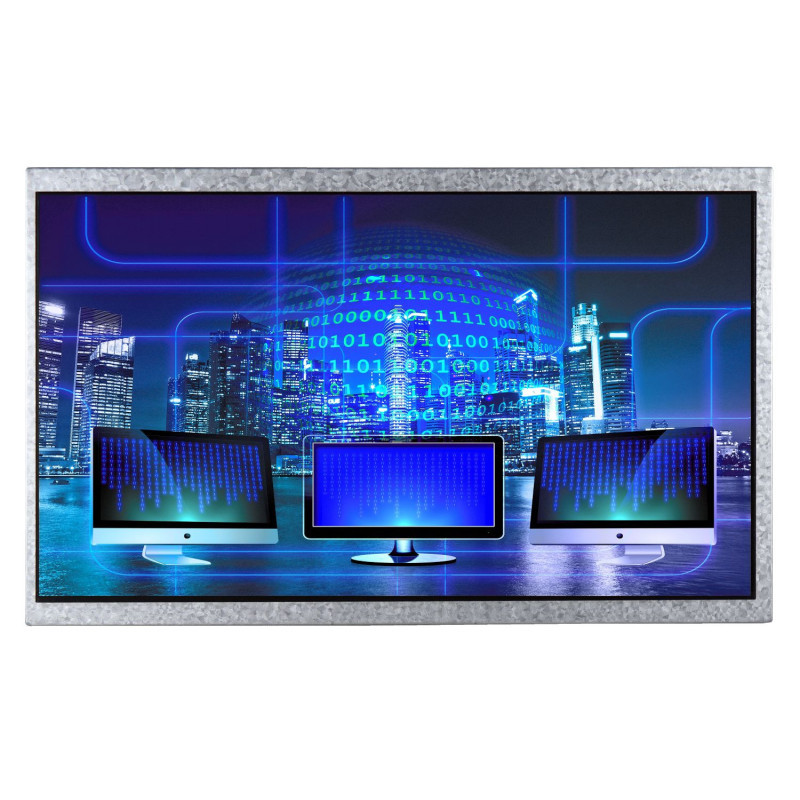

EDT 10.1″ IPS Display, 500 cd/m², 30K-Hour Life
10.1-inch EDT IPS TFT Display designed for commercial and industrial display applications. IPS technology provides consistent colour reproduction and wide viewing angles, while the 500 cd/m² brightness delivers clear, vivid images in well-lit environments. A rated LED backlight lifetime of 30,000 hours supports reliable long-term operation.
Basic Specifications
- Manufacturer: EDT
- Display Size: 10.1 inches
- Display Technology: IPS TFT LCD
- Brightness: 500 cd/m²
- Backlight Lifetime: 30,000 hours
- Application: Industrial, commercial and embedded display systems
Please refer to the product datasheet or contact LCDTek to confirm resolution, interface, dimensions and compatibility before ordering.
ET101013DDMA
Data sheet
- Resolution
- 1280 (RGB) x 800 Resolution
- Active Area (W x H mm)
- 216.96 x 135.60
- Overall Dia. (W x H x D mm)
- 229.46 x 149.10 x 5.50
- Backlight Brightness
- 500 cd/m2
- Backlight Lifetime
- 30K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- LVDS
- Diagonal
- 10.1 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
