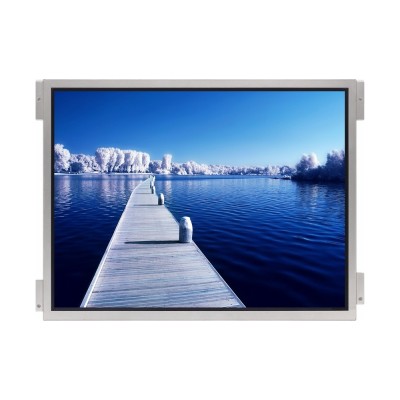

EDT 12.1″ IPS Sunlight Readable Display, 1350 cd/m², CTP
12.1-inch IPS TFT LCD display from EDT, designed for clear viewing in direct sunlight and other demanding lighting conditions. Delivering up to 1350 cd/m² brightness, wide IPS viewing angles and an integrated capacitive touch panel (CTP), it is ideal for industrial controls, outdoor kiosks, transport systems, marine equipment and HMI applications.
- Manufacturer: EDT (Emerging Display Technologies)
- Display size: 12.1 inches
- Display technology: IPS TFT LCD
- Brightness: 1350 cd/m²
- Readability: Sunlight readable / high brightness
- Touchscreen: Integrated capacitive touch panel (CTP)
- Viewing performance: Wide viewing angles and consistent colour reproduction
- Typical applications: Industrial HMI, outdoor terminals, kiosks, marine, transport and embedded systems
Please contact LCDTek for the full datasheet, interface details, mechanical drawings, availability and volume pricing.
ETML121025HUDYA
Data sheet
- Resolution
- 1280 (BGR) x 800
- Active Area (W x H mm)
- 261.12 x 163.20
- Overall Dia. (W x H x D mm)
- 283.00 x 185.10 x 21.60
- Backlight Brightness
- 1350cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- LVDS
- Diagonal
- 10.1 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -30 to +85 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
