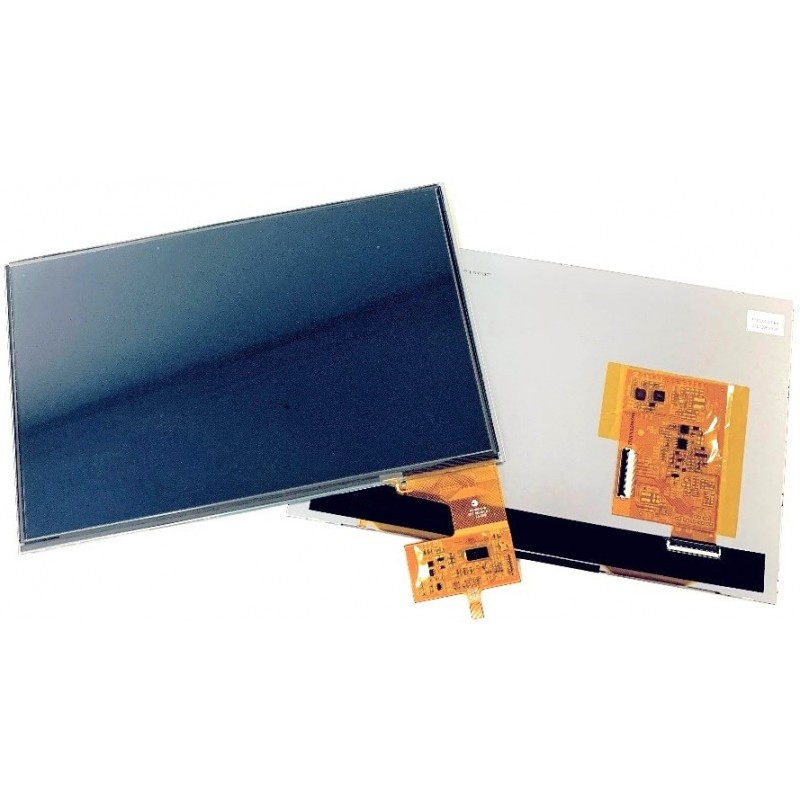

EDT 10.1" IPS Display, 1000 cd/m2, 50K Lifetime Hours
10.1-inch IPS Display with 1000 cd/m² Brightness
A high-brightness 10.1-inch IPS display designed for clear, consistent image performance in demanding commercial and industrial applications. The IPS panel provides wide viewing angles, while the 1000 cd/m² brightness supports excellent visibility in brightly lit environments. Rated for up to 50,000 operating hours, it is suitable for long-term integration into kiosks, control systems, digital signage and embedded display equipment.
Basic Specifications
- Brand: No Brand
- Display Size: 10.1 inches
- Panel Technology: IPS
- Brightness: 1000 cd/m²
- Rated Lifetime: Up to 50,000 hours
- Product Type: LCD Display Panel
- Typical Applications: Industrial equipment, kiosks, digital signage, control panels and embedded systems
Please check the full technical specification, dimensions and interface compatibility before ordering.
ETML101022DYA
Data sheet
- Resolution
- 1200 * 1920
- Active Area (W x H mm)
- 135.36W * 216.576H mm
- Overall Dia. (W x H x D mm)
- 140.66W * 226.61H mm
- Backlight Brightness
- 1000cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- MIPI
- Diagonal
- 10.1 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -20 to 70 deg.C
- Polarizer Modes
- Transmissive
