EDT NVIS 10.1 Inch IPS Display, 950 cd/m²

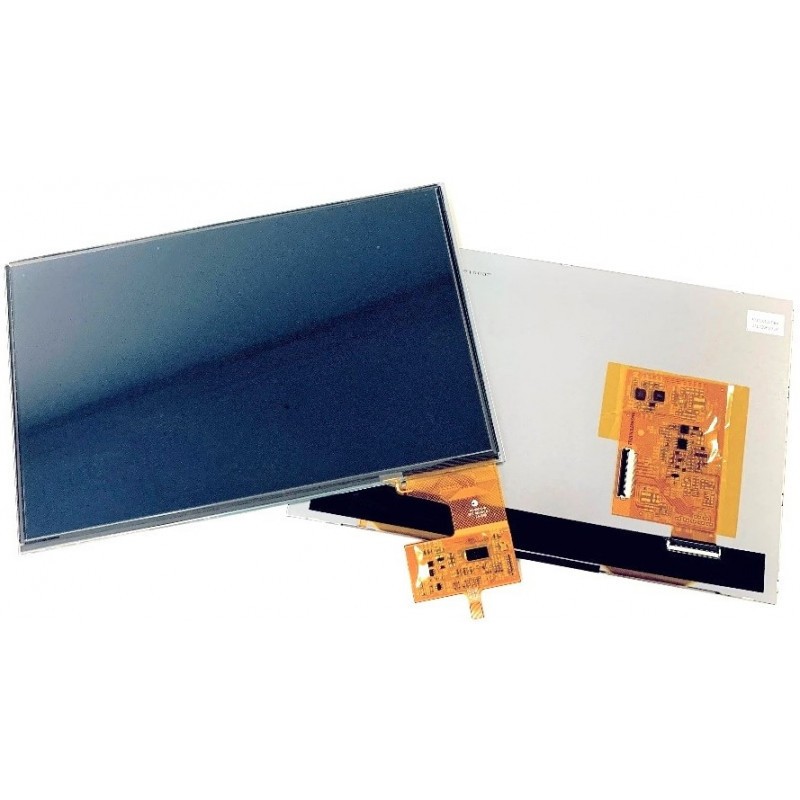

EDT 10.1-inch TFT LCD display featuring IPS technology, high-brightness 950 cd/m² illumination and an integrated NVIS function. The wide viewing performance and enhanced brightness make this display suitable for demanding industrial, defence, avionics and vehicle applications requiring clear day and night-time visibility.
- 10.1-inch IPS TFT LCD
- 950 cd/m² high-brightness display
- NVIS function for night-vision-compatible applications
- Wide viewing angles with consistent colour reproduction
- Designed for professional and industrial display systems
| Manufacturer | EDT (Emerging Display Technologies) |
|---|---|
| Display size | 10.1 inches |
| Display technology | IPS TFT LCD |
| Brightness | 950 cd/m² |
| Special feature | NVIS function |
| Typical applications | Industrial, defence, avionics and in-vehicle systems |
Please refer to the product datasheet for resolution, interface, dimensions, operating conditions and detailed NVIS performance.
EVEM101000VDYW
Data sheet
- Resolution
- 1920 (RGB) x 1200 Resolution
- Active Area (W x H mm)
- 216.57x135.36
- Overall Dia. (W x H x D mm)
- 270.2x179.8x16
- Backlight Brightness
- 950cd/m2
- Backlight Lifetime
- 30K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- eDP 2 Lanes
- Diagonal
- 10.1 inch
- LCD Type
- IPS
- Viewing Direction
- Super Wide View
- Operating Temperature
- -30 to +85 deg. C
- Storage Temperature
- -40 to 85 deg C
- Polarizer Modes
- Transmissive
- Display Controller/Driver IC
- EXC80H60
