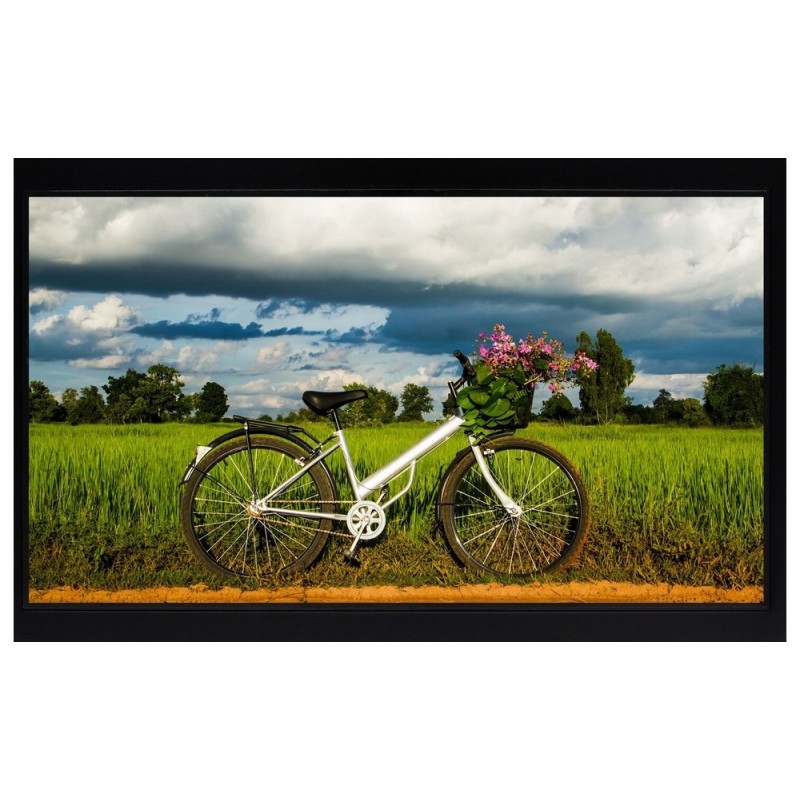

DLC 12.1" Extended Operating Temperature TFT Display, 450 cd/m2, LVDS Interface
DLC 12.1-inch Extended Operating Temperature TFT Display designed for military, industrial, embedded and commercial applications where dependable performance is required across demanding temperature conditions. The panel delivers 450 cd/m² brightness for clear, vibrant images and features an LVDS interface for reliable system integration.
- Manufacturer: DLC
- Display size: 12.1-inch diagonal
- Display technology: TFT LCD
- Brightness: 450 cd/m²
- Signal interface: LVDS
- Temperature rating: Extended operating temperature
- Typical applications: Industrial controls, HMI terminals, instrumentation and embedded display systems
Please confirm mechanical dimensions, resolution, connector configuration and temperature requirements before ordering.
DLC1210HIG
Data sheet
- Resolution
- 800 (RGB) x 600 Resolution
- Active Area (W x H mm)
- 246.00 x 184.50
- Overall Dia. (W x H x D mm)
- 260.50 x 204.00 x 8.40
- Backlight Brightness
- 450 cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- LVDS
- Diagonal
- 12.1 inch
- LCD Type
- a-Si
- Viewing Direction
- 89/89/89/89
- Operating Temperature
- -30 to +85 deg. C
- Storage Temperature
- -30 to +85 deg. C
- Polarizer Modes
- Transmissive
