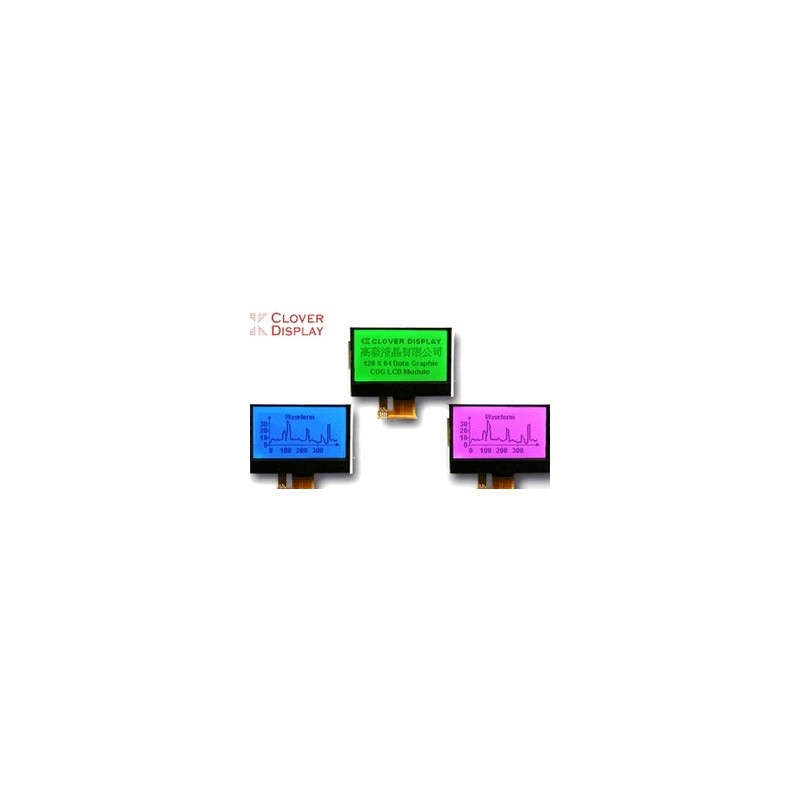

128 x 64 Graphic Module

Data sheet

Resolution

128 x 64 Dots

Active Area (W x H mm)

59.00 x 30.35

Overall Dia. (W x H x D mm)

64.00 x 47.35

Backlight Types

(L)

Interface Mode

8 Bit

Operating Temperature

-20 to 70 deg. C

Storage Temperature

-30 to +80 deg. C

Character Size (mm)

0.40 x 0.40

Assembly Type

COG

Duty Cycle

1/65

Connector

Pin

Display Controller/Driver IC

ST7565P
