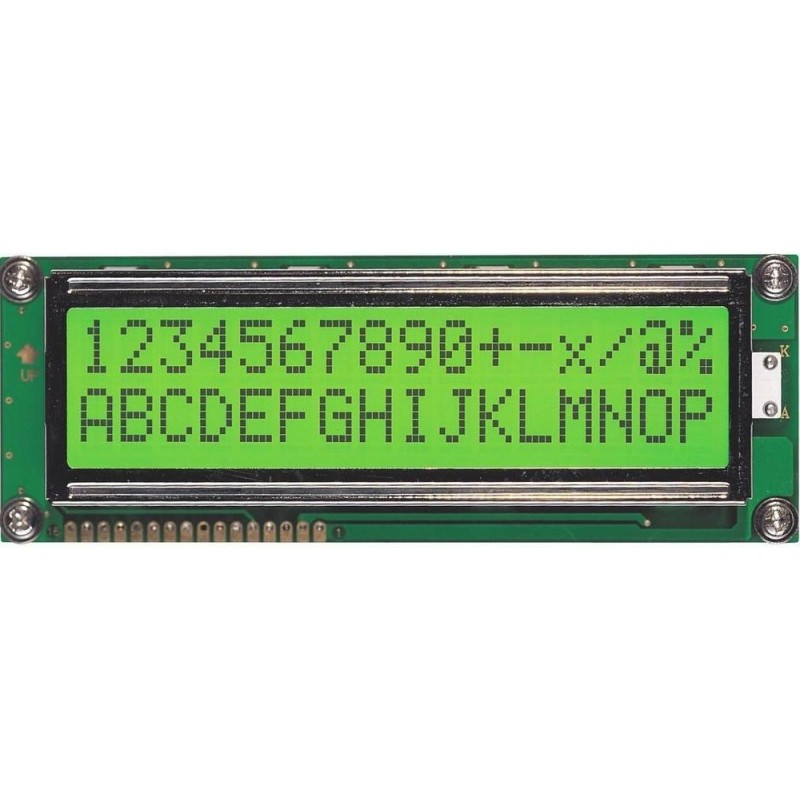

16 x 2 Character Module

Data sheet

Resolution

16 x 2 Character's

Active Area (W x H mm)

43.90 x 10.00

Overall Dia. (W x H x D mm)

48.20 x 21.00

Backlight Types

(L)

Interface Mode

4/8 Bit

Operating Temperature

-20 to 70 deg. C

Storage Temperature

-30 to +80 deg. C

Character Size (mm)

2.24 x 3.55

Assembly Type

COG

Duty Cycle

1/16

Connector

Pin

Display Controller/Driver IC

NT7603
