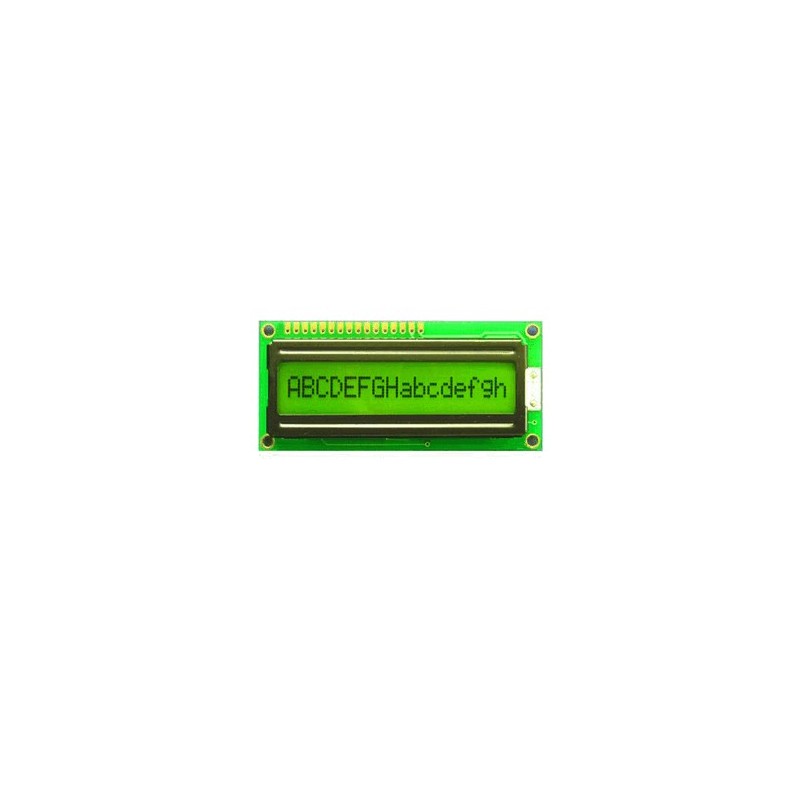

16 x 1 Character Module

Data sheet

Resolution

16 x 2 Character's

Active Area (W x H mm)

62.00 x 13.80

Overall Dia. (W x H x D mm)

80.00 x 30.00

Backlight Types

(L/M/E)

Interface Mode

4/8 Bit

Operating Temperature

-20 to 70 deg. C

Storage Temperature

-30 to +80 deg. C

Character Size (mm)

2.95 x 4.35

Assembly Type

COB

Duty Cycle

1/16

Display Controller/Driver IC

ST7066U
