2.1" Circular Display, 400cd/m2

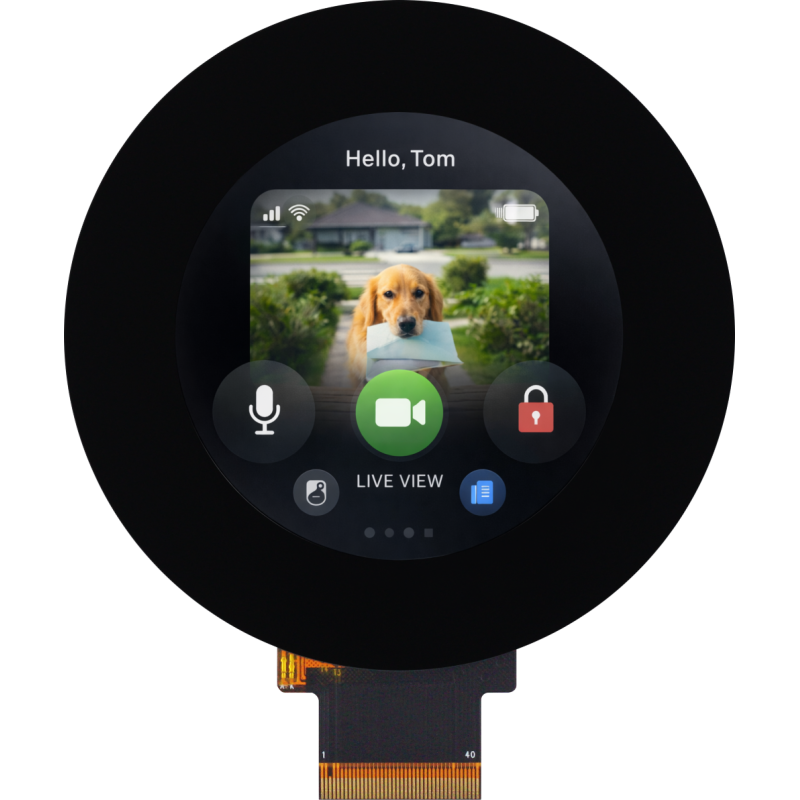

DLC0210ACP04RF-1 is a 2.1-inch circular colour TFT LCD display made by DLC Display Co. It uses an IPS (In-Plane Switching) TFT panel with a transmissive RGB interface, providing wide viewing angles and vibrant colours.
DLC0210ACP04RF-1
Data sheet
- Resolution
- 480 (RGB) x 480 Resolution
- Active Area (W x H mm)
- 222.00 x 132.48
- Overall Dia. (W x H x D mm)
- 237.80 x 156.00 x 8.60
- Backlight Brightness
- 400 cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- RGB
- Diagonal
- 2.1 inch
- LCD Type
- IPS
- Viewing Direction
- ALL
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
