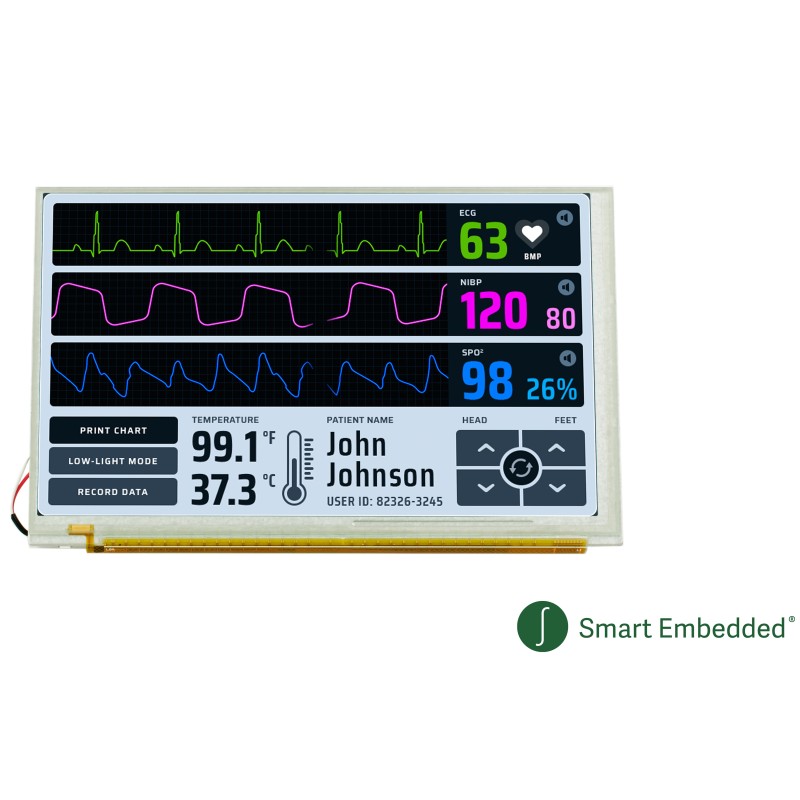

EVK070016B-POE. 7" Smart Embedded TFT Eval Kit, 850nits with CTP
7-inch Evaluation Kit, enable the user to add a modern GUI with high-end graphics and smooth animation to any system without the overhead of memory and power demanding operating system.
Cover Lens-Black
The controller board is integrated with the display as one compact module.
The Graphic framework is based on TouchGFX and FreeRTOS.
The Embedded Display solution is the Clear Choice due to Lower cost of ownership and shorter time to market.
This series of highly integrated modules with Capacitive Touch panel and Integrated Driver board with MCU, Memory, and a number of interfaces.
The MCU used is the STM32F746 series ARM Cortex M7 processors from STMicroelectronics with integrated TFT Controller and a variety of Interface’s.
EVK070016B-POE
Data sheet
- Resolution
- 1024 (RGB) x 600 Resolution
- Active Area (W x H mm)
- 154.21 x 85.92
- Overall Dia. (W x H x D mm)
- 194.40 x 127.44 x 13.70
- Backlight Brightness
- 850 cd/m2
- Backlight Lifetime
- 50K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- SPI, I2C, RS232, RS485, CAN BUS, GPIO
- Diagonal
- 7.00 inch
- LCD Type
- TN
- Viewing Direction
- Super Wide View
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
