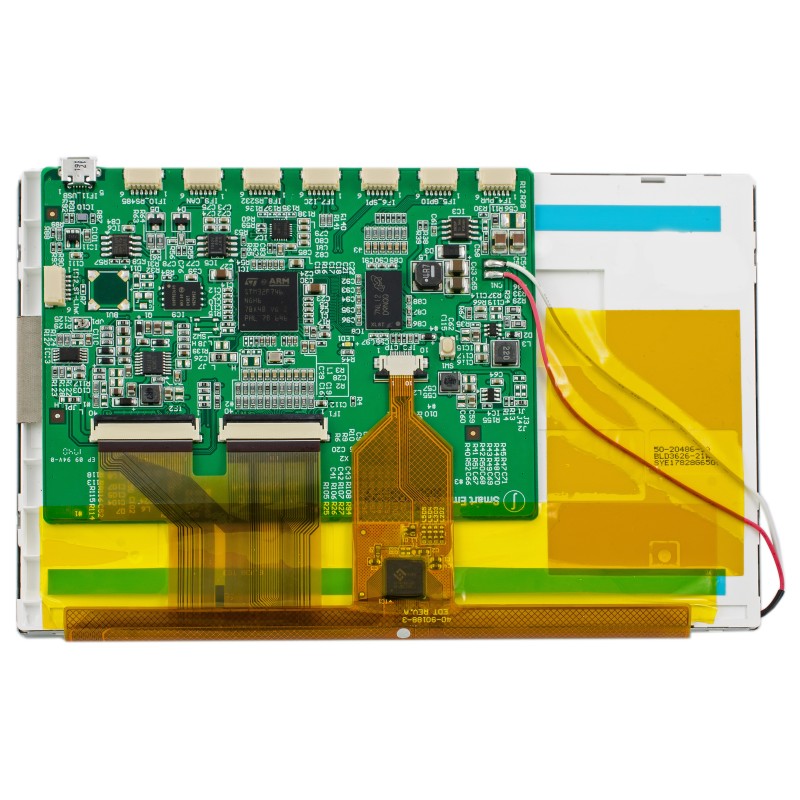

EVK070019AB. 7" Smart Embedded Eval Kit, 290nits with CTP
7-inch Evaluation Kit, incorporating EDT Smart Embedded GUI Module with TouchGFX Software. 290cd/m2; Cover Lens-Black; MCU-STM32F750; Flash-32MB; SDRAM-16MB.
Evaluation Kit Contents:
- Smart Embedded module with integrated neutral oversized cover lens.
- ST-Link to connect Windows PC USB port to upload Smart Embedded module software.
- Interface cables and connectors for the power supply.
- Power Supply will be provided separately.

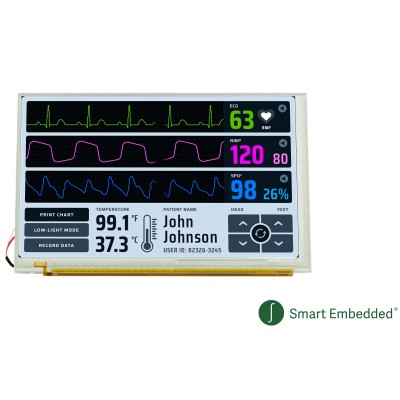

EVK070019AB
Data sheet
- Resolution
- 800 (RGB) x 480 Resolution
- Active Area (W x H mm)
- 154.08 x 85.92
- Overall Dia. (W x H x D mm)
- 194.40 x 127.44 x 13.80
- Backlight Brightness
- 290cd/m2
- Backlight Lifetime
- 30K Hours
- Backlight Types
- LED
- Backlight Colours
- White
- Interface Mode
- SPI, I2C, RS232, RS485, CAN BUS, GPIO
- Diagonal
- 7.00 inch
- LCD Type
- TN
- Viewing Direction
- 6 O'clock
- Operating Temperature
- -20 to 70 deg. C
- Storage Temperature
- -30 to +80 deg. C
- Polarizer Modes
- Transmissive
- Display Controller/Driver IC
- ILI2511
